Coriolis Flow Meter 25mm, Stainless Steel Construction, LCD Display, Pulse, 4-20mA, RS485 Outputs
SKU: BF1001-025Coriolis Flow Meter 25mm
80 - 8000 kg/hr Allowable range *
Mass Measurement Liquid & Gas
Stainless Steel Construction
LCD Display AC & DC options
Description
BF1001 Coriolis Mass Flow Meter 25mm
Measurement of Liquid or Gas
Stainless Steel Construction
Local or remote Back-lit Display, AC & DC options
80 - 8000 kg/hr range *
(* Target range can vary with accuracy option chosen)
This highly Accurate Design of flow meter measures
Mass flow as well as Volumetric flow, Density, Temperature
and even pressure.
Specification
BF1001 Coriolis Mass Flow Meter 25mm
Measurement of Liquid or Gas
Stainless Steel Construction
Local or remote Back-lit Display, AC & DC options
80 - 8000 kg/hr range *
(* Target range can vary with accuracy option chosen)
This highly Accurate Design of flow meter measures,
Mass flow as well as Volumetric flow, Density, Temperature
and even pressure.
BF1001 models have no moving parts and therefore
require minimal upkeep. They can be installed
without flow conditioning or straight pipe runs.
The Coriolis principle operates independently of viscosity and
density to give you unrivalled measurement results on even
the most demanding applications including slurries, Non-Newtonian
liquids, water-cut ratio and corrosive gases.
| DN mm | 25mm |
| Display Type / Temp of Medium | Local Display (-50 to 125C) Remote Display (-50 to 200C) Remote Display / Hi Temp (-50 to 300C) Remote Display / LowTemp (-150 to 125C) |

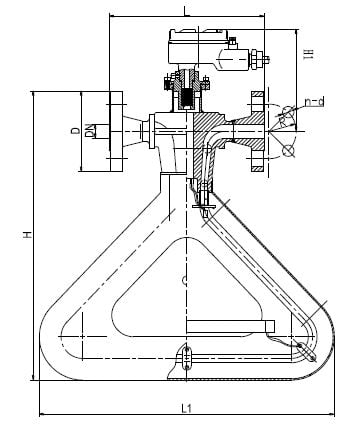

| Sensor Style | Triangular Design |
| Transmitter / Display | DSP - Back-lit model (Remote or locally mounted) |
| Power Supply | 18-30VDC or 18-265VAC - See options |
| Comms | RS485 Mobus RTU |
| Output Signals | 4-20mA (Passive or Active) & Active Pulse Output |
| Accuracy | See options: +/-0.1%, 0.2% or 0.5% |
| Pressure Rating | See options: Max 16, 25, 40 or 63 Bar |
| Materials | 316 Stainless Steel Tubes, 304 Stainless Steel Body |
