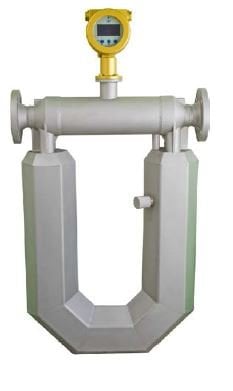

Coriolis Flow Meter 150mm, Stainless Steel Construction, LCD Display, Pulse, 4-20mA, RS485 Outputs
SKU: BF1001-150-Coriolis Flow Meter 150mm
5000 - 500,000 kg/hr Measurable range *
Mass Measurement Liquid & Gas
Stainless Steel Construction
LCD Display AC & DC options
Description
BF1001 Coriolis Mass Flow Meter 150mm
Measurement of Liquid or Gas
Stainless Steel Construction
Local or remote Back-lit Display, AC & DC options
5000 - 500,000 kg/hr measurable range *
(* Target range can vary with accuracy option chosen)
Specification
This highly Accurate Design of flow meter measures
Mass flow as well as Volumetric flow, Density, Temperature
and even pressure.
BF1001 models have no moving parts and therefore
require minimal upkeep. They can can be installed
without flow conditioning or straight pipe runs.
Mass flow as well as Volumetric flow, Density, Temperature
and even pressure.
BF1001 models have no moving parts and therefore
require minimal upkeep. They can can be installed
without flow conditioning or straight pipe runs.
The Coriolis principle operates independently of viscosity and
density to give you unrivalled measurement results on even
the most demanding applications including slurries, Non-Newtonian
liquids, water-cut ratio and corrosive gases.
| DN mm | 150mm |
| Display Type / Temp of Medium | Local Display (-50 to 125C) Remote Display (-50 to 200C) Remote Display / Hi Temp (-50 to 300C) Remote Display / LowTemp (-150 to 125C) |

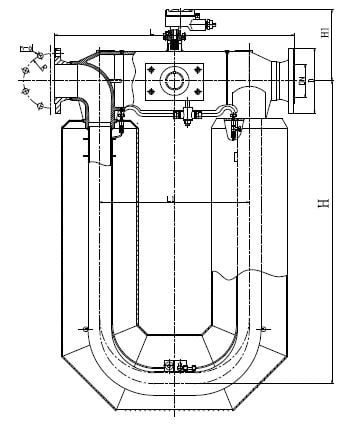

| Sensor Style | U Tube design |
| Transmitter / Display | DSP - Back-lit model (Remote or locally mounted) |
| Power Supply | 18-30VDC or 18-265VAC - See options |
| Comms | RS485 Mobus RTU |
| Output Signals | 4-20mA (Passive or Active) & Active Pulse Output |
| Accuracy | See options: +/-0.1%, 0.2% or 0.5% |
| Pressure Rating | See options: Max 16, 25, 40 or 63 Bar |
| Materials | 316 Stainless Steel Tubes, 304 Stainless Steel Body |
