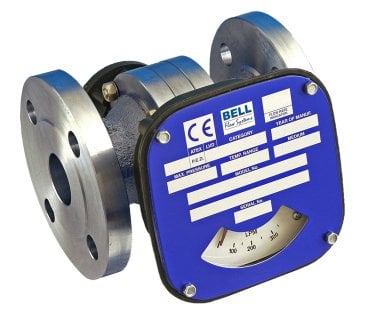

Aluminium Flow Rate Indicator/Switch - 3" to 8"

Aluminium Flow Rate Indicator/Switch - 3" to 8"

SKU: FS.AL.L1
Aluminium Flow Rate Indicator/Switch - Large
Low Pressure Model 300 psi / 20 bar maximum
Aluminium Body
Maximum Scale Read-Out (3") 0-1500 LPM.
Maximum Scale Read-Out (4") 0-2000 LPM.
Maximum Scale Read-Out (6") 0-3500 LPM.
Maximum Scale Read-Out (8") 0-5000 LPM.
(Specify at time of order - see options)
  • SCALE
  • MATERIAL
  • PRESSURE RATING
  • INDICATOR READ OUT
  • PORT CONNECTIONS
  • O RING SEAL MATERIAL
  • FLOW DIRECTION
  • £1731.04
  • £2077.25 inc VAT


Description



Aluminium Flow Rate Indicator/Switch - Large
Low Pressure Model 300 psi / 20 bar maximum
Aluminium Body
Maximum Scale Read-Out (3") 0-1500 LPM.
Maximum Scale Read-Out (4") 0-2000 LPM.
Maximum Scale Read-Out (6") 0-3500 LPM.
Maximum Scale Read-Out (8") 0-5000 LPM.
(Specify at time of order - see options)

Specification


    Aluminium bodied flow monitor/switch with a scaled dial and mechanical indicator,
    Continuously displays your real time flow rate,
    Whilst optional field adjustable electrical switches can be used to indicate when a specified flow rate has been reached (increasing or decreasing)
    Suitable for mounting in any orientation,
    Doesn't require any straight lengths of pipe before or after the installation.

    Flow Monitor/Switch - Aluminium
    Low Pressure Model 300 psi / 20 bar maximum
    Aluminium Body
    Maximum Scale Read-Out (3") 0-1500 LPM.
    Maximum Scale Read-Out (4") 0-2000 LPM.
    Maximum Scale Read-Out (6") 0-3500 LPM.
    Maximum Scale Read-Out (8") 0-5000 LPM.
    (Specify at time of order - see options)
    Mechanical indicator (additional outputs available, see options)
    Units in litres per minute as standard, unless specified in options]
