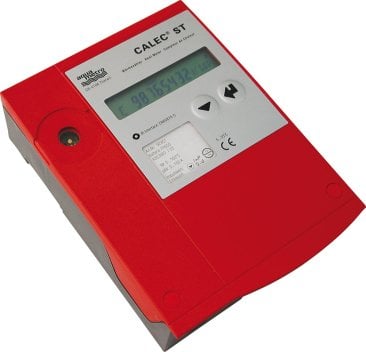

Heat Meter Integrator :: CALEC ST, LCD Display, Modbus RTU output

Heat Meter Integrator :: CALEC ST, LCD Display, Modbus RTU output

SKU: CALEC ST MOD
CALEC ST MOD :: MID Class 2 Heat Meter Integrator,
Pulse input PT500 Probes & Pockets, 230V AC
(We can supply this item with any size flow meter)
  • £655.60
  • £786.72 inc VAT


Description



CALEC ST MOD

Heat Meter Integrator, Pulse input
LCD Display in kW / mW
full menu of current and stored heat usage data
2x 3m PT500 Probes & Pockets inluded
230V AC Supply
DIN Rail &/or Wall Mount Case


(We can supply this item with any size flow meter, call for a quote)

Specification


    CALEC ST MOD

    Heat Meter Integrator, Pulse input
    LCD Display in kW / mW
    full menu of current and stored heat usage data
    2x 3m PT500 Probes & Pockets inluded
    230V AC Supply
    DIN Rail &/or Wall Mount Case

    RS485 MODBUS RTU ouput
    MID Class 2 Accuracy (installation dependent)
    RHI compliant ~ Call us for matching metering unit
    Top quality heat and cooling meters for heating,
    air-conditioning, cooling and solar energy plants can
    be realised with the CALEC ST energy calculator.
    The modular unit distinguishes itself by its long-term
    stability. Flexible communications makes it particularly
     interesting for integration into building management systems.

    Characteristics :: (Some options are priced extra)
    •  Precise measurement of thermal energy for heating,
    •   cooling and combined heating/cooling plants
    • Interfaces to building control systems: M-Bus, LON, Modbus, N2Open
    • Plug-in calculator module
    • Data for standard cooling media with variable properties
    • Integrated power supply for flow sensor
    •  Up to 2 pulse in-/outputs or 2 analogue outputs
    • Metrological approval in accordance with
        2004/22/EC (MID) and PTB K7.2 (cold, heat/cold
        combined)


    Customer advantages::

    • Precise energy measurement for all thermal applications
        in buildings engineering
    •  Measurement of "heating and cooling" in a single unit
    •  Use in cooling and solar heating systems
    • Choice of power supplies
    • Re-calibration saves process costs
    • Supports operation monitoring
    • Expandable on modular basis
    • Optimum LON system integration
    • Added logistical value thanks to optional on-site programming
        of pulse value and installation site of flow
        sensor (INIT mode)



    (We can supply this item with any size flow meter, call for a quote)
