SDI Insertion Flow Meter range

Insertion Flow sensor SDI

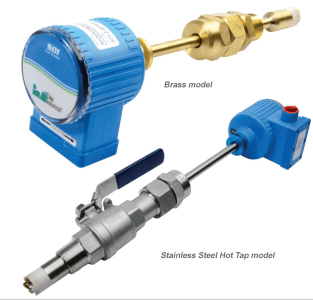

for corrosive and non-corrosive liquids :: Three Types, Brass - Stainless Steel - PVC

The Impeller SDI series flow sensor offers unparalleled performance for liquid flow measurement in closed pipe systems. The impeller flow sensor is well suited for flow control, flow monitoring and batch type applications. The flow meter can be mounted in pipe sizes of 1,5" up to 48". This sensor can be used for water applications or as stainless steel version for corrosive fluids at high temperatures and pressure rates.

Battery Powered models

FEATURES

• Bi-directional measurements possible
• Very good price/performance ratio
• 1,5" up to 36"
• Large temperature range and pressure rates

Suitable Medium:
Water, Pharmaceuticals, low viscosity chemicals

Max. flow:
from 12 up to 300000 l/min

Temperature Range:
from 0 up to 150 °C

Max Pressure:
from 0 up to 68 bar

Typical Applications:
Water & waste water industry, HVAC, Building Automation, Chemical Processing, General Industry

Items: 13 of 3
Drop items here to shop
Product has been added
  • SDI Series Insertion Flow Meter, Choice of Materials and options
    SDI Series Insertion Flow Meter, Choice of Materials and options
    SKU: 8SDI
    SDi Series Insertion Flow Meter - Single Direction
    Optimum Measuring range 0.3 - 6.1 m/s
    Pulse & 4-20mA Ouput options
    LCD Flow Display Options
    8-35V DC Supply or Battery Powered option
    Materials ~ See Options
    High Temp & Hot Tap versions
    $2080.28
    $2496.33 inc VAT
  • SDI Series Insertion Flow Meter, Choice of Materials and options
    SDI Series Insertion Flow Meter, Choice of Materials and options
    SKU: 8SDI-BI
    SDi Series Insertion Flow Meter - Bi-Directional
    Optimum Measuring range 0.3 - 6.1 m/s
    Pulse & 4-20mA Ouput options
    LCD Flow Display Options
    8-35V DC Supply or Battery Powered option
    Materials ~ See Options
    High Temp & Hot Tap versions
    $5038.13
    $6045.75 inc VAT
  • SDI Series Insertion Flow Meter, Choice of Materials and options
    SDI Series Insertion Flow Meter, Choice of Materials and options
    SKU: 8SDI-BATT
    SDi Series Insertion Flow Meter - Single Direction
    Battery Powered Version
    Optimum Measuring range 0.3 - 6.1 m/s
    Pulse Ouput option
    LCD Flow Display Options
    Battery Powered
    Materials ~ See Options
    High Temp & Hot Tap versions
    $2664.56
    $3197.48 inc VAT
