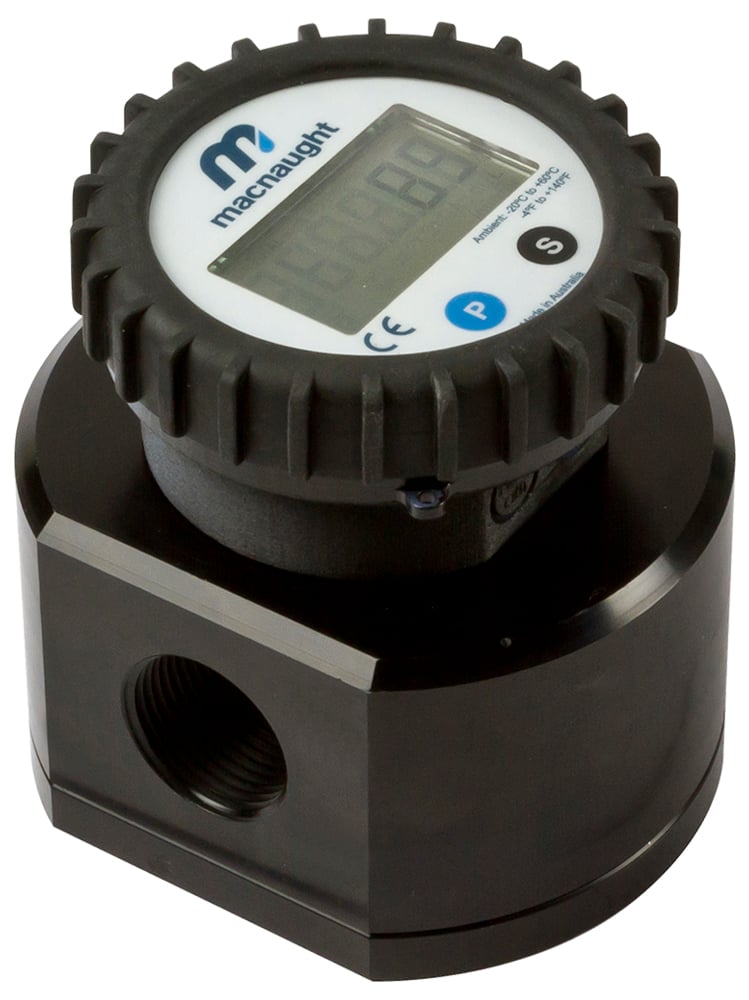

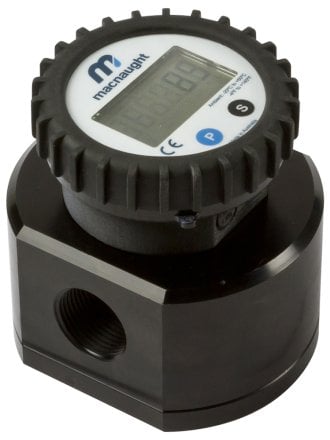

MX25F Fuel and Oil Flow Meter :: 1" Ports, 6 - 120 L/Min, 138bar (2000psi)
SKU: MX25FMX25F Fuel and Oil Flow Meter
Aluminium Body, Viton Seal
1" Ports
6 - 120 L/min, 138 bar (2000psi)
Rugged Design suitable for a variety of liquid measurement tasks
Aluminium Body, Viton Seal
1" Ports
6 - 120 L/min, 138 bar (2000psi)
Rugged Design suitable for a variety of liquid measurement tasks
Description
MX25F Fuel and Oil Flow Meter
Aluminium Body, Viton Seal
1" Ports
6 - 120 L/min, 138 bar (2000psi)
Rugged Design suitable for a variety of liquid measurement tasks
Aluminium Body, Viton Seal
1" Ports
6 - 120 L/min, 138 bar (2000psi)
Rugged Design suitable for a variety of liquid measurement tasks
Oval gear flowmeters are ideally suited to applications requiring accurate dispense quantities. Measurement of very low flow rates, pulsating flow, small batch sizes, viscous products, and non-conductive liquids are all ideal uses for oval gear meters. Because these meters don't require flow conditioning, no straight piping runs are required, so they can be used in installations where space is limited without affecting performance.
Applications:
• Service and Fueling Trucks
• Fuel Depots
• Portable Fueling Systems
• Bio-Diesel Blending and Production
• Lubricant Blending and Dispensing
• Hydraulic Fluid Dispensing
and test stands
• Boiler and generator fuel consumption
• Fuel consumption for mining, construction,
• Fuel Depots
• Portable Fueling Systems
• Bio-Diesel Blending and Production
• Lubricant Blending and Dispensing
• Hydraulic Fluid Dispensing
and test stands
• Boiler and generator fuel consumption
• Fuel consumption for mining, construction,
and military vehicles
• Bitumen/ Asphalt production
• Bitumen/ Asphalt production
Specification
MX25F Fuel and Oil Flow Meter
Aluminium Body, Viton Seal
1" Ports
6 - 120 L/min, 138 bar (2000psi)
Rugged Design suitable for a variety of liquid measurement tasks
Aluminium Body, Viton Seal
1" Ports
6 - 120 L/min, 138 bar (2000psi)
Rugged Design suitable for a variety of liquid measurement tasks
Versatile 1" Oval gear flow meter designed for a broad range of Industrial Fuel & Oil applications.
The Oval gear measurement principle offers extremely high accuracyon both low and high viscosity
fluids. Macnaughts' Internationally accredited calibration laboratory guarantees traceable test results
for every meter manufactured.
The Oval gear measurement principle offers extremely high accuracyon both low and high viscosity
fluids. Macnaughts' Internationally accredited calibration laboratory guarantees traceable test results
for every meter manufactured.
Aluminium construction
Viton Seal
Max flow rate 120 L/min / 32 GPM
Temperatures up to 80C
Accuracy +/- 0.5%
Repeatability +/- 0.03%
Available with BSP or NPT Process connections
Variety of output modules and local / remote flow displays available
Hazardous area version available
