MX100S Solvent Flow Meter :: 4" Ports, 120 - 1200 L/Min, 12bar (175psi)
SKU: MX100SMX100S Solvent Flow Meter
Aluminium Body, FEP Seal
4" Ports
120 - 1200 L/min
12 bar (175psi)
Rugged Design suitable for a variety of liquid measurement tasks
Aluminium Body, FEP Seal
4" Ports
120 - 1200 L/min
12 bar (175psi)
Rugged Design suitable for a variety of liquid measurement tasks
Description
MX100S Solvent Flow Meter
Aluminium Body, FEP Seal
4" Ports
120 - 1200 L/min
12 bar (175psi)
Rugged Design suitable for a variety of liquid measurement tasks
Aluminium Body, FEP Seal
4" Ports
120 - 1200 L/min
12 bar (175psi)
Rugged Design suitable for a variety of liquid measurement tasks
Oval gear flowmeters are ideally suited to applications requiring accurate dispense quantities. Measurement of very low flow rates, pulsating flow, small batch sizes, viscous products, and non-conductive liquids are all ideal uses for oval gear meters. Because these meters don't require flow conditioning, straight piping runs are not required, so they can be used in installations where space is limited without affecting performance.
Applications:
• Industrial paints and coatings
• Ink blending & dispensing
• Sealants & adhesives manufacturing
• Agrochemical production, Pesticide Metering
• Cleaning chemical manufacturing & production
• High Temperature fuel oil measurement for industrial
and marine applications
• Chemical Batch control

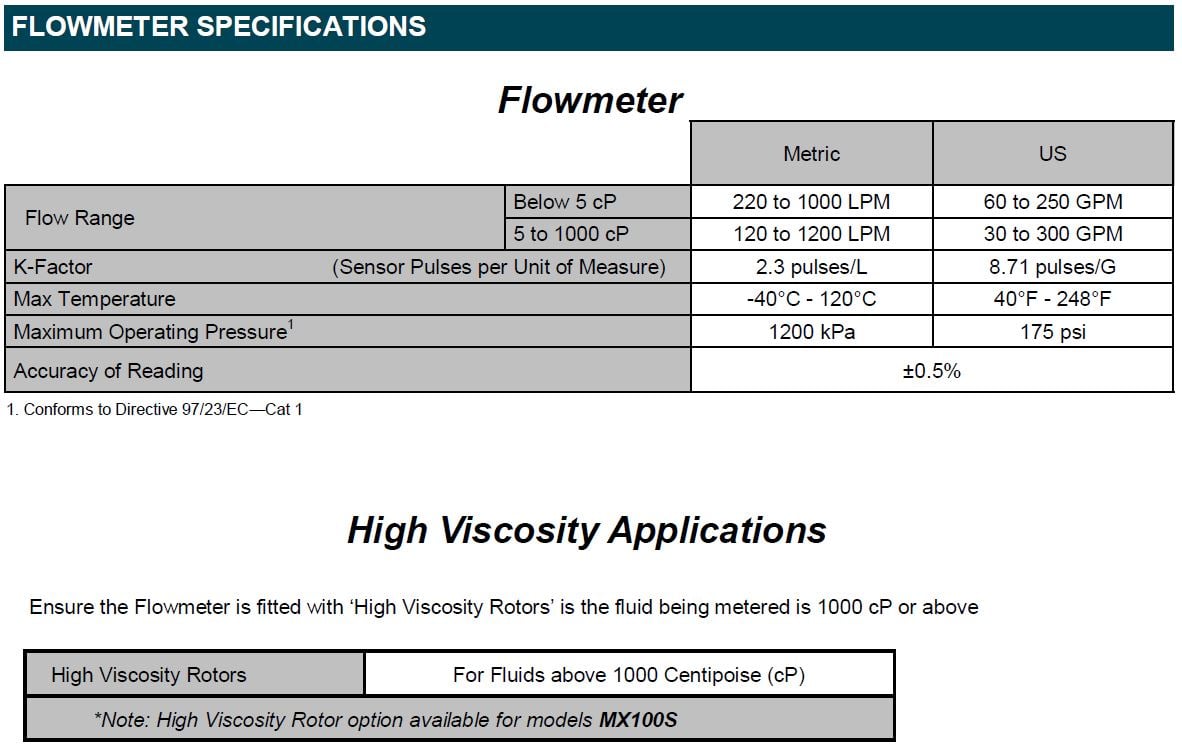

Specification
MX100S Solvent Flow Meter
Aluminium Body, FEP Seal
4" Ports
120 - 1200 L/min
12 bar (175psi)
Rugged Design suitable for a variety of liquid measurement tasks
Aluminium Body, FEP Seal
4" Ports
120 - 1200 L/min
12 bar (175psi)
Rugged Design suitable for a variety of liquid measurement tasks
Versatile 4" Oval gear flow meter designed for a broad range of Industrial applications.
The Oval gear measurement principle offers extremely high accuracyon both low and high viscosity
fluids. Macnaughts' Internationally accredited calibration laboratory guarantees traceable test results
for every meter manufactured.
The Oval gear measurement principle offers extremely high accuracyon both low and high viscosity
fluids. Macnaughts' Internationally accredited calibration laboratory guarantees traceable test results
for every meter manufactured.
Aluminium construction
FEP seals
Max flow rate 1200 L/min / 317 GPM
Temperatures up to 120C
Accuracy +/- 0.5%
Repeatability +/- 0.03%
Available with BSP or NPT Process connections as well as flanged options
Variety of output modules and local / remote flow displays available
