RCDL Nutating Disc Meters

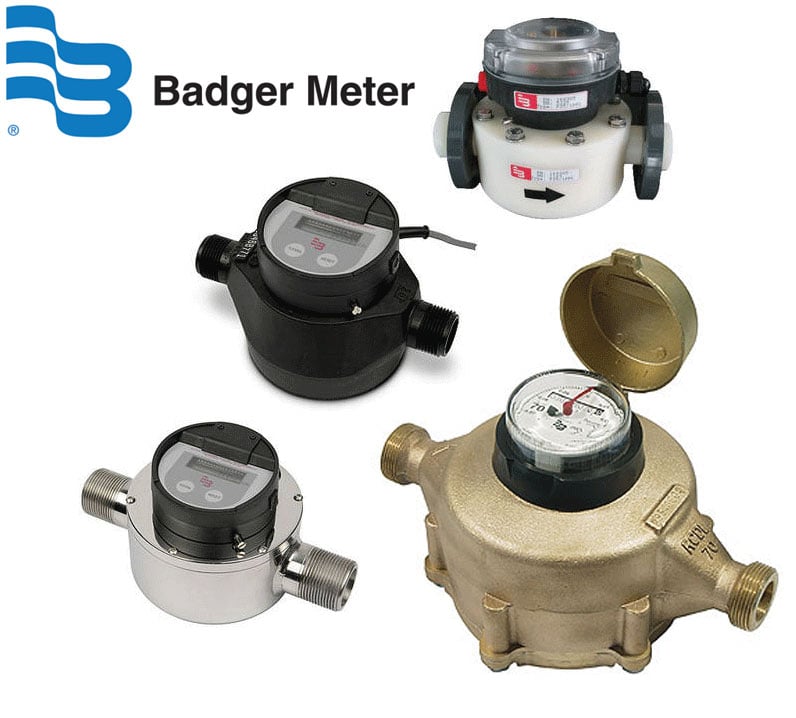

Badger Meter RCDL Disc Flow Meters, Positive Displacement - Nutating Disc range
The RCDL Disc Flow Meter combines the accuracy of positive displacement design with the reliability and economy of nutating disc technology. Models are well suited for measuring the flow of water and other fluids, hot or cold, this meter can be combined with most
Badger® mechanical and electronic accessories for applications including batching and inventory control.
Typical Applications:
♦ Inventory and process control of cold and hot water, oils, fuels, alcohols, HVAC,
♦ condensate return, boiler feed, additive dispensing, and fuel consumption.
Sort by:Recommended
![RCDL Nutating Disc Flow Meter M25 :: DN15 or DN20, 1 - 100 LPM, 16 BAR]()
RCDL Nutating Disc Flow Meter M25 :: DN15 or DN20, 1 - 100 LPM, 16 BAR
SKU: RCDL M25RCDL Nutating Disc Flow Meter M25 :: DN15 or DN20
Nylon(PPO), Bronze or Stainless Steel Body
Flow: 1 - 100 LPMMax Pressure: 16 Bar
Connections: 3/4" OR 1" BSPMOutputs and Registers (See options)£255.85
£307.02 inc VAT![RCDL Nutating Disc Flow Meter M35 :: DN20, 2 - 132 LPM, 16 BAR]()
RCDL Nutating Disc Flow Meter M35 :: DN20, 2 - 132 LPM, 16 BAR
SKU: RCDL M35RCDL Nutating Disc Flow Meter M35 :: DN20
Bronze Body
Flow: 2 - 132 LPMMax Pressure: 16 Bar
Connections: 1" BSPMOutputs and Registers (See options)£446.22
£535.46 inc VAT![RCDL Nutating Disc Flow Meter M70 :: DN25, 4 - 265 LPM, 16 BAR]()
RCDL Nutating Disc Flow Meter M70 :: DN25, 4 - 265 LPM, 16 BAR
SKU: RCDL M70RCDL Nutating Disc Flow Meter M70 :: DN25
Bronze BodyFlow: 4 - 265 LPMMax Pressure: 16 Bar
Connections: 1 1/4" BSPMOutputs and Registers (See options)£474.11
£568.93 inc VAT![RCDL Nutating Disc Flow Meter M120 :: DN40, 8 - 454 LPM, 16 BAR]()
RCDL Nutating Disc Flow Meter M120 :: DN40, 8 - 454 LPM, 16 BAR
SKU: RCDL M120RCDL Nutating Disc Flow Meter M120 :: DN40
Bronze BodyFlow: 8 - 454 LPMMax Pressure: 16 Bar
Connections: 1 1/2" NPTOutputs and Registers (See options)£900.92
£1081.10 inc VAT![RCDL Nutating Disc Flow Meter M170 :: DN50, 8 - 643 LPM, 16 BAR]()
RCDL Nutating Disc Flow Meter M170 :: DN50, 8 - 643 LPM, 16 BAR
SKU: RCDL M170RCDL Nutating Disc Flow Meter M170 :: DN50
Bronze BodyFlow: 8 - 643 LPMMax Pressure: 16 Bar
Connections: 2" NPTOutputs and Registers (See options)£1012.48
£1214.98 inc VAT
