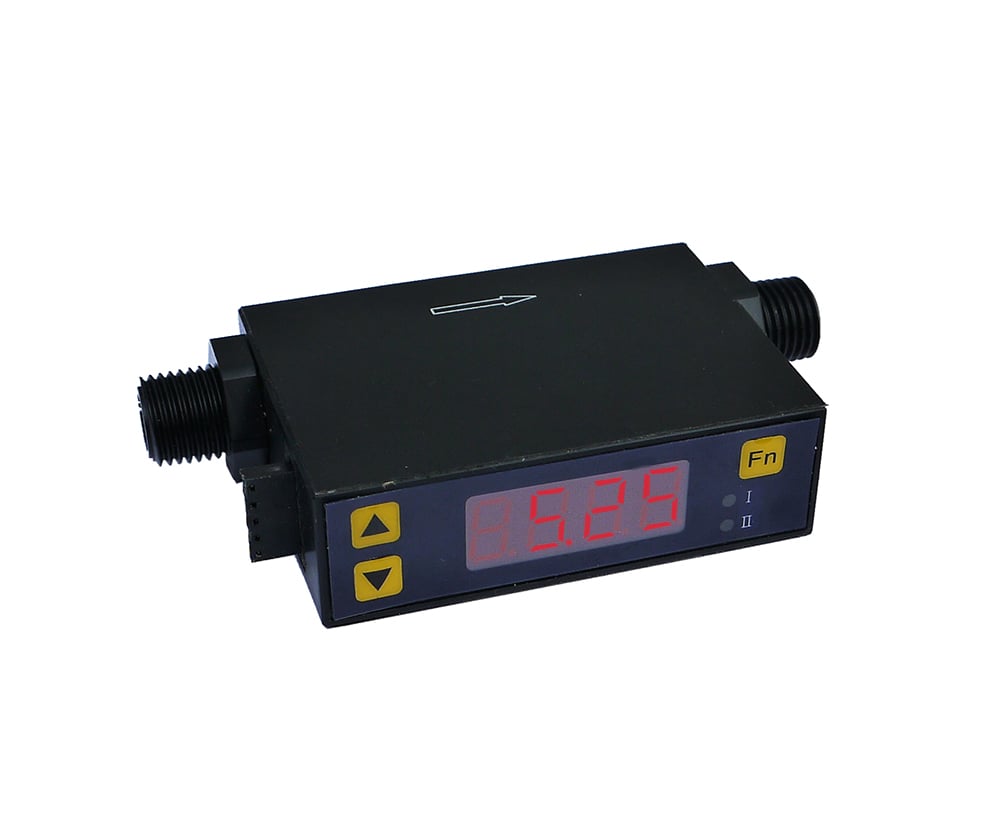

Low Flow Gas Meter:: DN8 , 0 - 10,20,30,40,50 SLPM

Low Flow Gas Meter:: DN8 , 0 - 10,20,30,40,50 SLPM

SKU: MF4008
Low Flow Gas Meter:: DN8 , 0 - 10,20,30,40,50 SLPM
Thermal Mass Flow Measurement,
Digital Display,
RS232, RS485 and Analog (0.5 - 4.5vDC) output options available
  • Range
  • Connection
  • Output
  • Gas
  • £247.50
  • £297.00 inc VAT


Description


Low Flow Gas Meter:: DN8 , 0 - 10,20,30,40,50 SLPM

Thermal Mass Flow Measurement, Digital Display
Application:: Process Gas Control ,Environmental Samplers etc.
Connection :: BSPT /NPT/ Metric Push Fit







Specification


    Features ::
    • Range 0 to 10, 20, 30, 40 or 50 SLPM
    • Compact Design, Can be Manifold Mounted
    • Power Supply , 8 - 18 Vdc , 100mA Max Pressure 0.5MPa ,
    • Temperature Range -10 to +55 deg C
    • Accuracy +/- 1.5 % ( Within Stated Flow Range)
    • Outputs Analog 0.5 to 4.5 vDC ; RS232 ; RS485
    • Selectable Response Time ; 50,100,500,1000 ms Keyboard , 3 Keys
    • Calibration on Air @20 deg C,101.325kPa
    • Pressure Drop 100 Pa
    • Automatic Temperature and Pressure Compensation
