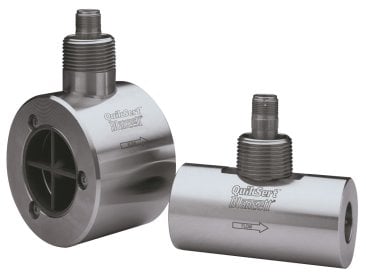

Blancett QuickSert Liquid Turbine Meter :: 2" Line Size
SKU: B1322" Line Size
6 Flow Ranges: 2.8 – 1514 l/min (0.75 – 400 USGal/min)
Bore sizes from 1/2" to 2"
Wafer style in between flange connections
316L Stainless Steel construction
Accuracy: ±1% (above upper 70% of range fo 3/4" and smaller
Description
Blancett QuickSert Liquid Turbine Meter :: 2" Line Size
2" Line Size
6 Flow Ranges: 2.8 – 1514 l/min (0.75 – 400 USGal/min)
Bore sizes from 1/2" to 2"Wafer style in between flange connections
316L Stainless Steel construction
Accuracy: ±1% (above upper 70% of range fo 3/4" and smaller)
Maximum Pressure limited by flanges
-101 to 177°C Temperature range (232°C with High-Temp Pickup)
2.5” (63.5mm) end to end length
6 Bore Sizes, 1/2" up to 2" , wth different flow ranges.
- Includes Standard Magnetic pickup
- Optional Display and outputs available
- Optional model for Hazardous locations
Features
- Unique Between-the-flange design elimnates need for mating flanges
- Ideal for applications with limited space
- Superior materials of construction for high performance in agressive environments
Materials
- 316L Stainless Steel body and internal wetted parts
- Tungsten carbide bearings
- CD4MCU stainless steel turbine
- Tungsten carbide shaft
B3000 Flow Monitor
- Displays Flow rate and Total

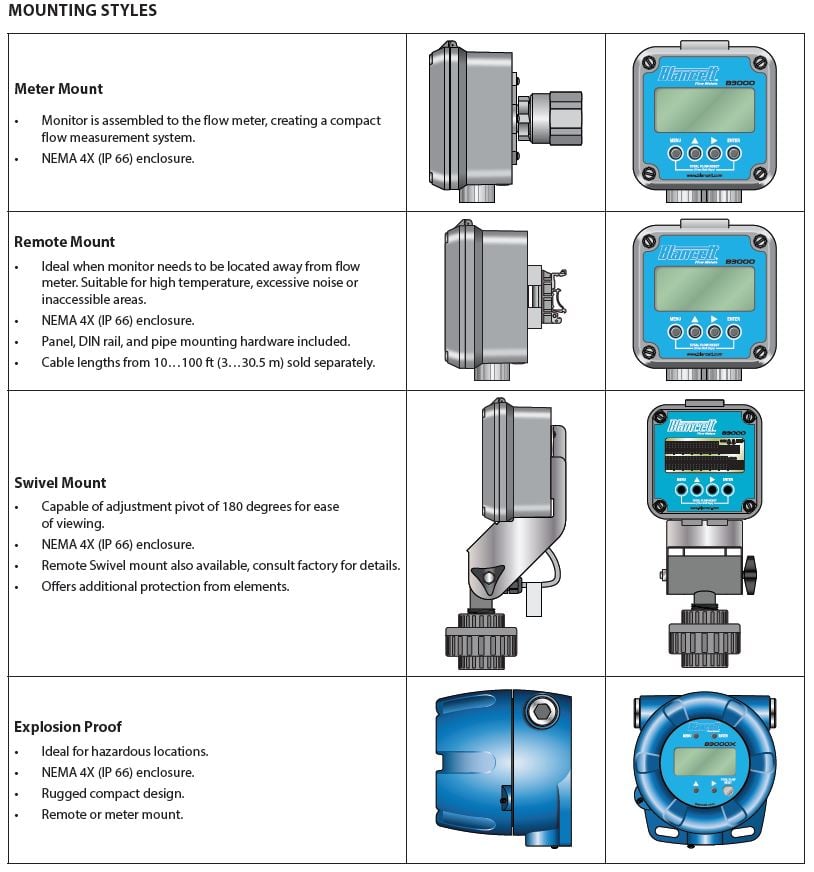

- Meter Mount, Remote Mount and Swivel Mount options
- Totalising Pulse and 4-20mA outputs
- Choice of engineering units
Advanced Model
- Battery and Loop Powered
- Modbus RS485 Communication
Base Model
- Battery and Loop Powered
Solar Model
- Solar Powered
Specification

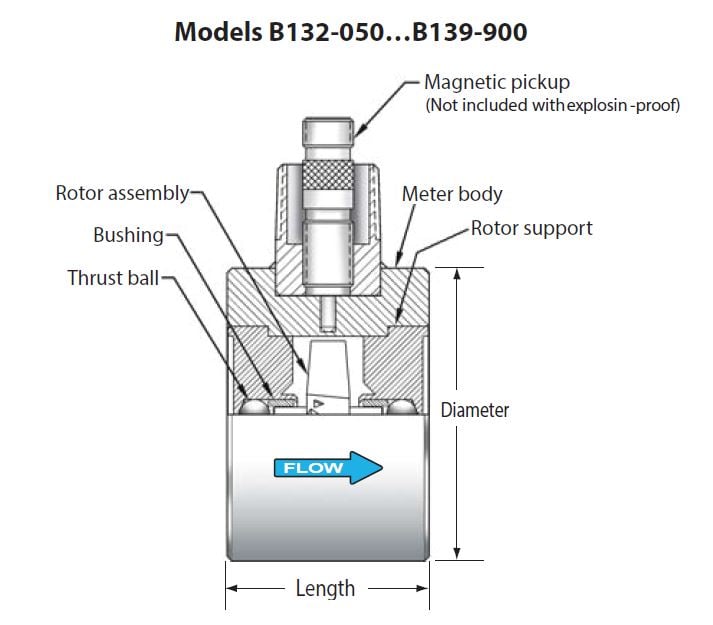

Dimensions
Diameter: 3.62"
Length: 2.5"
B3000 Flow Monitor
