Quantometer Gas Flow Meter

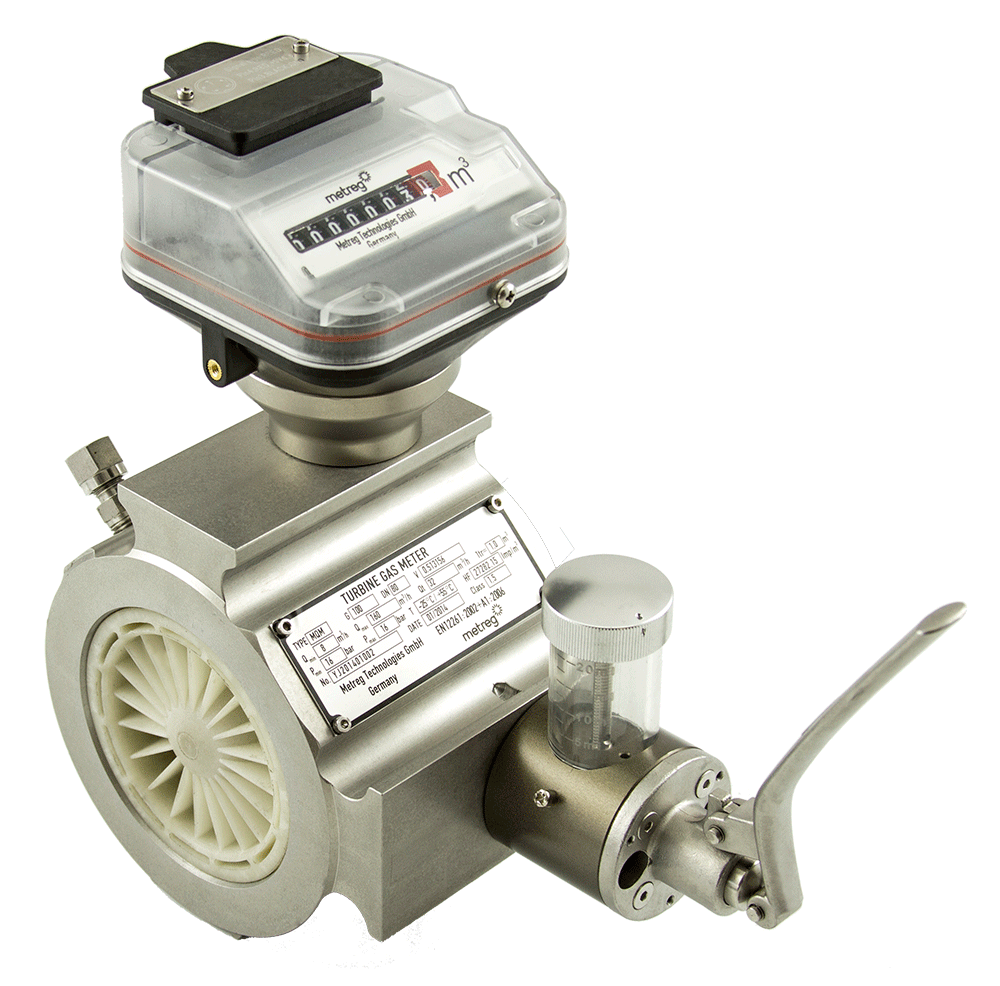

Gas Quantometer Flow Meters :: Wafer style

The MQM Gas Quantometer range is designed for non fiscal or in-plant gas metering of natural gas and approved according the European guidelines of 97/23/EG. The MQM Quantometer is suitable to be installed in a hazardous area of Category 2 (Zone 1) II 2 G c IIC T4 X.

The MQM Quantometer is a volume gas flow meter. The flow of the gas to be measured causes the turbine rotor to rotate. The gas flow is narrowed on an annular cross section, is accelerated and directed onto the smooth-running Aluminum rotor. The number of rotations is proportional to the measured gas volume; the frequency of rotations is proportional to the actual gas flow. The rotation of the rotor is connected to a speedreducing gear train and transmitted via a magnetic coupling from the gas pressurized area to the adjustable 8 digit roller counter in the atmospheric environment.

The lifetime durability of the MQM Quantometer is very stable due to the large dimensioned high precision ball bearings “Made in Germany” along with the high precision machining of the body and all moving parts. All MQM Quantometers are equipped with machined aluminum turbine wheels. After machining all aluminum parts, especially the turbine wheel, are hard anodized for reduced friction and higher resistance to mechanical wear and tear or chemical attack. In case of contamination or dust in the measured gas it is recommended to install an optional oil lubrication pump for increased operating life. During installation and commissioing a temporary Top Hat or Cone filter should be installed to prevent meter damage.

from

Clear all

Sort by:Recommended

TBQS - Gas Quantometer Flow Meter :: DN25, G10
SKU: TBQS-G10-DN25-1"BSP
Nominal Size: DN25
Meter Size: G10
Connections: Threaded Rp 1" BSP Female
Max Operating Pressure: 20 Bar Max (Dependent on connections)
Measuring range: 2 - 16 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1126.89
£1352.27 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN25, G16
SKU: TBQS-G16-DN25-1"BSP
Nominal Size: DN25
Meter Size: G16
Connections: Threaded Rp 1" BSP Female
Max Operating Pressure: 20 Bar Max (Dependent on connections)
Measuring range: 2.5 - 25 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1126.89
£1352.27 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN25, G25
SKU: TBQS-G25-DN25-1"BSP
Nominal Size: DN25
Meter Size: G25
Connections: Threaded Rp 1" BSP Female
Max Operating Pressure: 20 Bar Max (Dependent on connections)
Measuring range: 4 - 40 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1126.89
£1352.27 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN25, G10
SKU: TBQS-G10-DN25-PN16
Nominal Size: DN25
Meter Size: G10
Nominal Size: DN25, 1" PN16 Flanged
Measuring range: 2 - 16 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1126.89
£1352.27 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN25, G16
SKU: TBQS-G16-DN25-PN16
Nominal Size: DN25
Meter Size: G16
Nominal Size: DN25, 1" PN16 Flanged
Measuring range: 2.5 - 25 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1126.89
£1352.27 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN25, G25
SKU: TBQS-G25-DN25-PN16
Nominal Size: DN25
Meter Size: G25
Nominal Size: DN25, 1" PN16 Flanged
Max Operating Pressure: 20 Bar Max (Dependent on connections)
Measuring range: 4 - 40 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1186.83
£1424.20 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN40, G25
SKU: TBQS-G25-DN40-1.1/2"BSP
Nominal Size: DN40
Meter Size: G25
Nominal Size: DN40-1.1/2"BSP
Max Operating Pressure: 20 Bar Max (Dependent on connections)
Measuring range: 4 - 40 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1186.83
£1424.20 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN40, G40
SKU: TBQS-G40-DN40-1.1/2"BSP
Nominal Size: DN40
Meter Size: G40
Connections: DN40-1.1/2"BSP
Max Operating Pressure: 20 Bar Max (Dependent on connections)
Measuring range: 6.5 - 65 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1186.83
£1424.20 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN50, G40
SKU: TBQS-G40-DN50-PN16
Nominal Size: DN50
Meter Size: G40
Connections: Wafer Design
Max Operating Pressure: 20 Bar Max (Dependent on connections)
Measuring range: 6.5 - 65 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1186.83
£1424.20 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN50, G65
SKU: TBQS-G65-DN50-PN16
Nominal Size: DN50
Meter Size: G65
Connections: Wafer Design
Max Operating Pressure: 20 Bar Max (Dependent on connections)
Measuring range: 10 - 100 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1186.83
£1424.20 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN65, G100
SKU: TBQS-G100-DN65-PN16
Nominal Size: DN65
Meter Size: G100
Connections: Wafer Design
Max Operating Pressure: 20 Bar (Dependent on connections)
Measuring range: 8 - 160 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3
£1318.70
£1582.44 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN65, G160
SKU: TBQS-G160-DN65-PN16
Nominal Size: DN65
Meter Size: G160
Connections: Wafer Design
Max Operating Pressure: 20 Bar (Dependent on connections)
Measuring range: 12.5 - 250 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3
£1318.70
£1582.44 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN80, G100
SKU: TBQS-G100-DN80-PN16
Nominal Size: DN80
Meter Size: G100
Connections: Wafer Design
Max Operating Pressure: 20 Bar (Dependent on connections)
Measuring range: 8 - 160 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3
£1318.70
£1582.44 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN80, G160
SKU: TBQS-G160-DN80-PN16
Nominal Size: DN80
Meter Size: G160
Connections: Wafer Design
Max Operating Pressure: 20 Bar (Dependent on connections)
Measuring range: 12.5 - 250 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3
£1318.70
£1582.44 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN80, G250
SKU: TBQS-G250-DN80-PN16
Nominal Size: DN80
Meter Size: G250
Connections: Wafer Design
Max Operating Pressure: 20 Bar (Dependent on connections)
Measuring range: 20 - 400 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3
£1318.70
£1582.44 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN100, G160
SKU: TBQS-G160-DN100-PN16
Nominal Size: DN100
Meter Size: G160
Connections: Wafer Design
Max Operating Pressure: 20 Bar (Dependent on connections)
Measuring range: 12.5 - 250 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3
£1390.63
£1668.76 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN100, G250
SKU: TBQS-G250-DN100-PN16
Nominal Size: DN100
Meter Size: G250
Connections: Wafer Design
Max Operating Pressure: 20 Bar (Dependent on connections)
Measuring range: 20 - 400 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3
£1390.63
£1668.76 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN100, G400
SKU: TBQS-G400-DN100-PN16
Nominal Size: DN100
Meter Size: G400
Connections: Wafer Design
Max Operating Pressure: 20 Bar (Dependent on connections)
Measuring range: 32 - 650 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3
£1390.63
£1668.76 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN150, G400
SKU: TBQS-G400-DN150-PN16
Nominal Size: DN150
Meter Size: G400
Connections: Wafer Design
Max Operating Pressure: 20 Bar (Dependent on connections)
Measuring range: 32 - 650 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3
£1834.19
£2201.03 inc VAT
TBQS - Gas Quantometer Flow Meter :: DN150, G650
SKU: TBQS-G650-DN150-PN16
Nominal Size: DN150
Meter Size: G650
Connections: Wafer Design
Max Operating Pressure: 20 Bar (Dependent on connections)
Measuring range: 50 - 1000 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3
£1834.19
£2201.03 inc VAT
