Dynasonics TFX-5000 Transit-Time Ultrasonic Flow Meter

Dynasonics® TFX-5000 Ultrasonic Flow Meter

Clamp-on, non-invasive flow measurement
For pipe size DN12 – DN1200 (0.5" - 48")
MCERTS Class 2 approved for pipe sizes DN65 - DN300
9-28V DC or 110/230V AC powered
IP67 Enclosure
Bi-Directional flow measurement
Data logging and Alarms with time/date stamp
Digital and Analog outputs
2x selectable digital outputs
- Frequency, totaliser pulse, alarm output
- isolated open collector, 5-30V DC, externally or internally sourced with pullup resistor
4-20mA output

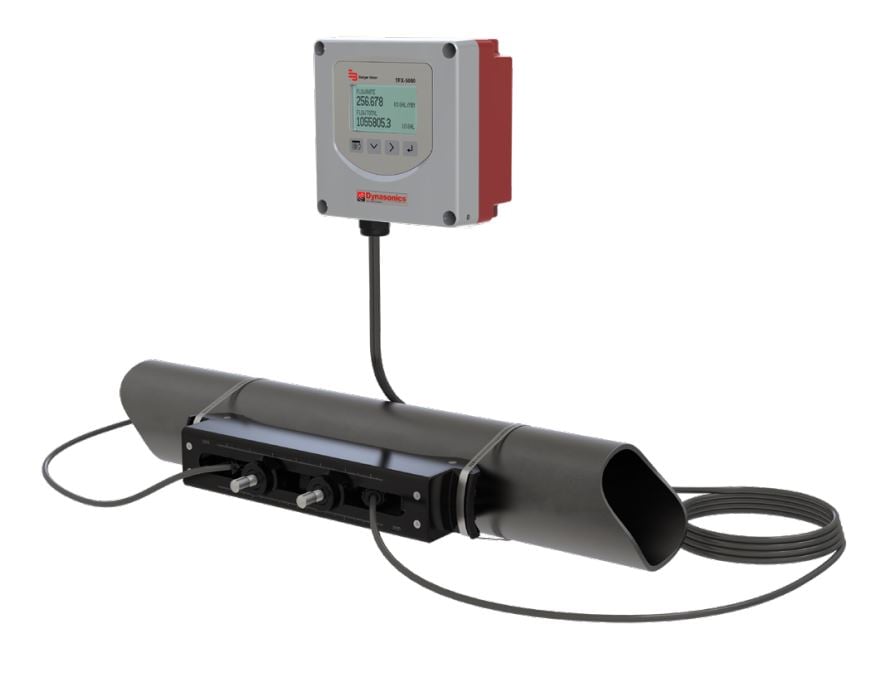

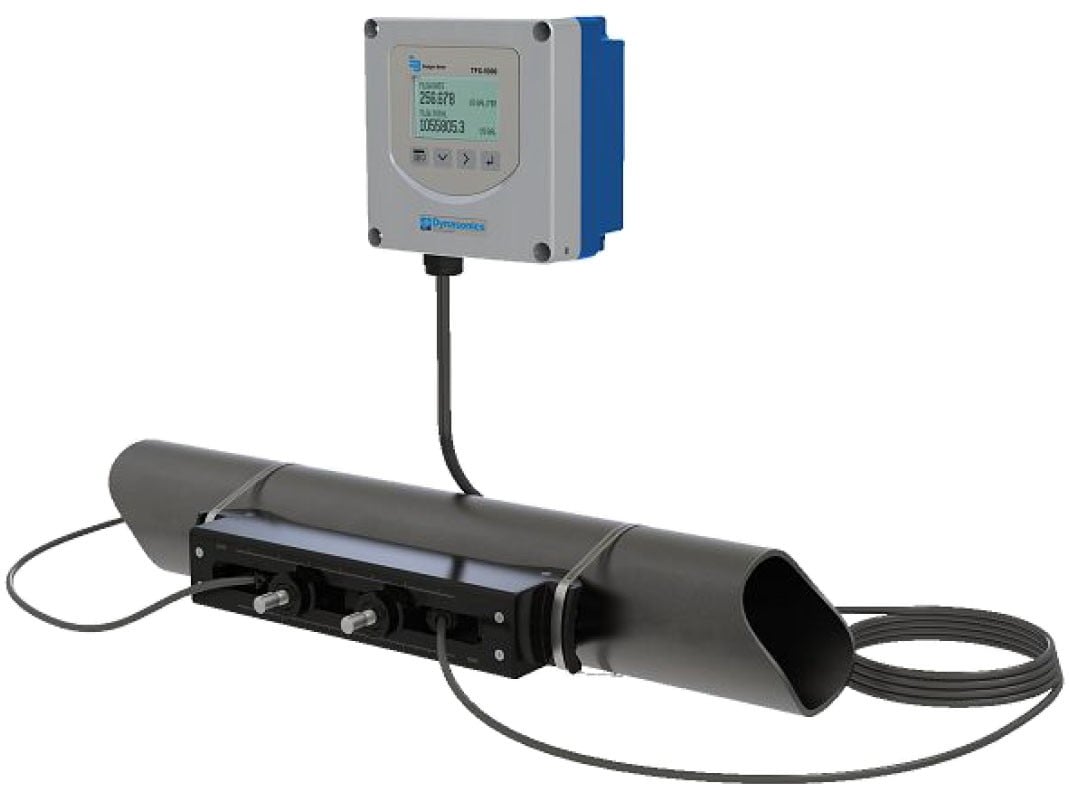

Fixed or adjustable pipe mounted sensors (See options)







The TFX-5000 meter uses transit time measurement to determine the flow rate and total volume. As the TFX-5000 meters' clamp on flow sensors clamp on to the outside of the pipe, there is no requirement to tap or cut into the pipe, providing considerable benefits in terms of the reduction in total installation cost while eliminating the potential for contamination and meter fouling.



⊕ Ability to measure a range of  liquids with small amounts of suspended solids or aeration (e.g., surface water, sewage).

⊕ Bi-directional flow measurement system. Totalizer options include forward, reverse and net total.

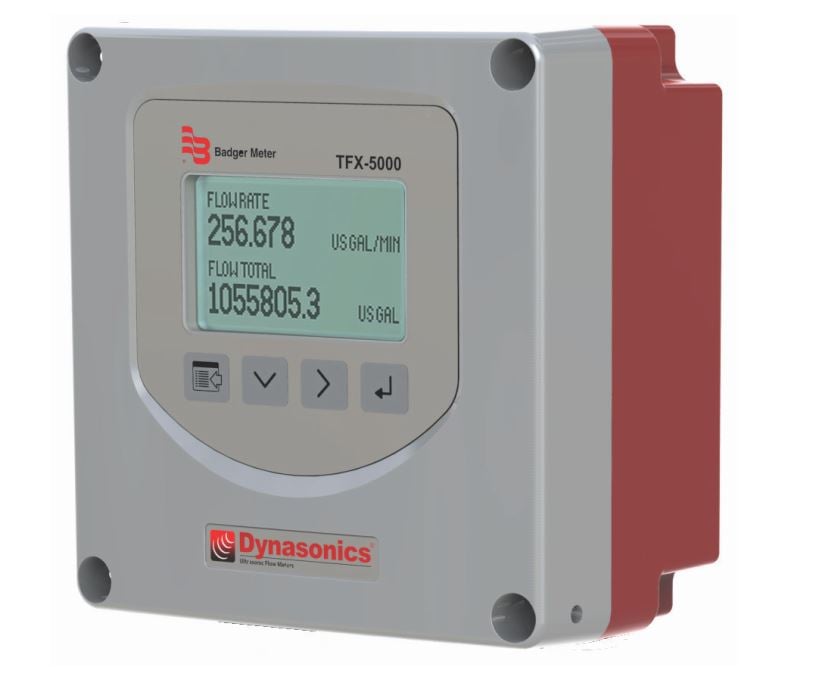

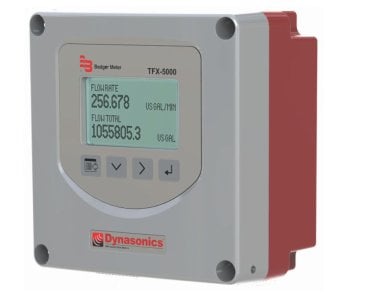

⊕ Compact enclosure uses large, easy-to-read graphical display.
⊕ Rate-Total Backlit Display
⊕ 4-20mA Output
⊕ 0-1,000 Hz Rate Pulse and Dual Alarm Outputs
⊕ Data log up to 8 Parameters per record. Selectable 1 sec to 1 day, via memory card
⊕ Passcode Security
⊕ USB Programming Port
⊕ Remote Totalizer Reset
⊕ A/C (universal 90-264 vac) or optional D/C (11-28 vdc)
⊕ 4 button keypad optional
⊕ CE approved
