Open Channel Flow Meters

Open channel flow measurement solutions. We offer a range of effective technologies for the measurement of water and waste water flows within open channels including flumes, weirs, drains or partially filled pipes.

Our ultrasonic level and velocity based systems offer good accuracy at low cost and are used in conjunction with a primary flow installations such as flumes, weirs and bowls. Alternatively it is possible to install flow sensors within any channel, pipe or stream itself. These are known as area velocity flowmeters and measure level and velocity together to compute accurate flow rate and offer logging and telemetry options. Eastech Cartridge Flow Meters are quite unique and are especially good at measuring low flows in partially full pipe applications, as well as being able to cope with full pipe and flooded chamber flow measurement.
:
from
to
Products: 112 of 12
  • Open Channel Area Velocity Flow Meter :: Battery Powered
    Open Channel Area Velocity Flow Meter :: Battery Powered
    SKU: BFU-300H

    Portable, Open Channel :: Area Velocity Flow Meter
    Measures flow through partially filled pipes, channels, canals and culverts without a flume or weir.
    Rechargeable Lithium Battery (6-8 Hours working life)
    10 Metre length Cable as standard (longer on request)
    Supplied in Carry Case
    Includes S/Steel Deployment Stand and Bracket

    £2495.00
    £2994.00 inc VAT
  • Open Channel Area Velocity Flow Meter :: Fixed Installation
    Open Channel Area Velocity Flow Meter :: Fixed Installation
    SKU: BFU-300F

    Open Channel :: Area Velocity Flow Meter - Fixed Installation
    Measures flow through partially filled pipes, channels, canals and culverts without a flume or weir.
    24V DC Supply
    Outputs, RS485 Modbus, 4-20mA, Relays
    10 Metre Cable as standard (longer on request)

    £2495.00
    £2994.00 inc VAT

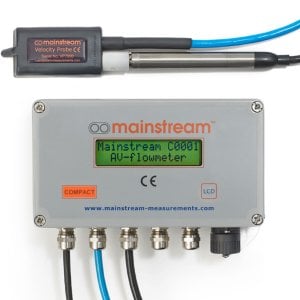

  • Mainstream Compact fixed AV-Flowmeter
    Mainstream Compact fixed AV-Flowmeter
    SKU: FS001/EN
    High performance area velocity flow meter
    Sutiable for open channels and partially full pipes
    Quick to install - no flumes or weirs required
    velocity range - 10mm/s to 5m/s
    4-20ma / SDI-12 / GPRS output options available
    Internal data logger
    ATEX Sensor option available


    £4943.51
    £5932.21 inc VAT

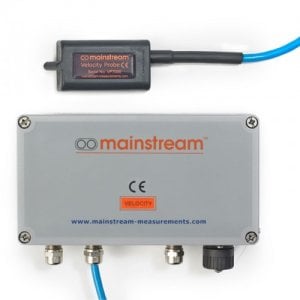

  • Mainstream Area Velocity Transmitter
    Mainstream Area Velocity Transmitter
    SKU: VT001/EN
    VT001/EN water velocity transmitter
    For open channels and partially full pipes
    Quick and straightforwardto install - no flumes or weirs required
    velocity range  - 10mm/s to 5m/s
    4-20ma / SDI-12 / GPRS output options available, call for details
    ATEX certified sensor option available


    £2402.40
    £2882.88 inc VAT

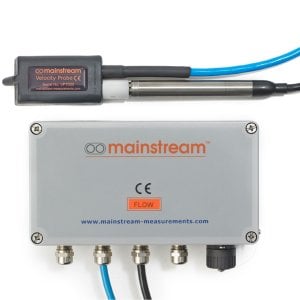

  • Mainstream AV-Flow Transmitter
    Mainstream AV-Flow Transmitter
    SKU: QT001/EN
    High performance area velocity flow transmitter
    Sutiable for open channels and partially full pipes
    Quick to install - no flumes or weirs required
    velocity range - 10mm/s to 5m/s
    4-20ma / SDI-12 / GPRS output options available
    ATEX Sensor option available

    £4199.91
    £5039.89 inc VAT

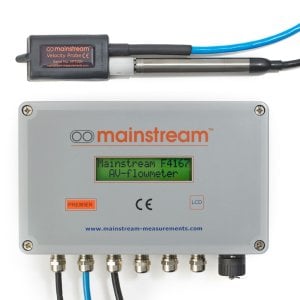

  • Mainstream Premier fixed AV-Flowmeter
    Mainstream Premier fixed AV-Flowmeter
    SKU: FS002/EN
    High performance area velocity flow meter
    Sutiable for open channels and partially full pipes
    Quick to install - no flumes or weirs required
    velocity range - 10mm/s to 5m/s
    4-20ma / SDI-12 / GPRS output options available
    High capacity Internal data logger
    Extended features - Silt level / calibration / increased Outputs
    ATEX Sensor option available

    £6230.51
    £7476.61 inc VAT

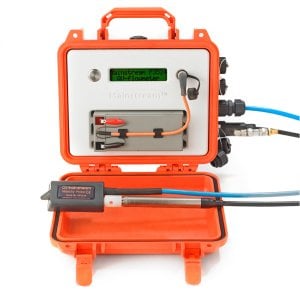

  • Mainstream Portable AV-Flowmeter
    Mainstream Portable AV-Flowmeter
    SKU: PS001/EN
    Portable area velocity flow meter
    Sutiable for open channels and partially full pipes
    Ideal for short term and extended field measurement
    Quick to install - no flumes or weirs required
    velocity range - 10mm/s to 5m/s
    Pulse / SDI-12 / GPRS output options available
    High capacity Internal data logger
    Smart power saving mode

    £6560.84
    £7873.01 inc VAT
  • ACCURON® 7100 Cartridge Flow Meter, Permanent: Single Range
    ACCURON® 7100 Cartridge Flow Meter, Permanent: Single Range
    SKU: 7100

    ACCURON® 7100 Cartridge Flow Meter
    Permanent: Single Range
    Pipe Size Range 4 “ to 24”
    Open channel design
    304 Stainless Steel Cartridge
    Includes fully integrated Trapezoidal Flume & Level Sensor
    with IP66 Backlit LCD Digital display
    Accuracy: ±1-5% of actual rate Turndown Ratio: 60:1

    £3740.00
    £4488.00 inc VAT
  • ACCURON® 7200 Cartridge Flow Meter, Permanent: Dual Range
    ACCURON® 7200 Cartridge Flow Meter, Permanent: Dual Range
    SKU: 7200

    ACCURON® 7200 Cartridge Flow Meter
    Permanent: Dual Range
    Pipe Size Range 8 “ to 24”
    Hybrid open channel design
    304 Stainless Steel Cartridge
    Includes Trapezoidal Flume, Level Sensor & Velocity Sensors
    with IP66 Backlit LCD Digital display
    Accuracy Low Flow +/- 3 to 5% of actual flow
    High flow +/- 1-2% of actual flow

    £6380.00
    £7656.00 inc VAT
  • ACCURON® 7400 Cartridge Flow Meter, Permanent: Extended Range
    ACCURON® 7400 Cartridge Flow Meter, Permanent: Extended Range
    SKU: 7400

    ACCURON® 7400 Cartridge Flow Meter
    Permanent: Extended Range
    Pipe Size Range 8 “ to 24”
    Hybrid open channel design
    304 Stainless Steel Cartridge
    Includes Trapezoidal Flume, Level Sensor & Dual Velocity Sensors
    with IP66 Backlit LCD Digital display
    Accuracy Low Flow +/- 3 to 5% of actual flow
    High flow +/- 1-2% of actual flow

    £8360.00
    £10032.00 inc VAT
  • ACCURON® 7500 Cartridge Flow Meter, Permanent: Full Pipe Measurement
    ACCURON® 7500 Cartridge Flow Meter, Permanent: Full Pipe Measurement
    SKU: 7500

    ACCURON® 7500 Cartridge Flow Meter
    Full Pipe Measurement
    Pipe Size Range 8 “ to 24”
    Unique design - Fully filled open ended pipe suitable
    304 Stainless Steel Cartridge
    Includes  Velocity Sensors (Single or dual path)
    with IP66 Backlit LCD Digital display
    Accuracy  +/- 1 to 2% of actual flow

    £5690.00
    £6828.00 inc VAT

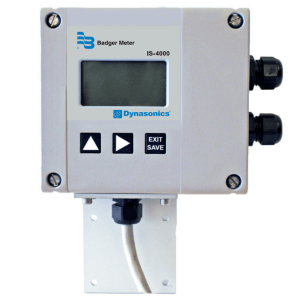

  • iSonic 4000 open Channel Flow Meter and Level Sensor
    iSonic 4000 open Channel Flow Meter and Level Sensor
    SKU: 414432
    iSonic 4000 open Channel Flow Meter & Level Sensor
    from Badger Meter USA
    Ultrasonic Principle
    1x 4-20mA analogue input
    Internal Data Logger and various ouputs
    92 - 275V AC (9-36VDC option)
    £1868.50
    £2242.20 inc VAT
