Portable Ultrasonic Flow meter PF333 :: Transit Time NB 13-2000mm

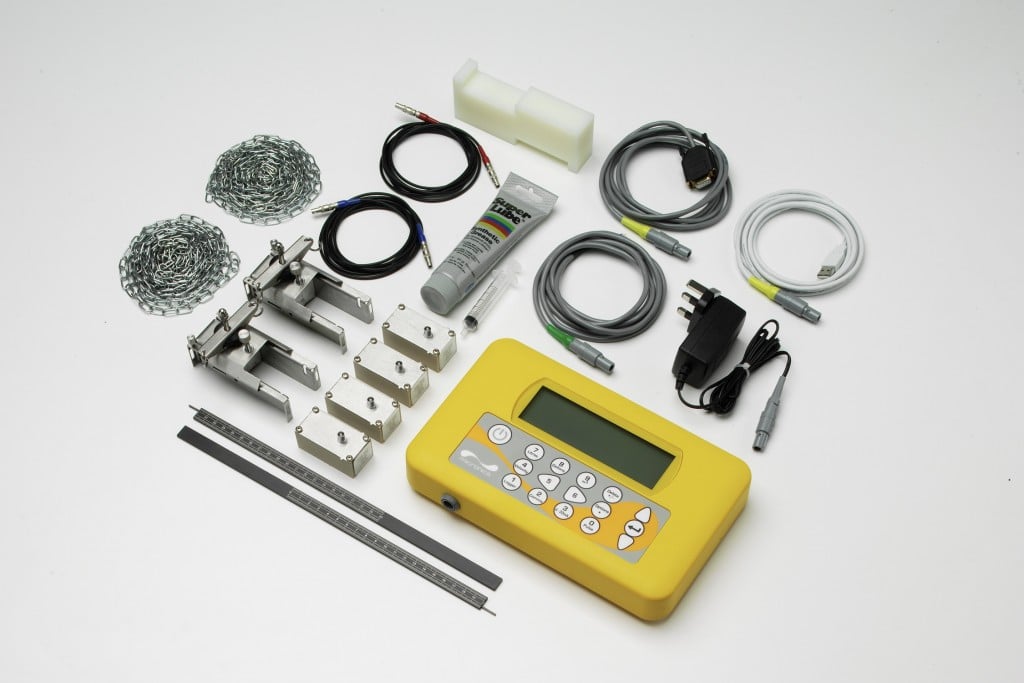

SKU: 780-6018MPortaflow 333 Kit in Carry Case
Transducers: 13mm to 2000mm OD pipes in magnetic guiderail
Pulse, 4-20mA and USB Outputs
Battery Powered with Integral Data logger
Description
PORTAFLOW 333 :: Clamp-on Portable Ultrasonic Flow meter NB 13-2000mm
for non-intrusive measurement of water and other liquids, Battery Powered
Portable Ultrasonic Flow meter - Liquids

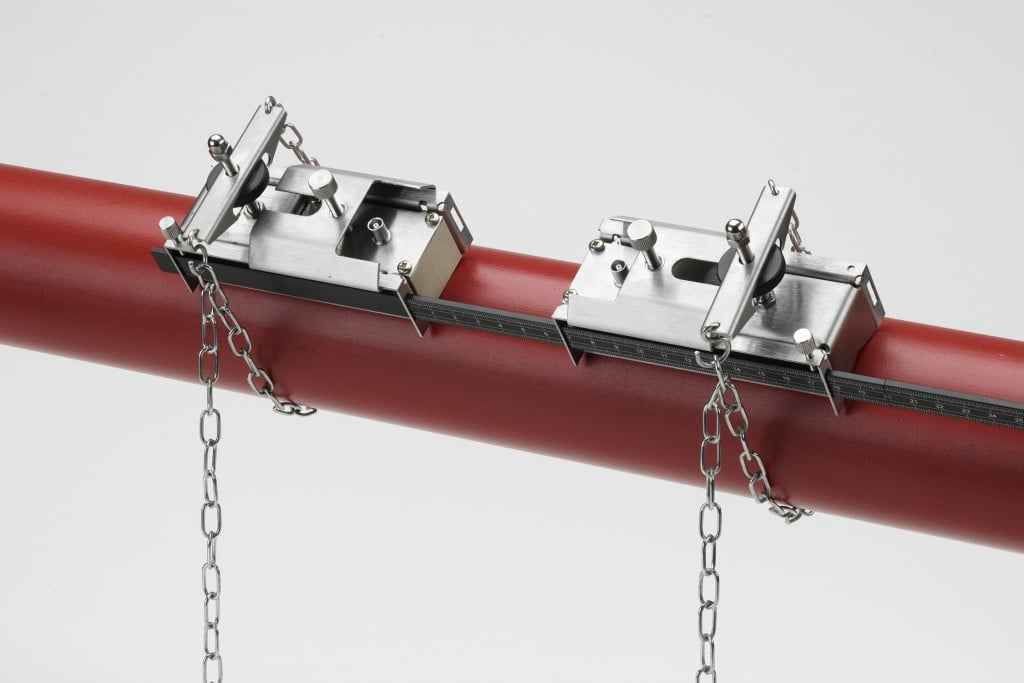

Transducers: 13mm to 2000mm OD pipes in magnetic guiderail
Pulse, 4-20mA and USB Outputs
Battery Powered with Integral Data logger
Features:

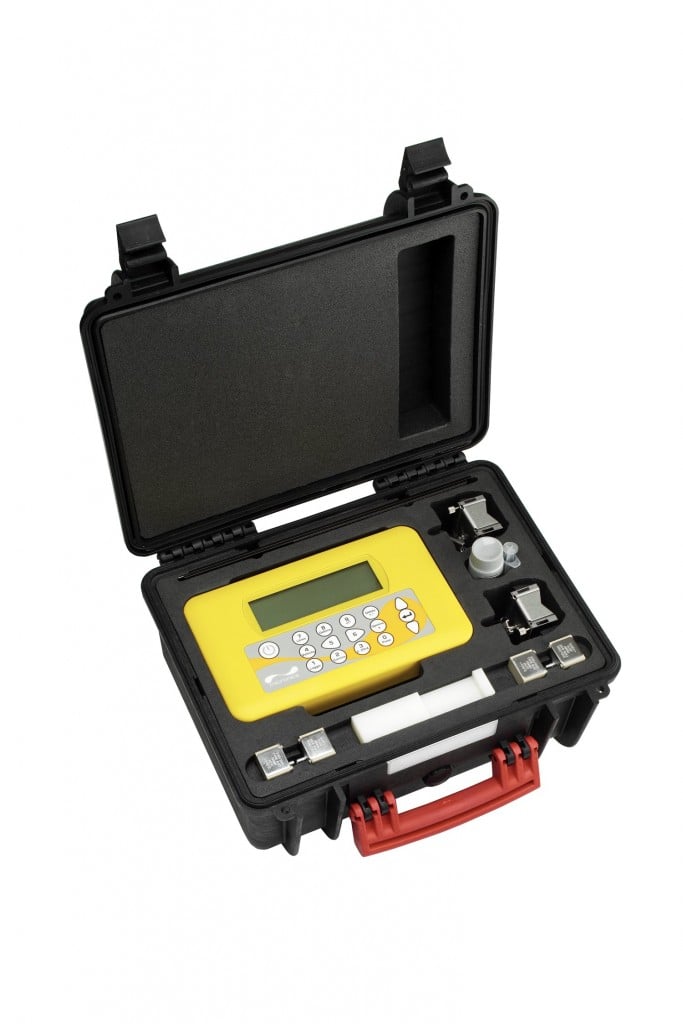

♦ Carry Case: - The PF330 is supplied in a hard wearing IP67 carry case.
♦ Flow Range – 0.1m/sec to 20m/sec bi-directional
♦ Display – 64 x 240 pixels graphic display
♦ Programming via 16 key control panel
♦ Battery or mains operation rechargeable battery
♦ Battery Life – 14 hours from fully charged, depending on load
♦ Power – 110 – 240VAC +/-10% supply via PSU
♦ 4 user selectable languages
♦ CE approved

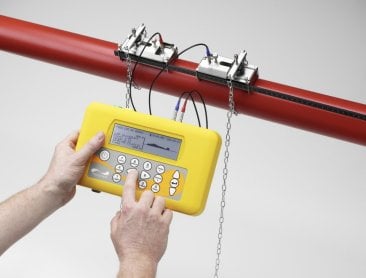

♦ Light-weight, hand-held instrument with large, easy to read graphic display
♦ Two types of transducers; A and B
‘A’ Transducers: 13mm OD to 115mm OD pipes.
‘B’ Transducers: 50mm OD to 2000mm OD pipes.
♦ USB for downloading logged data to PC
♦ Live data logging availble using USB output
♦ Rechargeable battery with up to 14 hours operation
Specification
Display – 64 x 240 pixels graphic display.
Programming via 16 key control panel.
Battery or mains operation.
Rechargeable battery.
Battery Life – 14 hours from fully charged, depending on load.
Power – 110 – 240VAC +/-10% supply via PSU.
4 user selectable languages including English, German, French and Spanish
Accuracy Pipe ID 13-75mm – ±3% of flow reading for flow rate >0.2m/s.
Accuracy Pipe ID > 75mm – ±0.5% to ±2% of flow reading for flow rate >0.2m/s.
CE approved.
‘A’ Transducers:- 13mm OD to 115mm OD pipes.
‘B’ Transducers:- 50mm OD to 2000mm OD pipes.
Transducer Operating Temp:- ‘A’&‘B’ -20°C to +135°C. (Up to 200°C high temp optional also available)
Outputs:- Opto Isolated 4 –20mA; USB; 3x pulse outpus
Data Logging:- 100,000,000 data points. Up to 12 named recording sites.
