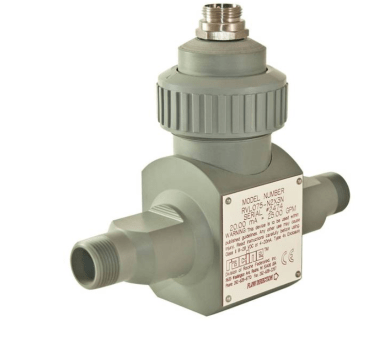

RVL Series Vortex flow meter NPT / Butt end :: 2"

RVL Series Vortex flow meter NPT / Butt end :: 2"

SKU: RVL200
RVL Liquid Vortex Flow Meter, 2"
Flow range: 63.1 - 757 l/min (16.7 - 200 USGal/min)
Butt end or NPT threaded connections
Output: 4-20mA or frequency pulse
Accuracy: ± 1% of full scale, 4-20mA
                  ± 2% of full scale, frequency pulse
Enclosure: IP 66 (NEMA 4X)
Material: PVC, CPVC or PVDF
  • Body Style / End connections
  • Body Material
  • Output
  • Option (Multiple may be selected)
  • Display (Only with 4-20 mA)
  • £2644.57
  • £3173.48 inc VAT


Description


RVL Series Vortex flow meter NPT / Butt end :: 2"

Flow range: 63.1 - 757 l/min (16.7 - 200 USGal/min)
Butt end or NPT threaded connections
Output: 4-20mA or frequency pulse
Accuracy: ± 1% of full scale, 4-20mA
                  ± 2% of full scale, frequency pulse
Enclosure: IP 66 (NEMA 4X)
Power Supply: 13 - 30V DC
Material: PVC, CPVC or PVDF

**Optional display available

**Optional software utility for configuration of 4-20mA

For maximum pressure and temperature see below table


The RVL vortex flow meter is ideal for aggressive or easily contaminated fluids.
Suitable for Ultra-pure water distribution, RO and DI water, cooling water, chemical injection and nonabrasive slurries
