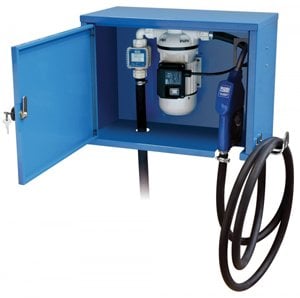

Suzzara Blue Wall Box AdBlue
SKU: F0020196ASuzzara Blue Wall Box AdBlue Pump
Max Flow 32 L/min,
230v AC Powered
Lockable Wall mount enclosure
Description
Suzzara Blue Wall Box AdBlue Pump
Max Flow 32 L/min,
230v AC Powered
IP55 Protection
Lockable Wall mount enclosure
Automatic Nozzle
4m delivery hose
Digital flow meter
Dimensions: 575 x 320 x607mm
- Allows the secure delivery of AdBlue via a simple locking box.
- The nozzle is positioned in its own holder and is secured within the box when the door is closed.
- Designed for wall mounting.
- A suction hose (not included) is to be connected to an IBC or tank
Specification
- Diaphragm pump
- 230VAC, 50Hz, 400W
- 3/4" BSP inlet and outlet
- On/Off Switch
- 2m cable included
- K24 Digital turbine AdBlue flow meter
- 6-100 l/min flow range
- 50ºC Max fluid temperature
- 5-digit resettable total
- 6-digit non-resettable totaliser
- 1" BSP connections
Suzzara Blue Wall Box AdBlue Pump
Max Flow 32 L/min,
230v AC Powered
IP55 Protection
Lockable Wall mount enclosure
Automatic Nozzle
4m delivery hose
Digital flow meter
Pump Specification:
Meter Specification:
