AdBlue™ IBC supply kit :: 230vAC Diaphragm Pump and Automatic Nozzle
SKU: GES19101AdBlue™ IBC Supply kit
230VAC Diaphragm Pump
30 l/min flow
Metallic support with nozzle hanger
Automatic delivery nozzle
Suction kit and 4m delivery hose
*Flow meter not included
Description

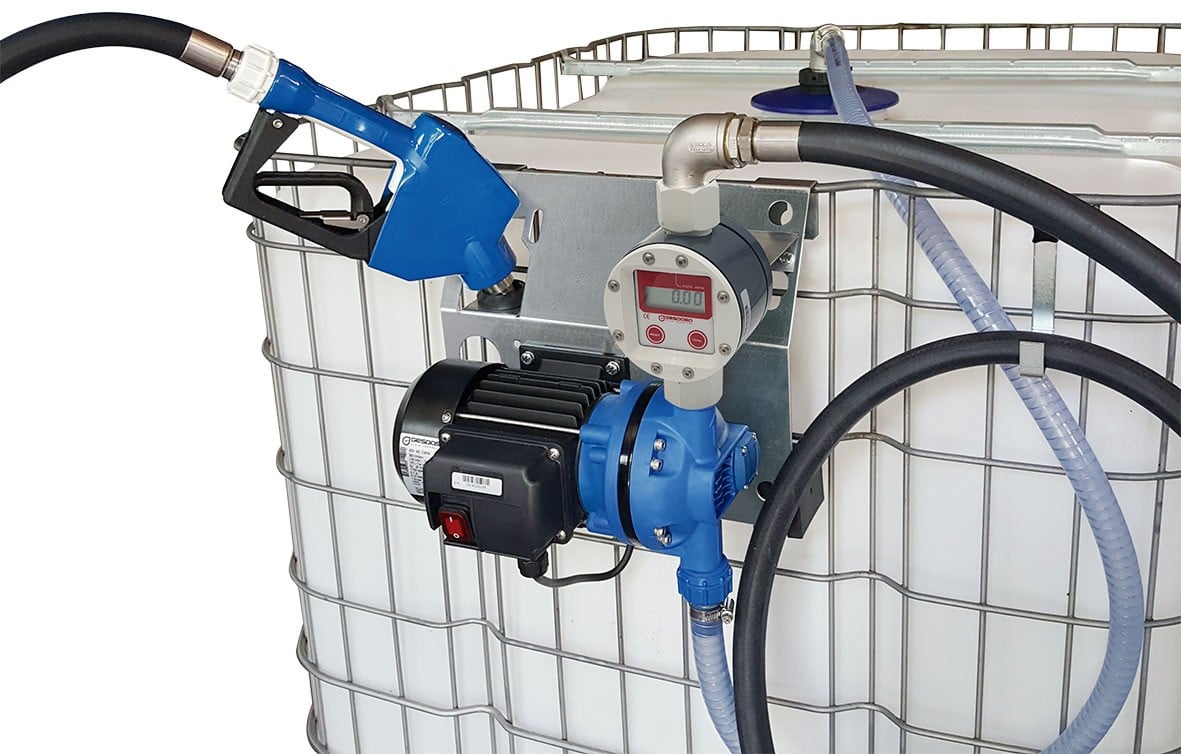

AdBlue™ IBC supply kit :: 230vAC Diaphragm Pump and Manual Nozzle
AdBlue™ IBC Supply kit
230VAC Diaphragm Pump
30 l/min flow
Metallic support with nozzle hanger
Automatic delivery nozzle
Suction kit and 4m delivery hose
*Flow meter not included
**Available with CDS connection
Kits Specially desgned for Adblue / DEF supply to vehicles from 1000L IBC tank
Kit can be placed in any tank or hang on wall with universal support
Composed of:

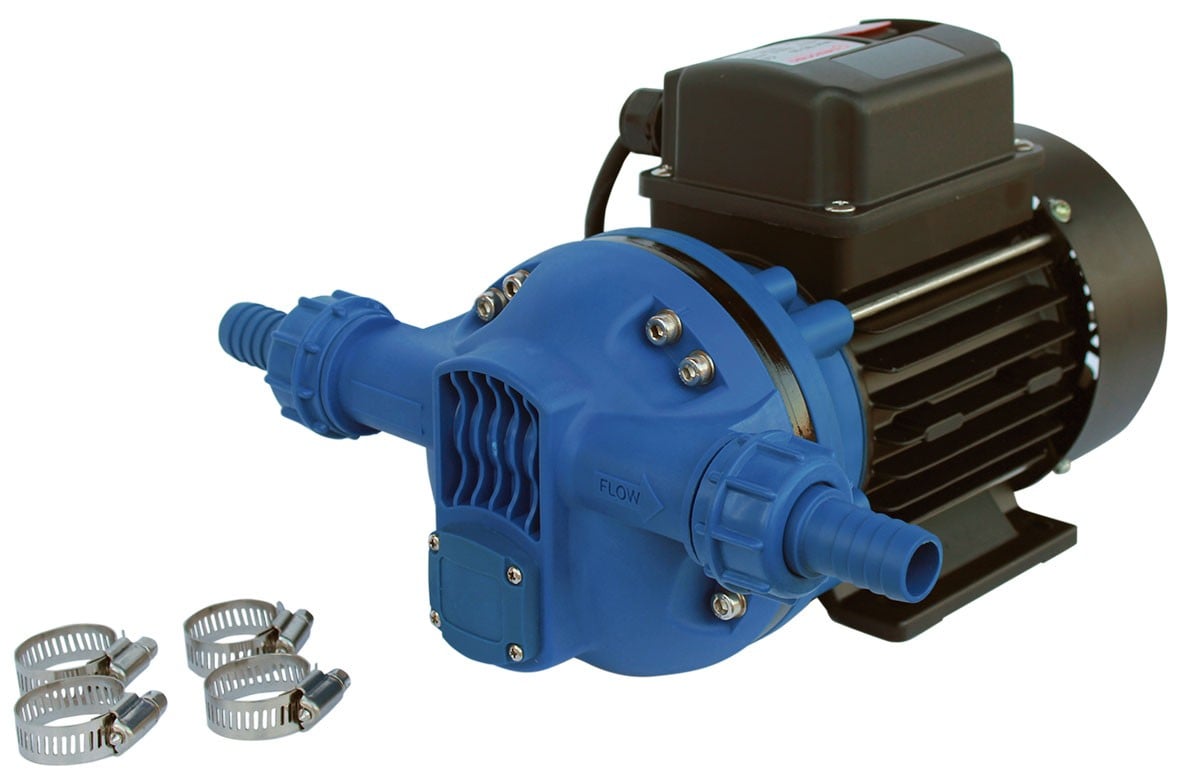

- BD-30 self-priming diaphragm pump
- Flow: 30 l/min
- Motor: 0.37 kW 230 VAC 50/60 Hz single-phase, self-ventilated
- Metallic support with nozzle hanger
- 1.5 m transparent AdBlue/DEF suction hose
- 4 m Ø3/4" delivery AdBlue/DEF hose
- Universal zinc-plated hook set (adaptable to all type of tanks)
- Minimum operation temperature of the kit: -10 ºC
Specification
- Flow: 30 l/min
- Consumption: 0.7 A
- Motor: 0.37 kW 230 VAC · self-ventilated
- 1,750 rpm
- S2 20´ duty
- IP-55 protection
- ON/OFF switch
- 2 m electric cable with approved plug
- Inlet/outlet: F3/4"
- Min./max. temperature: -5 ºC / +40 ºC
- Pressure: 1.6 bar
- Flow range: 12-45 l/min
- Max. pressure: 5 bar
- Diameter: 19 mm
- Fittings: BSPP1" inlet
- Automatic Filling Nozzle with trigger with safety cut out valve
- Mechanism: 3-speed lever latch
- Materials of construction: PP, Stainless steel, Viton
Pump Specifications
Nozzle Specifications
