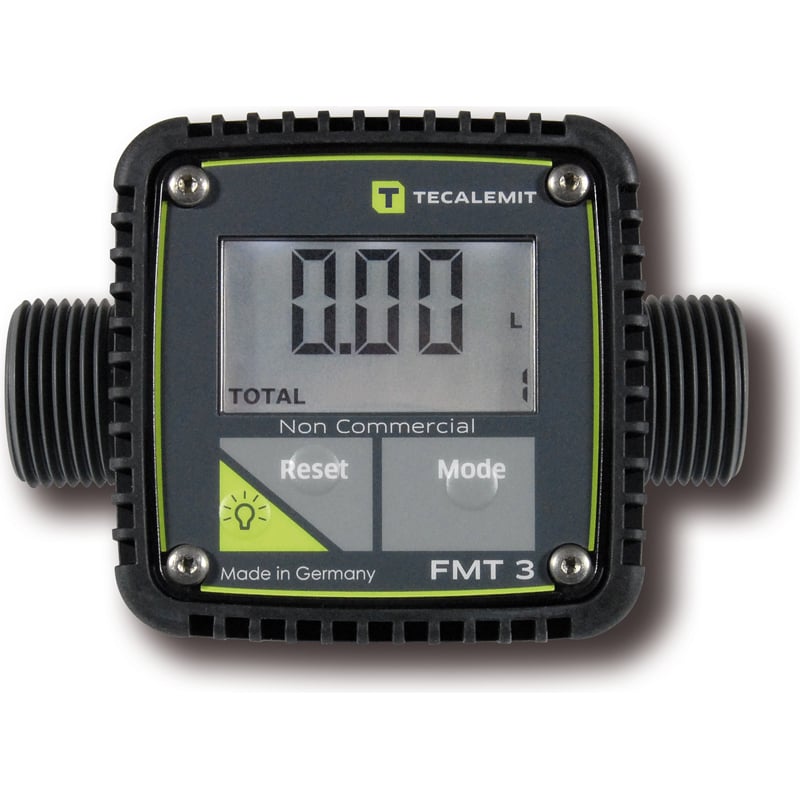

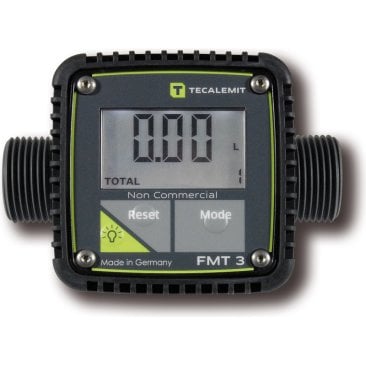

253591006 FMT 3 Digital flow meter, 1" BSP connections, 5-120 L/min
SKU: 253 591 006FMT 3 Digital flow meter
5 to 120L/min
1" BSP Connection
Manufactured by Tecalemit
Suitable for diesel/fuel oil, water, antifreeze, adblue and radiator fluid
Description
FMT 3 Digital flow meter
5 to 120L/min
1" BSP Connections
Suitable for diesel/fuel oil, water, antifreeze, adblue and radiator fluid
- Turbine flow measurement principle
- Large, illuminated display
- 2-line display, LED illuminated, 6-digit line, LC-Display with a character height of 16 mm
- Variable display orientation- can be rotated in 90° steps
- Freely rotatable after installation- display can be rotated while the meter is in situ
- For use with a wide range of liquids such as fuel oil/ diesel, water, AdBlue®, and antifreeze.
- Display can be rotated in 90⁰ increments.
- Precise, robust, versatile
- Variable display orientation
- Precise measurements — less than ±1%
- Shows flow rate
- Burst pressure of 20 bar
Specification
- FMT 3 Digital flow meter
- Flow Rate: 5-120 l/min
- Nominal Pressure: 10 bar / 145 psi
- Viscosity Range: 0.8 – 40 mPa.s
- External Thread: 1 in
- Partial stored volumes: 8
- Measurement precision: ± 1% (after calibration)
- Battery: 2 x 1.5 V AAA/LR03 batteries
- Battery Life: approx. 5 years
- Display: Two-line, LED-illuminated, 6-digit LCD display with a character height of 16 mm (main display)
- Operating temperature: -25°C to +55°C
- Medium temperature: -10°C to +40°C
- Suitable for use with: Diesel/fuel oil, radiator antifreeze, AdBlue® and water
- Dimensions (W x D x H): 120 x 52 x 85 mmWeight: 0.24kg
