Budget Mechanical Display Flow Meter :: DN200
  • Budget Mechanical Display Flow Meter :: DN200
  • Budget Mechanical Display Flow Meter :: DN200

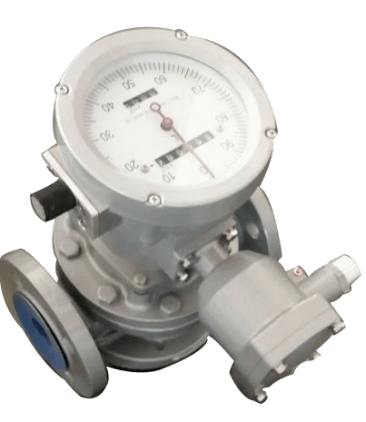

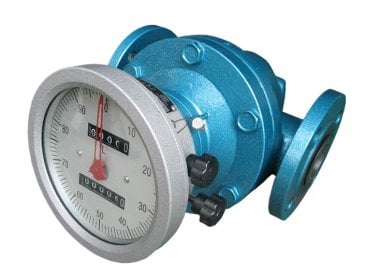

Budget Mechanical Display Flow Meter :: DN200

SKU: Cast Iron/Mechanical = LC-200
Oval Gear Flow Meter - Cast Iron Body
DN200
Mechanical Display
Flow Ranges Dependant on Accuracy chosen and Viscosity of the Liquid
See Description and Specifications for more information
  • Display Output / Power
  • Accuracy
  • Type
  • Flanges
  • Resettable Counter
  • £10551.18
  • £12661.42 inc VAT


Description


Oval Gear Flow Meter - Cast Iron Body
DN200
Mechanical Display
Flow Ranges Dependant on Accuracy chosen and Viscosity of the Liquid


Operating Principle

Fluid enters the inlet port and then passes through the metering chamber. Inside the chamber, fluid forces the internal gears to rotate before exiting through the outlet port. Each rotation of the gears displaces a specific volume of fluid.
As the gears rotate, a magnet on each end of the gear passes a reed switch in the top-mounted register's circuit board.




Application

  • Printing equipment
  • Rotating industrial machinery
  • Paper/Pulp Slurries
  • General industrial high-viscosity
  • Chemical pacing
  • Petroleum, chemical management
  • Lubricants and solvents
  • High-viscosity fluids

Specification

    Flow Ranges (m³/Hr)



Downloads
