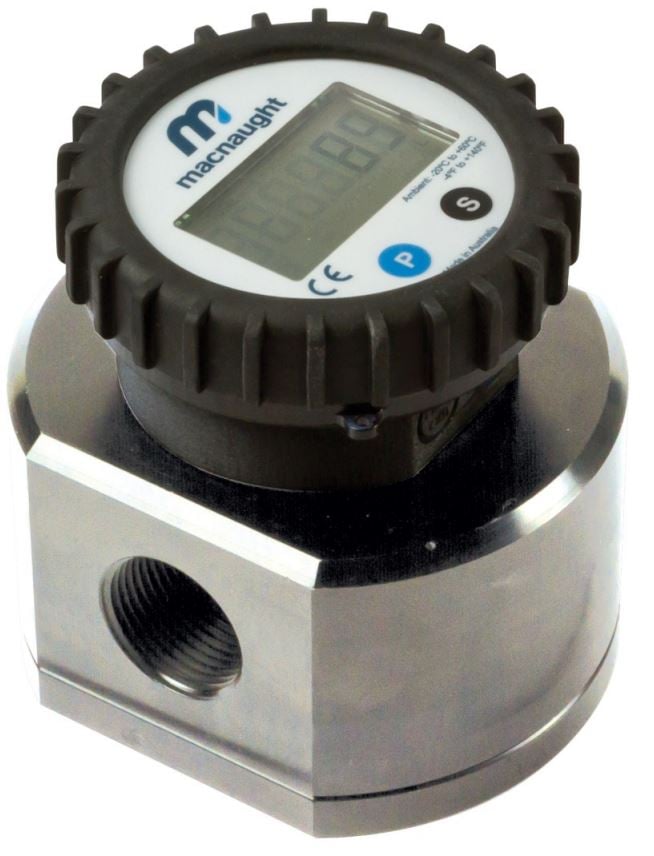

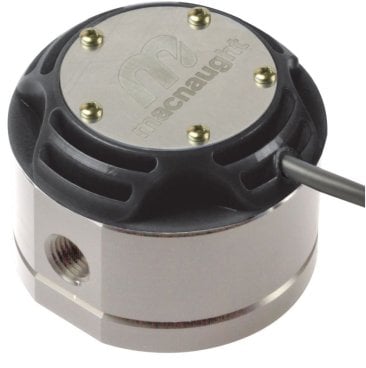

MX09P Industrial Flow Meter :: 1/4" Ports, 15 - 500L/Hr, 69bar (1000psi)
SKU: MX09PMX09P Industrial Flow Meter
St Steel Body, Teflon Seal
1/4" Ports
15 - 500L/Hr, 69 bar (1000psi)
Rugged Design suitable for a variety of liquid measurement tasks
St Steel Body, Teflon Seal
1/4" Ports
15 - 500L/Hr, 69 bar (1000psi)
Rugged Design suitable for a variety of liquid measurement tasks
Description
MX09P Industrial Flow Meter
St Steel Body, Teflon Seal
1/4" Ports
15 - 500L/Hr, 69 bar (1000psi)
St Steel Body, Teflon Seal
1/4" Ports
15 - 500L/Hr, 69 bar (1000psi)
Rugged Design suitable for a variety of liquid measurement tasks
Oval gear flowmeters are ideally suited to applications requiring accurate dispense quantities. Measurement of very low flow rates, pulsating flow, small batch sizes, viscous products, and non-conductive liquids are all ideal uses for oval gear meters. Because these meters don't require flow conditioning, no straight piping runs are required, so they can be used in installations where space is limited without affecting performance.
Applications:
• Chemical batching
• Additive injection
• Hydraulic test stands
• High temperature chemical processes
• High pressure chemical processes
• Food and beverage batch processes
• Ethanol blending and production
• Pulp and paper
• Additive injection
• Hydraulic test stands
• High temperature chemical processes
• High pressure chemical processes
• Food and beverage batch processes
• Ethanol blending and production
• Pulp and paper
Specification
Stainless Steel construction- Teflon (PTFE) encapsulated seals
- Max flow rate 500 LPH / 132 GPH
- Temperatures up to 150C
- Accuracy +/- 0.5%
- Repeatability +/- 0.03%
- K-Factor - Typical 400 Pulses per litre
- Available with BSP or NPT Process connections

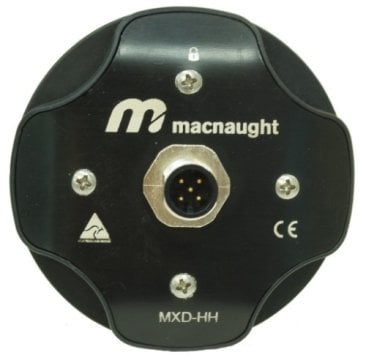

- Variety of output modules and local / remote flow displays available
- Hazardous area version available
MX09P Industrial Flow Meter
St Steel Body, Teflon Seal
1/4" Ports
15 - 500L/Hr, 69 bar (1000psi)
St Steel Body, Teflon Seal
1/4" Ports
15 - 500L/Hr, 69 bar (1000psi)
Versatile 1/4" Oval gear flow meter designed for a broad range of Industrial Process applications.
The Oval gear measurement principle offers extremely high accuracyon both low and high viscosity
fluids. Macnaughts' Internationally accredited calibration laboratory guarantees traceable test results
for every meter manufactured.
The Oval gear measurement principle offers extremely high accuracyon both low and high viscosity
fluids. Macnaughts' Internationally accredited calibration laboratory guarantees traceable test results
for every meter manufactured.
