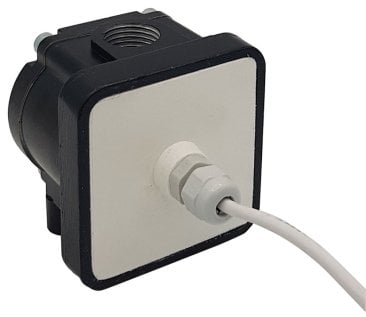

Gespasa MGI-40 Oval Gear Pulse Meter
SKU: GES32280MGI-40 Oval Gear Pulse Meter
Flow Range: 2-40 l/min (Diesel)
Accuracy: ±0.5%
1/2" BSP Thread Connection
Suitable for diesel or oil
Description
Gespasa MGI-40 Digital Oval Gear Meter
MGI-40 Digital Oval Gear Meter
Flow Range: 2-40 l/min (Diesel)
Accuracy: ±0.5%
1/2" BSP Thread Connection
Suitable for diesel or oil
Two Channels: 78 pulses / litre
Aluminium Housing
Oval Gear Pulse flow meter suitable for private use, flow range 2 to 40L/min.
Accurate oval gear flow measurement, ideal for fluid management and control systems.
Specification
Flow (approx.):
from 2 to 40 l/min (lubricant)
from 2 to 50 l/min (diesel)
Voltage: 28 VAC/VDC
Maximum current: 100 mA
Maximum pressure: 50 bar
Min./max. temperature: -10 ºC / +50 ºC
from 2 to 40 l/min (lubricant)
from 2 to 50 l/min (diesel)
Voltage: 28 VAC/VDC
Maximum current: 100 mA
Maximum pressure: 50 bar
Min./max. temperature: -10 ºC / +50 ºC
Two channels: 78 pulses per litre and channel
Accuracy: ±0.5 %
Inlet/outlet connection thread: F1/2" GAS (BSP)
It is suitable for the lubricant measuring up to SAE-140 density
Housing: Aluminium
Cover: plastic
Accuracy: ±0.5 %
Inlet/outlet connection thread: F1/2" GAS (BSP)
It is suitable for the lubricant measuring up to SAE-140 density
Housing: Aluminium
Cover: plastic
