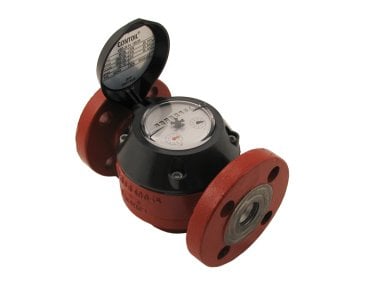

VZO 20 Aquametro Oil Meter - (30-1000 Max 1500 litre/hr) Pulse Output = 0.01 Litre/Pulse

VZO 20 Aquametro Oil Meter - (30-1000 Max 1500 litre/hr) Pulse Output = 0.01 Litre/Pulse

SKU: VZO 20 FL 130/25-IN 0.01

VZO 20 Contoil Oil Meter - (30-1000 Max 1500 litre/hr)
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 0.01 Litre/Pulse Inductive Pulse
20mm Flanged PN25 (JIS and ANSI no additional cost)
Product Code: 91903

  • Marine Approval
  • Materials Cert
  • £2266.20
  • £2719.44 inc VAT


Description


VZO 20 Contoil Oil Meter - (30-1000 Max 1500 litre/hr)
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 0.01 Litre/Pulse Inductive Pulse
20mm Flanged PN25 (JIS and ANSI no additional cost)
Product Code: 91903
Max Temp 130C
Max Pressure PN25
Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser

Specification

    VZO 20 FL 130/25-IN0,01

    CONTOIL® oil meter VZO 20 FL 130/25-IN 0.01
    Ring piston meter for mineral oil, with rotatable roller counter

    Nominal diameter:                              DN 20 mm
    Connection for flanges:                      DN 20 to DIN 2501
    Nominal pressure:                              PN 25 bar
    Installation length:                              165 mm
    Installation position:                           horizontal / vertical
    Temperature, max:                             130 °C
    Measuring range (at visc. 1…20 mPa.s): 30...1500 l/h
    Max. continuous flow Qn:                   1000 l/h
    Max. measuring deviation:                  ± 1% of measured value
    Repeatability:                                     ± 0.2%
    Smallest readable value:                     0.1 l
    Registration capacity:                         10 Mio l

    With built-on inductive IN pulser          as per DIN 19234
    Supply 5...15 V DC, signal at 8 V DC < 1 mA / > 3 mA
    Pulse value:                                       0.01 l
