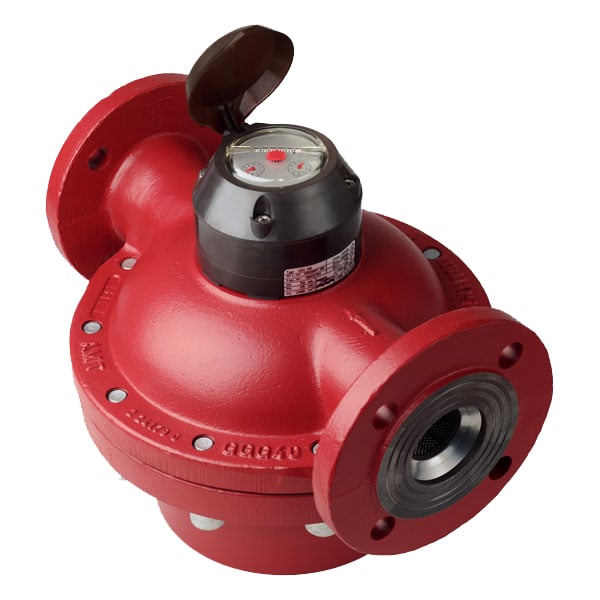

VZOA 50 Contoil Oil Meter - (750-20,000 Max 30,000 litre/hr)

VZOA 50 Contoil Oil Meter - (750-20,000 Max 30,000 litre/hr)

SKU: VZOA 50 FL 180/25-RV 10

VZOA 50 Contoil Oil Meter - (750-20,000 Max 30,000 litre/hr)
Mechanical Totaliser (Litres) Non-reset
50mm PN25 FLANGED (JIS and ANSI no additional cost)
Pulse Output = 10 Litres/Pulse ~ Reed Switch
Product Code: 92329

  • Marine Approval
  • Materials Cert
  • £6530.40
  • £7836.48 inc VAT


Description


VZOA 50 Contoil Oil Meter - (750-20,000 Max 30,000 litre/hr)
Mechanical Totaliser (Litres) Non-reset
50mm PN25 FLANGED (JIS and ANSI no additional cost)
Pulse Output = 10 Litres/Pulse ~ Reed Switch
Max Temp 180C
Max Pressure PN25
Positive Displacement / Low Pressure Drop Design
Accuracy 0.5% of actual value
8 Digit Totaliser

Product Code: 92329

Specification

    VZOA 50 FL 180/25-RV10

    CONTOIL® Oil meter VZOA 50 FL 180/25-RV 10
    Ring piston meter for mineral oil, with rotatable roller counter

    Nominal diameter: DN 50 mm
    Connection for flanges: DN 50 to DIN 2501
    Nominal pressure: PN 25 bar
    Installation length: 350 mm
    Installation position: horizontal / vertical
    Temperature, max.: 180 °C
    Measuring range (at visc. 1…20 mPa.s): 750...30000 l/h
    Max. continuous flow Qn: 20000 l/h
    Max. measuring deviation: ± 0.5% of measured value
    Repeatability: ± 0.1%
    Smallest readable value: 1 l
    Registration capacity: 100 Mio l

    With RV Reed pulser integrated in register unit
    Contact load max.: 48 V AC/DC, 50 mA, 2 W
    Pulse value: 10 l
