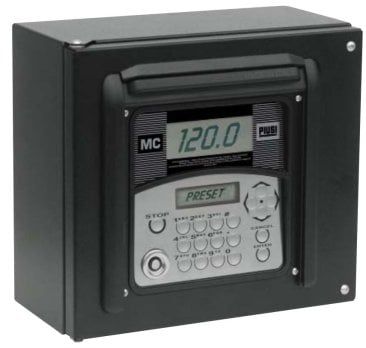

Piusi MC Box only
SKU: F139800Piusi MC Box
Fuel Management Unit
230vAC,12vDC or 24vDC Powered options
Up to 80 or 120 users
230vAC,12vDC or 24vDC Powered options
Up to 80 or 120 users
Description
Piusi MC Box Only
Fuel Management Unit
230vAC,12vDC or 24vDC Powered options
Up to 80 or 120 users
230vAC,12vDC or 24vDC Powered options
Up to 80 or 120 users
For use with various fluids e.g Diesel, Biodiesel and Oils
- Able to monitor and control the usage of fuel in commercial "Not-for-resale" applications.
- This model can be used with a new installation or can be retrofitted to an existing installation where a pump, hose and pulse meter are already present.

- This complete kit has the capacity for 80 or 120 authorised users, and can record the quantity of fuel dispensed as well as the date and time of the transaction, for the last 255 transactions.
- Authorised users can have a personal access code, or a magnetic key fob. Unauthorised users will not be able to dispense fuel.
- The MC Box allows pump control (on/off), identification of users, pre-set a quantity to be dispensed, management of a pulse meter, management of a micro switch on a nozzle hanger, and connection to an external printer.
- Optional Self Service Desk software allows the transactional data to be viewed on a PC.
Please note that if you choose this "box only" model that you will need a pump, pulse output-flow meter, hoses and nozzle to complete the installation.
Specification
Piusi MC Box Only
Fuel Management Unit
230vAC,12vDC or 24vDC Powered options
Up to 80 or 120 users
230vAC,12vDC or 24vDC Powered options
Up to 80 or 120 users
50Hz, 35 Watt, 6.5A
Dimensions
