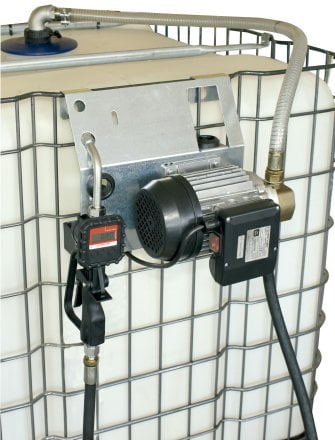

KDE-1000 Electric Kit For 1000L Tank :: 0.37kW Pump and Nozzle
SKU: GES20640KDE-1000 Electric Kit For 1000L Tank / IBC
Includes 0.37kW, 230VAC Pump
Manual oil nozzle
6m delivery hose
3/4" metallic suction kit
Non-return valve and filter
Metallic tank support with noxzzle hanger
Description
KDE-1000 Electric Kit For 1000L Tank :: 0.37kW Pump and Nozzle
KDE-1000 Electric Kit For 1000L Tank / IBC
Includes 0.37kW, 230VAC Pump
Manual oil nozzle
6m delivery hose
3/4" metallic suction kit
Non-return valve and filter
Metallic tank support with noxzzle hanger
** For suction from top of tank. Alternative model available for suction from bottom of tank.
Self suction oil kit for oil transfer.
Easy to install in IBC tanks
Equipped with:
EA-88 (0,37kW) 230VAC pump
6m R1 Ø1/2" delivery hose with adapters in both ends
3/4" metallic suction Kit, height 1m with filter built-in
Includes bung adapter with two thread sizes and tank adapter plug

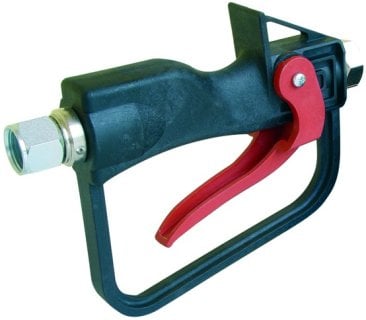

PG-40 oil hand control valve with 60º rigid outlet and non-drip valve
Metallic tank support with noxzzle hanger
Specification
Pump:
EA-88 (0.37 kW) 230VAC
Self Suction gear pump for oil transfer
Includes recirculation bypass system
Suitable for lubricant transfer with average/low density.
Suction: 2,5 m · Delivery: 40 m
Oil flow: 20-25 l/min (SAE-20/50 W at 25 ºC)
Motor: 0,37 kW self-ventilated 230 VAC 50 Hz single-phase. IP-55 protection
With thermal protector
Consumption: 2-4 A
1,500 rpm
Bypass pressure: 5-6 bar
Inlet / outlet: 1/2" GAS (BSP)
ON/OFF Switch
3 m 230 VAC connection cable
Body material: brass
Suitable for lubricant transfer with average/low density.
Suction: 2,5 m · Delivery: 40 m
Oil flow: 20-25 l/min (SAE-20/50 W at 25 ºC)
Motor: 0,37 kW self-ventilated 230 VAC 50 Hz single-phase. IP-55 protection
With thermal protector
Consumption: 2-4 A
1,500 rpm
Bypass pressure: 5-6 bar
Inlet / outlet: 1/2" GAS (BSP)
ON/OFF Switch
3 m 230 VAC connection cable
Body material: brass
