KIT EQUIPE SE-50 230VAC

Pump:

IRON-50 Diesel Pump 230vAC
50L/min free flow
1" BSPP connections
Pump only
S1 Continuous Duty

Features:
Self-suction - self-priming. Eccentric self-adjusting blades
Recirculation bypass
Suction: Max 2.7 m · Delivery: Max 30 m
Priming pipe suction: 5 m
Free flow: 50 l/min
Consumption: 1.2-2 A
Motor: 0.25 kW 230 VAC self-ventilated · 50/60 Hz single-phase
with thermal protector
S1 Continuous Duty
3,000 rpm
Bypass pressure: 2-2.5 bar
Connection through F1" (BSP) threads and flanges
Built in steel filter of 350 µm (micron).
ON/OFF luminous switch
Anti-rust treatmen

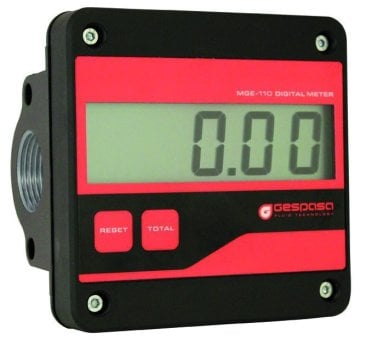

Flow Meter:

MGE-110 Digital flow totaliser

Body made of aluminium
Measurement through oval gear of high accuracy
Digital Display of liquid crystal
3 integers and 2 decimals: "999.99"
4 integers and 1 decimal: "9999.9"
5 integers: "99999"
Flow (approx.): 5-110 l/min (diesel)
Fluid density: 2-2000 cSt
Accuracy: ±0.5%
Maximum pressure: 55 bar
Max. temperature: 50 ºC
Min. temperature: -10 ºC
Connection through F1" thread or flange
Button battery of long duration (approx. 4 years, according to its application)
Low battery display
Calibration parameters and litre totalizer saved in PERMANENT memory
