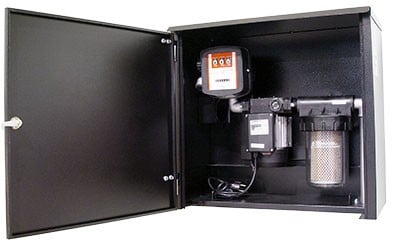

KIT EQUIPE S-50 230VAC

Pump:

IRON-50 Diesel Pump 230vAC
50L/min free flow
1" BSPP connections
Pump only
S1 Continuous Duty

Features:
Self-suction - self-priming. Eccentric self-adjusting blades
Recirculation bypass
Suction: Max 2.7 m · Delivery: Max 30 m
Priming pipe suction: 5 m
Free flow: 50 l/min
Consumption: 1.2-2 A
Motor: 0.25 kW 230 VAC self-ventilated · 50/60 Hz single-phase
with thermal protector
S1 Continuous Duty
3,000 rpm
Bypass pressure: 2-2.5 bar
Connection through F1" (BSP) threads and flanges
Built in steel filter of 350 µm (micron).
ON/OFF luminous switch
Anti-rust treatmen

Flow Meter:

MG-80 Mechanical flow totaliser

Fireproof measuring chamber with oscillant disc
Flow: 10-90 l/min
Accuracy: ±1 %
Resettable indicator of 3 digits and totalizer of 6 digits
Maximum operation pressure: 3,5 bar
Maximum temperature: 60 ºC
Minimum temperature: -10 ºC
Polyamide + Fibreglass housing
Connection 1" GAS (BSP) with 3 inlets and 2 outlets
It is suitable for hydrocarbon liquid (please, consult other liquids).
For private use, not suitable for fiscal operations
