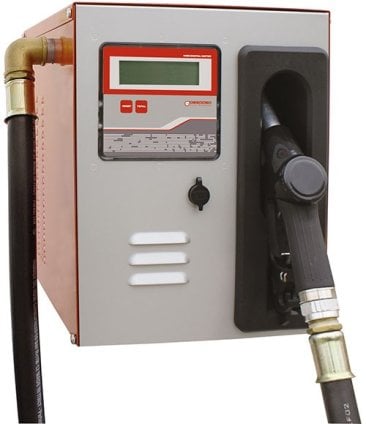

COMPACT 50E-12 :: Digital Supply Kit , 12VDC Pump, Digital Totaliser, Hose and Nozzle

COMPACT 50E-12 :: Digital Supply Kit , 12VDC Pump, Digital Totaliser, Hose and Nozzle

SKU: GES28240
COMPACT 50E-12 Digital Supply Kit
Enclosed in metallic wall mount case
Includes 12 vDC, 50 L/min Pump
For Diesel fuel
Digital flow totaliser, MGE-110
4m Delivery Hose
Nozzle hanger with Micro Switch
  • £724.70
  • £869.64 inc VAT


Description


COMPACT 50E-12 :: Digital Supply Kit , 12VDC Pump, Digital Totaliser, Hose and Nozzle

COMPACT 50E-12 Digital Supply Kit
Enclosed in metallic wall mount case
Includes 12 vDC, 50 L/min Pump
For Diesel fuel
Digital flow totaliser, MGE-110
4m Delivery Hose
Nozzle hanger with Micro Switch

**Available with other pumps and mechanical totaliser

Suitable for diesel, petrol and other compatible fuels

Includes digital flow totaliser with 5 digit non-resettable and resettable total

Automatically switches pump on and off when nozzle removed and placed in hanger

The compact mechanical supply kits are suitable for the diesel and petrol supply and measure for own consumption vehicles.
Its chassis is made of brilliant stainless steel, and its covers are made of steel with brilliant epoxy paint.
The pumping and measuring kit are protected because of interior and exterior treatment against corrosion prolonging the life of the equipment.
They are also suitable for little cooperatives, transport companies, private vehicle fleet, agricultural companies, public works

Dimensions: 405x460x405mm

Specification

    Pump:
    IRON-50 Diesel Pump 12vDC
    50L/min free flow
    S2 30' Duty
    Features:
    Self-suction - self-priming. Eccentric self-adjusting blades
    Recirculation bypass
    Suction: Max 2.7 m · Delivery: Max 20 m
    Priming pipe suction: 5 m
    Consumption: 18-24 A
    Motor: 0.30 kW 12 vDC self-ventilated
    3,000 rpm
    Bypass pressure: 1.2 bar
    Connection through F1" (BSP) threads and flanges
    Built in steel filter of 350 µm (micron).
    ON/OFF luminous switch
    Anti-rust treatmen

    Flow Meter:
    MGE-110 Digital flow totaliser
    Body made of aluminium
    Measurement through oval gear of high accuracy
    Digital Display of liquid crystal
    3 integers and 2 decimals: "999.99"
    4 integers and 1 decimal: "9999.9"
    5 integers: "99999"
    Flow (approx.): 5-110 l/min (diesel)
    Fluid density: 2-2000 cSt
    Accuracy: ±0.5%
    Maximum pressure: 55 bar
    Max. temperature: 50 ºC
    Min. temperature: -10 ºC
    Connection through F1" thread or flange
    Button battery of long duration (approx. 4 years, according to its application)
    Low battery display
    Calibration parameters and litre totalizer saved in PERMANENT memory
