COMPACT 50K-230 Supply Kit :: Fuel Management System, 230VAC Diesel Pump, Hose and Nozzle
  • COMPACT 50K-230 Supply Kit :: Fuel Management System, 230VAC Diesel Pump, Hose and Nozzle
  • COMPACT 50K-230 Supply Kit :: Fuel Management System, 230VAC Diesel Pump, Hose and Nozzle

COMPACT 50K-230 Supply Kit :: Fuel Management System, 230VAC Diesel Pump, Hose and Nozzle

SKU: GES28540
COMPACT 50K-230 Supply Kit
GK7 Fuel Management system
60 or 130 Users
230VAC diesel pump, 50 l/min
4m Delivery hose
Automatic Nozzle
Pulsed Flow Meter
  • User Memory
  • Communication Kits
  • £1969.55
  • £2363.46 inc VAT


Description


COMPACT 50K-230 Supply Kit :: Fuel Management System, 230VAC Diesel Pump, Hose and Nozzle

COMPACT 50K-230 Supply Kit
GK7 Fuel Management system
60 or 130 Users
230VAC diesel pump, 50 l/min
4m Delivery hose
Automatic Nozzle
Pulsed Flow Meter

Suitable for Diesel supply, measuring and control
Ideal for transport companies, provate vehicle fleets and agricultural use

**Available with internal GPRS modem for automatic communiction to cloud based server. Contact for more details.

Allows use to only authorised users
Identification through user ID, Key fob and vehicle ID
User identification: Only identifies the individual users. It is useful for when managers want to identify only the person who is supplying.
Vehicle identification: Only identifies the vehicles. Used in installtions where you only want to identify and control the vehicles and their consumption, without identifying the users.
User and vehicle identification: It is the most complete system, offering a high level of security. It is specially useful for installations with a big number of users and/or vehicles, or where the users are often changing the vehicle.

Available with optional communication kits
Communication kits include software to manage the GK-7.

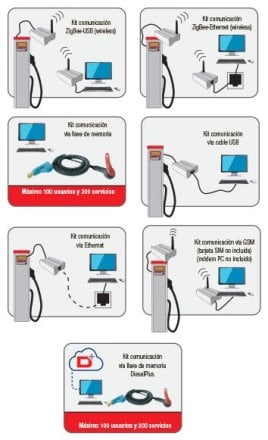

Communication options:
Memory Key - Download up to 200 services on to the memory key and upload to PC via a converter and USB
USB Cable - Connect to GK-7 via wired USB
Zigbee-USB(Wireless) - Connect wirelessly with USB connection to PC
Ethernet - Connect to GK-7 via wired Ethernet connection to PC
Zigbee-Ethernet (Wireless) - Connect wirelessly with Ethernet connection to PC

Specification

    Controller features:
    It controls:
    Supply date and hour
    Users
    Vehicles
    Supplied litres by users and/or vehicles
    Car mileage (or hours) and consumption
    Tank litre stock
    The services are saved in memory and can be transferred to a computer.

    Pump:
    IRON-50 Diesel Pump 230vAC
    50L/min free flow
    1" BSPP connections
    Pump only
    S1 Continuous Duty
    Features:
    Self-suction - self-priming. Eccentric self-adjusting blades
    Recirculation bypass
    Suction: Max 2.7 m · Delivery: Max 30 m
    Priming pipe suction: 5 m
    Free flow: 50 l/min
    Consumption: 1.2-2 A
    Motor: 0.25 kW 230 VAC self-ventilated · 50/60 Hz single-phase
    with thermal protector
    S1 Continuous Duty
    3,000 rpm
    Bypass pressure: 2-2.5 bar
    Connection through F1" (BSP) threads and flanges
    Built in steel filter of 350 µm (micron).
    ON/OFF luminous switch
    Anti-rust treatment
