Wall Mount Fuel Transfer Pump Kit
  • Wall Mount Fuel Transfer Pump Kit
  • Wall Mount Fuel Transfer Pump Kit

Wall Mount Fuel Transfer Pump Kit

SKU: GES33330-CF00000

Wall Mounted ATEX Fuel Dispenser / Petrol Transfer Pump - (not suitable for resale dispensing)

Built in Mechanical flowmeter
ATEX EEx d Certified 240v Pump
50 L/min, 1" BSP Connections


  • £850.57
  • £1020.68 inc VAT


Description

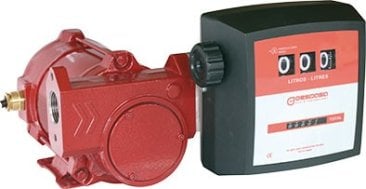

Wall Mounted ATEX Fuel Dispenser / Petrol Transfer Pump

Built in Mechanical flowmeter MG-80AV
IRON-50 Ex ATEX EEx d Certified 240v Pump
50 L/min, 1" BSP Connections
Fitted to Wall mount Base No 4

Wall Mounted Atex approved fuel dispenser with 230vAC pump and mechanical resettable flow meter.
Dispensing Nozzle and suction/delivery hoses can be bought seperately. Contact us for details.



Specification


    • Self-suction - self-priming, explosionproof, eccentric with self-adjusting blades
    • Recirculation bypass
    • Max suction: 2.7 m
    • Free flow: 50 l/min
    • Consumption: 1-1.8 A
    • Motor: 0.18 kW 230 VAC 50 Hz single-phase EExd
    • Thermal protection
    • 2,850 rpm
    • S2 30´ operation
    • IP-55 protection
    • Operation temperature: -10 ºC · +40 ºC
    • Motor zone classification: II 2 G Ex dc IIB T4
    • Certificate: 94/9/CE · LOM 15ATEX0124
    • Thread connection: F1" (BSP) and flange
    • ON/OFF switch
    • Anti-rust treatment
    • Mechanical Flow meter with viton Seals
    • 3 digit resettable total
    • 6 Digit accumulated total
    • ± 1% Accuracy
    • Built in 350 micron filter
