Heating Oil lifters & pressure feed pumps


The SP32 Oil lifter is a unique product which enables the transfer of heating oil upto high level installations.
The Oil lifter draws fuel up from a storage tank down below & retains a small volume of oil in its internal reservoir. The fuel in the reservoir is then gravity fed into the Stove or burners supply line and is automatically replenished as required.

Requires 230v AC supply, internal installation only.

Max Lift: 8m
∗ Max Capacity: 80 litre/hr (see models below)

Suitable for use with both pressure jet & vaporiser type burner units.

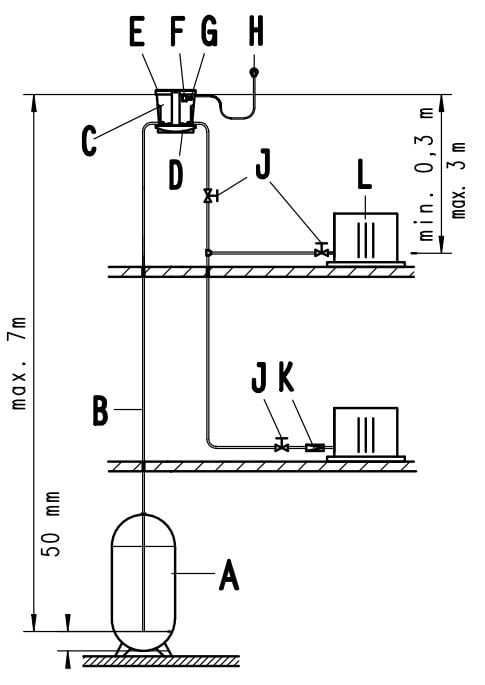

Legend:

A. Main oil Tank
B. Suction line pipe ID 6/8/10mm
C. Oil Lifter Reservoir
D. Safety Drip Tray
E. Cover
F.  LED-display
G. Start-up button
H. Main electrical plug
J. Shut-off valves
K. Oil-pressure regulator
L. Appliance
M. Check valve
