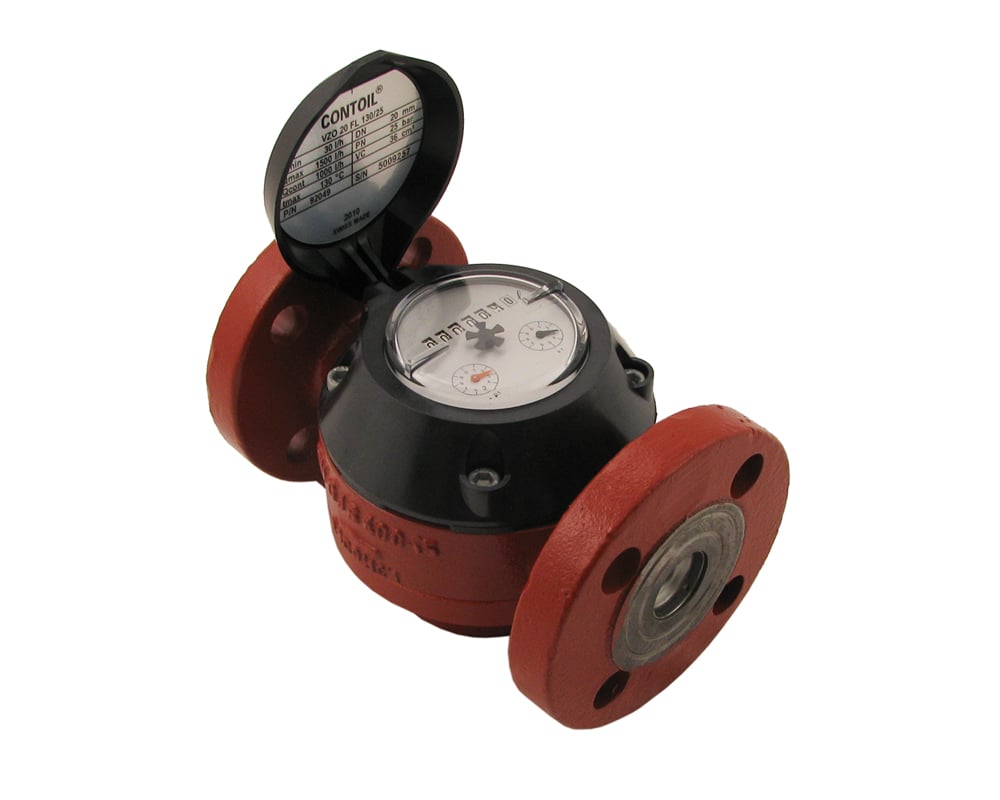

VZO 20 Aquametro Oil Meter - (30-1000 Max 1500 litre/hr) Pulse Output = 1 Litre/Pulse

VZO 20 Aquametro Oil Meter - (30-1000 Max 1500 litre/hr) Pulse Output = 1 Litre/Pulse

SKU: VZO 20 FL 180/40-RV 1

VZO 20 Contoil Oil Meter - (30-1000 Max 1500 litre/hr)
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 1 Litre/Pulse Reed Pulse
20mm Flanged PN40 (JIS and ANSI no additional cost)
Product Code: 92262

  • Marine Approval
  • Materials cert
  • £2745.00
  • £3294.00 inc VAT


Description

VZO 20 Contoil Oil Meter - (30-1000 Max 1500 litre/hr)
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 1 Litre/Pulse Reed Pulse
20mm Flanged PN40 (JIS and ANSI no additional cost)
Product Code: 92262
Max Temp 180C
Max Pressure PN40
Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser

Specification

    VZO 20 FL 180/40-RV1

    CONTOIL® oil meter VZO 20 FL 180/40-RV 1
    Ring piston meter for mineral oil, with rotatable roller counter

    Nominal diameter:                              DN 20 mm
    Connection for flanges:                      DN 20 to DIN 2501
    Nominal pressure:                              PN 40 bar
    Installation length:                              165 mm
    Installation position:                           horizontal / vertical
    Temperature, max:                             180 °C
    Measuring range (at visc. 1…20 mPa.s): 30...1500 l/h
    Max. continuous flow Qn:                   1000 l/h
    Max. measuring deviation:                  ± 1% of measured value
    Repeatability:                                     ± 0.2%
    Smallest readable value:                     0.1 l
    Registration capacity:                         10 Mio l

    With RV Reed pulser                          integrated in register unit
    Contact load max.:                             48 V AC/DC, 50 mA, 2 W
    Pulse value:                                       1 l
