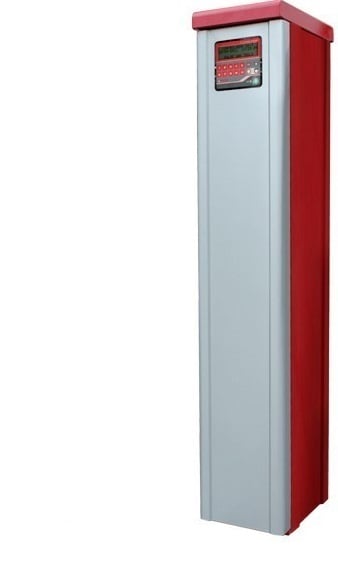

GK-7 Consumption Controller :: Totem 60 / 130 / 1000 Users

SKU: GES25136
GK-7 Consumption Controller
Mounted in Totem
Supply and control of fuel
60, 130 or 1000 User memory



  • Communication Kits
  • User Memory
  • £1706.55
  • £2047.86 inc VAT
Qty:

Description

  • Weight
    45.0000 kg
  • SKU
    GES25136

GK-7 Consumption Controller :: Totem 60 / 130 / 1000 Users

GK-7 Consumption Controller
Mounted in Totem
Supply and control of fuel
60, 130 or 1000 User memory

**Optional Multi-hose model to connect upto 16 dispensers to one system

**Optional Communication systemand management software

The GK-7 is suitable for the supply and control of fluids
Allows use to only authorised users
Identification through user ID, Key fob and vehicle ID

User identification: Only identifies the individual users. It is useful for when managers want to identify only the person who is supplying.
Vehicle identification: Only identifies the vehicles. Used in installtions where you only want to identify and control the vehicles and their consumption, without identifying the users.
User and vehicle identification: It is the most complete system, offering a high level of security. It is specially useful for installations with a big number of users and/or vehicles, or where the users are often changing the vehicle.

Available with optional communication kits
Communication kits include software to manage the GK-7.

Communication options:
  • Memory Key - Download up to 200 services on to the memory key and upload to PC via a converter and USB
  • USB Cable - Connect to GK-7 via wired USB
  • Zigbee-USB(Wireless) - Connect wirelessly with USB connection to PC
  • Ethernet  - Connect to GK-7 via wired Ethernet connection to PC
  • Zigbee-Ethernet (Wireless) - Connect wirelessly with Ethernet connection to PC

**GK7 available in various supply kits and compact enclosures. Please contact for details.

Specification

    Technical data:
    Voltage: 230 or 110 VAC (available version at 12/24 VDC)
    Built-in supply inlet filter
    Front: LCD Display alphanumeric of 4 lines and 20 characters
    Keypad of 14 keys
    Consumption: 30 W
    Service Temperature: from 0 ºC to 40 ºC
    Relative Air Humidity: among 20 and 80 %
    Built-in identification key reader

    Controller features:
    It controls:
    Supply date and hour
    Users
    Vehicles
    Supplied litres by users and/or vehicles
    Car mileage (or hours) and consumption
    Tank litre stock
    The services are saved in memory and can be transferred to a computer.

    Dimensions: 340x400x1500mm
