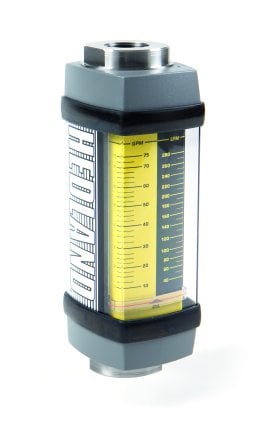

Hedland VA Flow meter for Oil and Petroleum: 3/4" BSP, Stainless Steel
ZoomCreated with Sketch.

Hedland VA Flow meter for Oil and Petroleum: 3/4" BSP, Stainless Steel

SKU: HP702S
Hedland VA Flow Meter
For Oil and Petroleum Fluids
Stainless Steel Construction
Pressure up to 345 Bar / 5000 PSI
3/4" BSP Connections
Flow ranges from 1-115 LPM
Calibrated on 0.876 SG

Ξ Optional Flow Switch and Test Kit version


  • Flow Range
  • Switches
  • Test Kit and Reverse Flow
  • $1202.44
  • $1442.93 inc VAT
Qty:

Description

  • Weight
    1.6000 kg
  • SKU
    HP702S

HP702S

Hedland VA Flow Meter
For Oil and Petroleum Fluids
Stainless Steel Construction
Pressure up to 345 Bar / 5000 PSI
3/4" BSP Connections
Flow ranges from 1-115 LPM
Calibrated on 0.876 SG

Also available in Brass and Aluminium and with NPT or SAE connections (Please contact for more details)

The Hedland Flow Meter is a variable area (rotameter) instrument. A precision machined, sharp-edged Orifice is located within the piston assembly and forms an annular opening with the contoured metering cone. The piston assembly carries a cylindrical PPS/ ceramic magnet that is magnetically coupled to an external flow Indicator that moves precisely, in direct response to movement of the piston. A calibrated spring opposes flow in the forward direction. This spring decreases viscosity sensitivity and allows the flow meter to be used in any position, including inverted.


Features:
  • Install in any position
  • 360° rotatable guard/scale
  • No electronics needed to obtain a reading
  • No flow straighteners or special piping required
  • Relatively insensitive to shock and vibration
  • Magnetic coupling eliminates the need for mechanical linkages that wear, loosen and leak over the functional life of competitive meters
  • Temperature up to 116 °C
  • Pressure up to 241 bar max
  • Accuracy ±7% full scale
  • Repeatability +/- 1%
  • Custom scale options to meet exact application requirements


Ξ Optional Flow Switch and Test Kit version


Application Examples

  • Hydraulic Power Units
  • Gear Boxes
  • Test Benches
  • Bearing Lubrication Flow Monitoring
  • Hydraulic Linear Positioning
  • Mineral Oils
  • Hydraulic Tools and Components
  • Power Steering Analyzing
  • Transmission Fluid Analyzing
  • Mobile Construction Equipment
  • Petrol, Kerosene, Methanol Flow Monitoring

Specification


    Hedland VA Flow Meter
    For Oil and Petroleum Fluids
    Aluminium Construction
    3/4" BSP Connections
    Flow ranges from 1-115 LPM
    Calibrated on 0.876 SG

    Features:
    • Direct reading
    • Install in any position
    • 360° rotatable guard/scale
    • Easier-to-read linear scale
    • No flow straighteners or special piping required
    • Relatively insensitive to shock and vibration
    • Good viscosity stability
    • Temperature up to 240 °F
    • Accuracy ±2% full scale
    • Repeatability ±1%
    • Special scales available
    • Calibrated for .876 S.G.


    Flow-Alert Micro Switch
    • Automatically signals alarm if flow is too high or too low
    • Automatically opens or closes electrical circuits
    • Triggers warning lights, buzzers and other devices
    • Shuts down pumps and/or other equipment to protect your operation against permanent damage

    Enclosure:
    Material: Anodized and epoxy powder-coated aluminum with polycarbonate lens.
    Seals: Silicone gasket between enclosure and lens.
    Viton  O-rings between enclosure and flow meter body.
    Connection: Pig-tail conductor (standard) with water-tight strain relief.
    Other connections, including quick-disconnect, are available – consult factory for details.
    Fastener: T303 SS
    Rating: NEMA 12 & 13 (IP65)

    Electrical Circuitry:
    Adjustable Flow-Alert™ signal: single (1) or double (2) switch, pre-wired single-pole, double-throw (SPDT)
    Adjustable over the entire flow measuring range.
    10A @ 250 VAC maximum, 0.5A @ 125 VDC maximum.
    The single switch model is supplied with a 34" length of 4-wire #18 AWG jacketed cable.
    The double switch model is supplied with an 18" length of 7-wire #16 AWG jacketed cable.


    Flow-Alert Reed Switch
    • No mechanical linkage
    • Automatically signals alarm if flow is too high or too low

    Enclosure:
    Material: Anodized and epoxy powder-coated aluminum with polycarbonate lens.
    Seals: Silicone gasket between enclosure and lens.
    Viton O-rings between enclosure and flow meter body.
    Connection: 4-pin (Protection Class IP65)
    Fastener: T303 SS
    Rating: NEMA 12 & 13 (IP65)


    Electrical Specifications:
    Adjustable Flow-Alert™ signal: single (1) or double (2) reed switch, pre-wired singlepole,
    single-throw (SPST-NO) normally open; or single-pole, single-throw (SPST-NC)
    normally closed. UL recognized and CSA certified with high or low flow limit setting,
    adjustable over the entire flow measuring range.

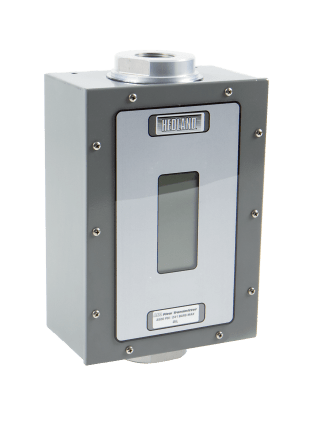

    MR Flow Transmitter
    • Full line of multi-functional remote flow indicators and transmitters
    • Operate as part of a totally integrated electronic process control/data acquisition system
    • Non-contact sensor electronics
    • Electronic signal conditioning circuit
    • Digital flow rate and total flow indication
    • Proportional analog output
    • In-field compensation for:
    Specific gravity of all fluids
    Viscosity of petroleum based fluids


    Materials:
    2024 - T351 Anodized aluminum body, piston and cone
    C360 Brass body, piston and cone
    T303 Stainless body, 2024 - T351 Anodized aluminum piston and cone
    (Oil, PE, WBF, & Air meters)
    T303 Stainless body, C360 Brass piston and cone (Water meters)
    T316 Stainless body, piston and cone


    Enclosure:
    Material: Anodized and epoxy powder-coated aluminum with
    polycarbonate lens
    Seals: Silicone gaskets between enclosure and lens
    Viton® O-rings between enclosure and flow
    meter body
    Connection: 4-pin (Protection Class IP65) standard, see Figure 2
    Other connections available - consult factory for details
    Fasteners: T303 SS
    Rating: NEMA 12 & 13 (IP 52/54)

    Electrical Specifications:
    Power Requirement: 0-5 VDC Output: 10-30 VDC @ 0.75W maximum
    0-10 VDC Output: 12-30 VDC @ 0.75W maximum
    4-20 mA Output: loop-powered, 30 VDC maximum
    Power Consumption: 25 mA maximum
    Analog Outputs: 0-5 VDC and 0-10 VDC into 10,000 Ohms minimum
    4-20 mA into 1000 Ohms maximum
    Circuit Protection: Reverse polarity and current limiting
    Transmission Distance: 4-20 mA limited by cable resistance
    0-5 VDC and 0-10 VDC 1000 feet (300 m) maximum
    Isolation: Inherently isolated from the piping system
    Display: Fixed or toggle modes of operation for rate and totalizer display
    8 digit, 0.70" high numeric display for rate and total
    8 digit, 0.35" high alphanumeric display for units and setup


    Test Kit

    Includes Pressure gauge and Load valve
    Pressure Gauge: Glycerin dampened, 0 – 5000 psi / 0 – 345 bar pressure range available
    Load Valve: Needle Valve produces ΔP up to 5000 psi / 345 bar

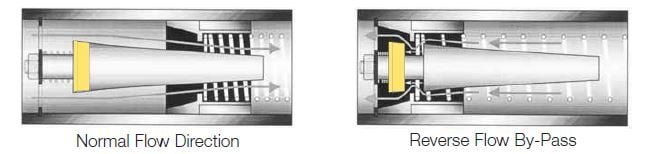

    Reverse Flow By-Pass


    Features a two-piece cone that responde to flow in primary flow direction in same manner as standard design.
    Flow in reverse direction cases lower cone shuttle to shift moving below the sharp-edged piston orifice.
    This shift allows the fluid to flow freely in the reverse direction.
