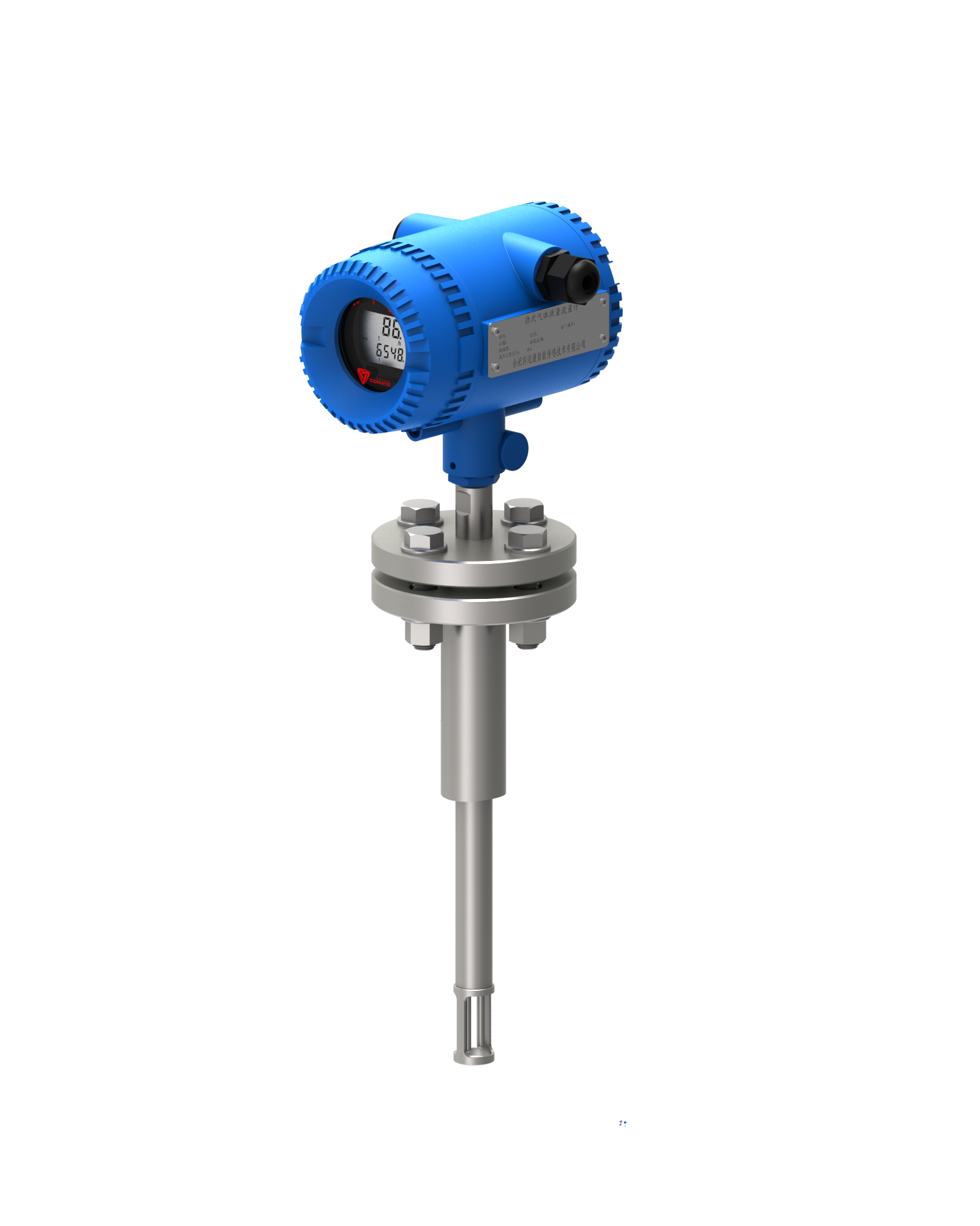

Insertion Thermal Mass Flowmeter DN200 - DN400

SKU: .TGF450

TGF450 Thermal Gas Flow Meter is a specially designed for compressed air,nitrogen gas flow measurement solution. It can provide a stable and accurate measurement on a more economical cost

  • Process Connection
  • Probe Length
  • Transmitter
  • Sensor Material
  • Pressure Rating
  • Flange Connection
  • Max Temperature
  • Enclosure
  • Outputs
  • Power Supply
  • Pipe Size
  • Measurement Range
  • $2290.68
  • $2748.81 inc VAT
Qty:

Description

  • SKU
    .TGF450

TGF450 Thermal Gas Flow Meter is a specially designed for compressed air,nitrogen gas flow measurement solution. It can provide a stable and accurate measurement on a more economical cost

Direct mass flow measurement, do not require temperature or pressure compensation
Isolated design for electrical parts to eliminate interference
Optimized power efficiency design, supper low power consumption down to 60mA@24VDC
Adapted to any power source
2 lines LCD display with unit displaying
Standard output is pulse and RS485, Hart@4~20mA and 4~20mA is available
Metric/British Unit selectable

Password protecting function and self-diagnose function

Specification

    Basic model:
    Insertion type basic model ,integral display, for air and N2

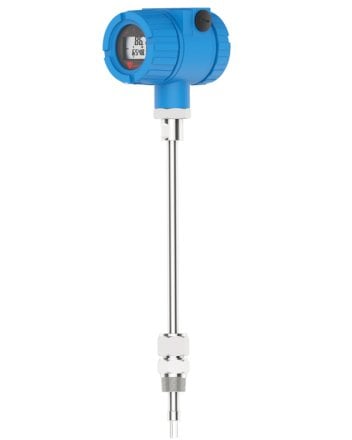

    11mm probe with insertion connection with ball valve, anti-ejection design,( flow rate over 90Nm/s or pipe size larger than DN400, will use 19mm
    probe with 1" NPT connection)
    Probe Length (DN200 - DN400) 440 mm
    1.5%RD+0.5%FS in 0.6~60Nm/s or 0.9~90 Nm/s
    LCD display with 3 setting button, configuration preset.
    frequency/pulse + 4~20mA output, RS485 Modbus, 24VDC power supply
    316 SS sensor, other wetted part is 304 SS
