Insertion Thermal Mass Flowmeter Flanged for DN25 - DN500

Insertion Thermal Mass Flowmeter Flanged for DN25 - DN500

SKU: .TGF600

TGF600 Insertion Thermal Mass Gas Flowmeter
Stainless Steel Construction
19mm probe to suit pipes DN25 - DN500
Flanged Connections DIN, ANSI, JIS +Ball Valve
Hot Tap kit option
IP65 LCD Display, DC or AC powered optionally
Accuracy 1.5%RD +/-0.5% OFS

  • Process Connection
  • Probe Length
  • Transmitter
  • Sensor Material
  • Pressure Rating
  • Flange Connection
  • Max Temperature
  • Enclosure
  • Outputs
  • Power Supply
  • Pipe Size
  • Measurement Range
  • £3310.39
  • £3972.47 inc VAT


Description

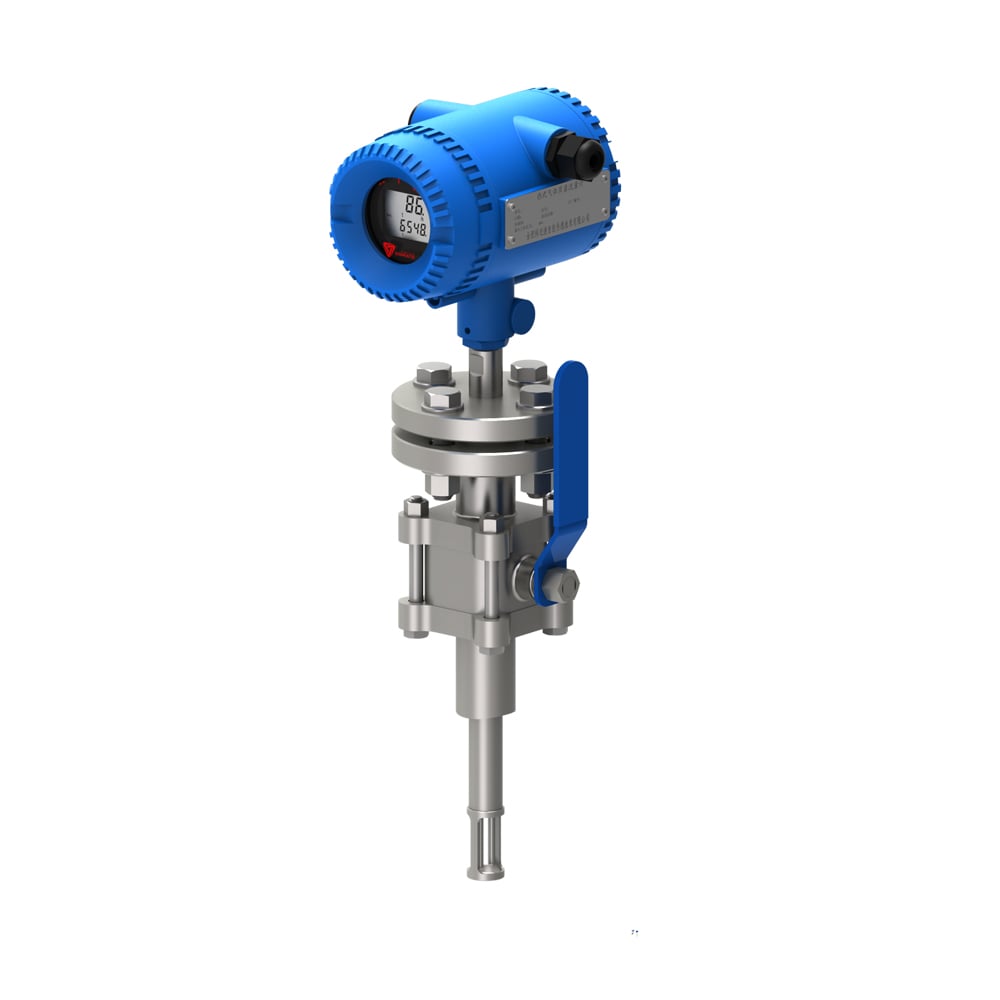

TGF600 Insertion Thermal Mass Gas Flowmeter
Stainless Steel Construction
19mm probe to suit pipes DN25 - DN500
Flanged Connections DIN, ANSI, JIS +Ball Valve
Hot Tap kit option
Local Display or Remote option
IP65 LCD Display, DC or AC powered optionally
Accuracy 1.5%RD +/-0.5% OFS

This range features the TPA600 circuit board which introduces faster and more powerful processing than it’s predecessors. Plus clean two-line LCD readouts showing comprehensive process information to users with both analogue and digital signal outputs of flow rate and sensor status diagnostics.

Password protection  function and self-diagnosis function

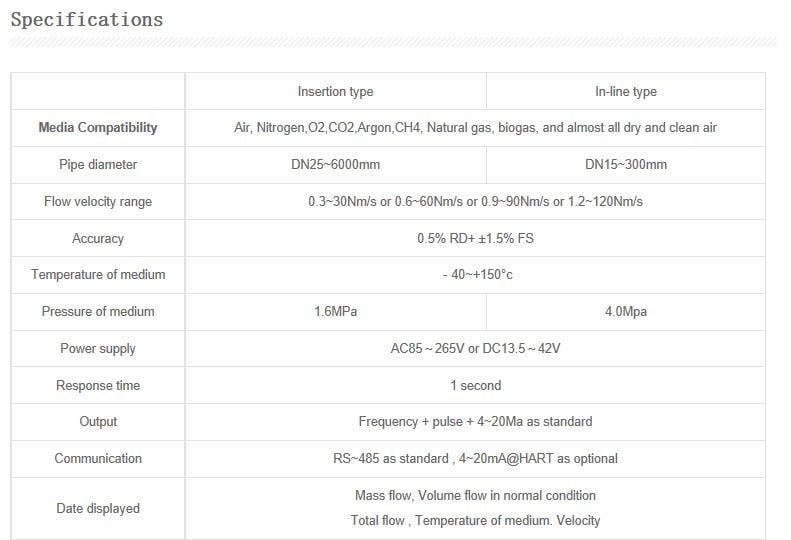

Specification

    TGF600 Insertion Thermal Mass Gas Flowmeter
    Stainless Steel Construction
    19mm probe to suit pipes DN25 - DN500
    Flanged Connections DIN, ANSI, JIS +Ball Valve
    Hot Tap kit option
    Local Display or Remote option
    IP65 LCD Display, DC or AC powered optionally
    Accuracy 1.5%RD +/-0.5% OFS

    100:1 turn down ratio in 5 ranges:
    0.3 - 30Nm/s
    0.6 - 60 Nm/s
    0.9 - 90Nm/s,
    1.2 - 120Nm/s
    1.5 - 150Nm/s

    Accessories available :
    • Anti-ejection design (safety design prevents ejection under pressure
    • Ball valve
    • Hot tap driller
    • Hot tap holder
    • Degreasing for Oxygen
