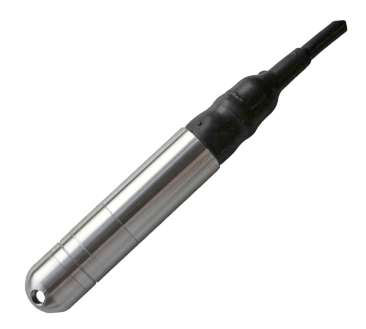

IWSL - Submersible level transmitter with Water Approval
SKU: IWSLSubmersible Level transmitter- Silicone Sensor
1 mWG to 100 mWG - Choose from options
Rugged Stainless steel, Silicone piezo-resistive sensor
Accuracy: <±0.1% FS BFSL (0.06% optional)
Description
Submersible Level transmitter- Silicone Sensor
1 mWG to 100 mWG - Choose from options
Rugged Stainless steel, Silicone piezo-resistive sensor
Accuracy: <±0.1% FS BFSL (0.06% optional)
1 mWG to 100 mWG - Choose from options
Rugged Stainless steel, Silicone piezo-resistive sensor
Accuracy: <±0.1% FS BFSL (0.06% optional)
The IWSL has been designed for continuous submersion in water applications. The IWSL uses piezo‐resistive sensing technology with media isolated silicone design and a stainless steel diaphragm. It offers excellent stability and repeatability with the resolution required for use in river and reservoir measurement. Housed within a 316L stainless steel housing, this submersible level transmitter is the ideal product for reliable and repeatable hydrostatic level measurement. Every device is temperature compensated and calibrated, supplied with a traceable serial number and calibration certificate. The electronics incorporate a microprocessor based amplifier, this means that there are no adjusting pots and therefore the electronics are very stable.
Specification
Specifications:
• Minimum level range | 1mWG |
• Maximum level range | 100mWG |
• Reference | Gauge, Sealed Gauge or Absolute |
• Output | millivolt/4-wire, 4-20mA/2-wire, 0-10V/3-wire, 0.5 to 4.5V/3-wire ratiometric |
• Supply Voltage | 3-12V dc/millivolt, 9-32V dc/2-wire, 14-32V dc/3-wire, 5V dc/ratiometric |
• Accuracy | ≤±0.1% FSO BFSL, ≤±0.06% optional |
• Sensor Type | Stainless Steel Silicon |
• Process Connection | Self flushing nose cone, G1/4" when removed |
• Electrical Connection | Vented cable and strain relief |
• IP Rating | IP68 Fully submersible |
• Cable sheath material | PVC, PUR, FEP, TPE |
• Diaphragm Material | stainless steel 1.4435 (316 L) |
• Process Connection Material | stainless steel 1.4404 (316L) |
• Temperature Range | -20 to +60°C non freezing |
• Optional Extra's | Measurement range, output and supply versions, cable type and accuracy |
