Low Power Multi-channel M2M Data Logger

SKU: LPMDL-1101-2-2-2

GSM / GPRS Low Power, battery operated Multi-channel Data Logger (24V DC optional)
Ideal for monitoring various industrial sensors.
NO on-going costs....
Price includes SIM card and standard monthly data package
Price includes Web Portal access (View/Download data & set SMS, e-amail, API Alarms)

2x 4-20mA Inputs
2x Pulse Inputs (Reed or OC)
2x Contact Event inputs
5 years + battery life AA Alkaline (6000 transmissions) High power Lithium option
IP68 Ingress Protection
Built-in Antenna or remote Antenna option

  • Power
  • $361.05
  • $433.26 inc VAT
Qty:

Description

  • SKU
    LPMDL-1101-2-2-2



LPMDL-1101-2-2-2


GSM / GPRS Low Power, battery operated Multi-channel Data Logger (24V DC optional)
Ideal for monitoring various industrial sensors.
Price includes SIM card
Price includes Web Portal access (View/Download data & set SMS, e-amail, API Alarms)


Various radio technologies including NB-IOT and LoRa also available.
Ideal for monitoring industrial sensors : Level, Pressure, Flow, moisture, temperature or any others parameters.

SIM Card included. (Will last upto 10 Years based on data allowance vs typical usage)

2x 4-20mA Inputs
2x Pulse Inputs (Reed or OC)
2x Contact Event inputs
5 years + battery life, 2x AA Alkaline (6000 transmissions) High power Lithium or 24V DC option
IP68 Ingress Protection
Built-in Antenna or remote Antenna option

 Features:

  • The installation of this field device is simple and user friendly as it does not require any power or communication infrastructure
  • Data viewing and retrieval is via secure server/website (Cloud based) You have your own Login/Password to contol and view all devices and thier historical data in graphical or tabular format. You can also allocate devices and asign Login's/Passwords to your customers or departments etc
  • IOS and android phone App available
  • Online graphing and data analysis with Custom Dashboard on request
  • Download to .CSV file
  • Configurable metering and transmission periods
  • Remote Re-configuration over the AIR
  • 12 bit ADC / precision 0.5%
  • Google maps location and quick view feature
  • Restricted access via password login
  • Set Alerts/Alarms : User configurable via website : forward to multiple email & SMS contacts
  • Available with or without EEPROM

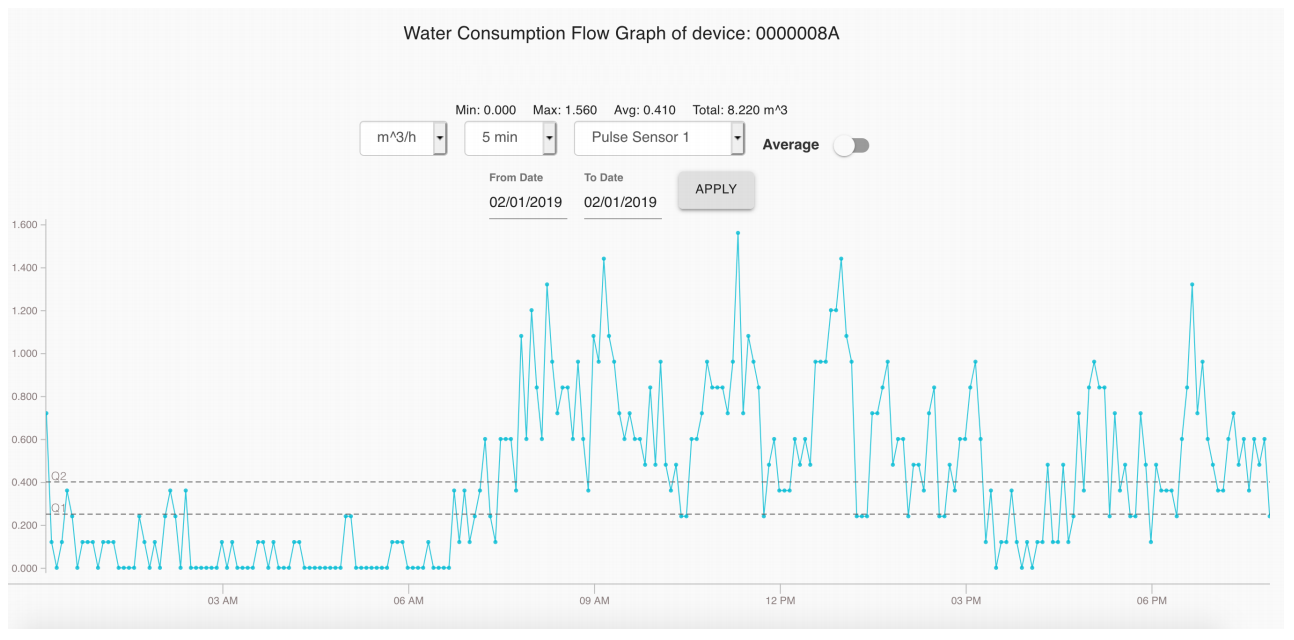

Standard Graph, use Mounse & wheel to zoom in/out etc

Specification

    LPMDL-1101-2-2-2


    GSM / GPRS Low Power, battery operated Multi-channel Data Logger (24V DC optional)
    Ideal for monitoring various industrial sensors.
    NO on-going costs....
    Price includes SIM card and standard monthly data package
    Price includes Web Portal access (View/Download data & set SMS, e-amail, API Alarms)


    Various radio technologies including NB-IOT and LoRa also available.
    Ideal for monitoring industrial sensors : Level, Pressure, Flow, moisture, temperature or any others parameters.

    SIM Card included. (Will last upto 10 Years based on data allowance vs typical usage)

    2x 4-20mA Inputs
    2x Pulse Inputs (Reed or OC)
    2x Contact Event inputs
    5 years + battery life, 2x AA Alkaline (6000 transmissions) High power Lithium or 24V DC option
    IP68 Ingress Protection
    Built-in Antenna or remote Antenna option



    Example of Dashboard design service.
