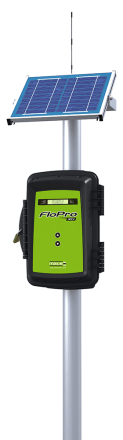

Mace FloPro XCI Area Velocity Flow Meter
SKU: 850-366-850-328AVAccess your data remotely with WebComm Free Internet Cloud Portal
Description
Easily configure with MACE FloCom+ software
♦ Free configuration and diagnostic software
♦ Powerful, easy to use Windows® interface
♦ Painless point ‘n’ click channel calibration
♦ No proprietary coding knowledge required
Access your data remotely with MACE WebComm
Low tariff SIM card provided by us or use your own compatible card. No Web subscription, free access.
♦ MACE WebComm card for GSM/3G gives remote access to your data
♦ Card is powered by and housed in the FloPro XCi
♦ Data is pushed from your FloPro XCi device to the MACE Data Server where it is available for retrieval on your PC or smartphone
♦ SMS/Email alert subscription service available
Flume & weir equations built-in
Native support for:
♦ Rectangular weirs
♦ V-notch weirs
♦ Parshall flumes
♦ Replogle, Palmer-Bowlus flumes
♦ Lookup table for other rated structures
♦ Multiple instances of each flume/weir
Add-on cards for flow metering, flow monitoring and data logging
XCi – Multiple cards for multiple sensor applications. The XCi platform is expandable and future proof, only add cards as and when you need them.
The XCi (multiple card interface) developed by MACE for the FloPro, AgriFlo and HydroMace allows the user to connect just about any sensor. Users can install any combination of the MACE FloSeries3 cards shown below, in the five available card slots of an XCi device. Choose the right card/s for your application to tailor the device to your exact monitoring requirements.
Doppler card
The FloSeries3 Doppler card provides the input for connecting MACE Doppler ultrasonic velocity sensors.
Each MACE Doppler ultrasonic velocity sensor is terminated with a 9-pin d-connector that plugs in to the Doppler card. The sensor cable is securely attached to the card by tightening the thumb screws.
Compatible sensors:
MACE Doppler ultrasonic insert velocity sensor

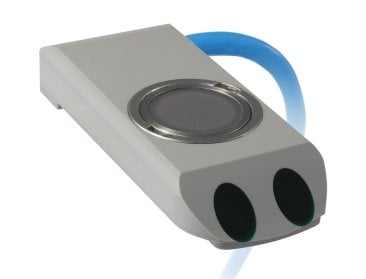

MACE Doppler ultrasonic area/velocity sensor
MACE Doppler ultrasonic velocity sensor
I/O (input/output) card
The FloSeries3 I/O card supports seven sensor inputs and four control outputs including 4-20mA, voltage and digital.
The card also supplies 12V to power your add-on sensors.
Compatible sensors:

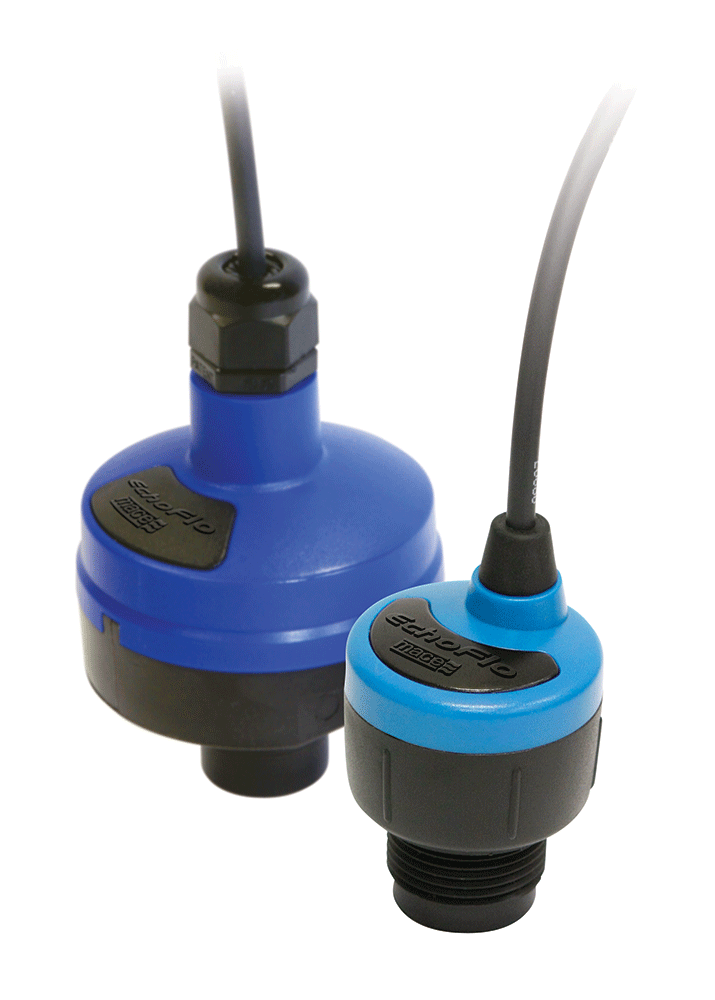

MACE EchoFlo ultrasonic depth sensor (eg. storage, fuel tank, channel level)
Water quality sensors (eg. pH,DO/EC)
Weather sensors (eg. rainfall, wind speed & direction)
Engine management (eg. temperature, pressure, RPM)
Water Quality sampler
Pulse I/O card
The FloSeries3 Pulse I/O card powers (+5VDC or + 12VDC) a single pulsing flow sensor and provides a pulse output.
This allows an XCi device the ability to sense pulses from non-MACE flow sensors
Compatible sensors:
Insertion Flow Meters
Full bore magmeters
FloSI card
The FloSerie3 FloSI card provides an SDI-12 or ModBus output to interface an XCi device to SCADA systems.
SCADA systems
3rd party data loggers
SDI-12 Master card
The FloSeries3 SDI-12 Master card provides an XCi device with the ability to control and log SDI-12 sensors.
Compatible sensors:
Multi-parameter water quality probe (Sonde)
Level sensors (eg. storage, fuel tank, channel level)
Water quality sensors (eg. pH,DO/EC)
Weather sensors (eg. rainfall, wind speed & direction)
WebComm card
The MACE WebComm card provides all MACE FloSeries3 devices (FloPro XCi, AgriFlo XCi and HydroMace XCi) the ability to automatically upload internal logged data to the web-based MACE Data Server via mobile telephone networks.
The MACE Data Server is integrated with the www.macemeters.com and www.maceusa.com websites, and allows easy access for retrieval of field data. Unlike “conventional” data services, MACE will provide this data server free of charge to its’ customers (subject to MACE SLA).

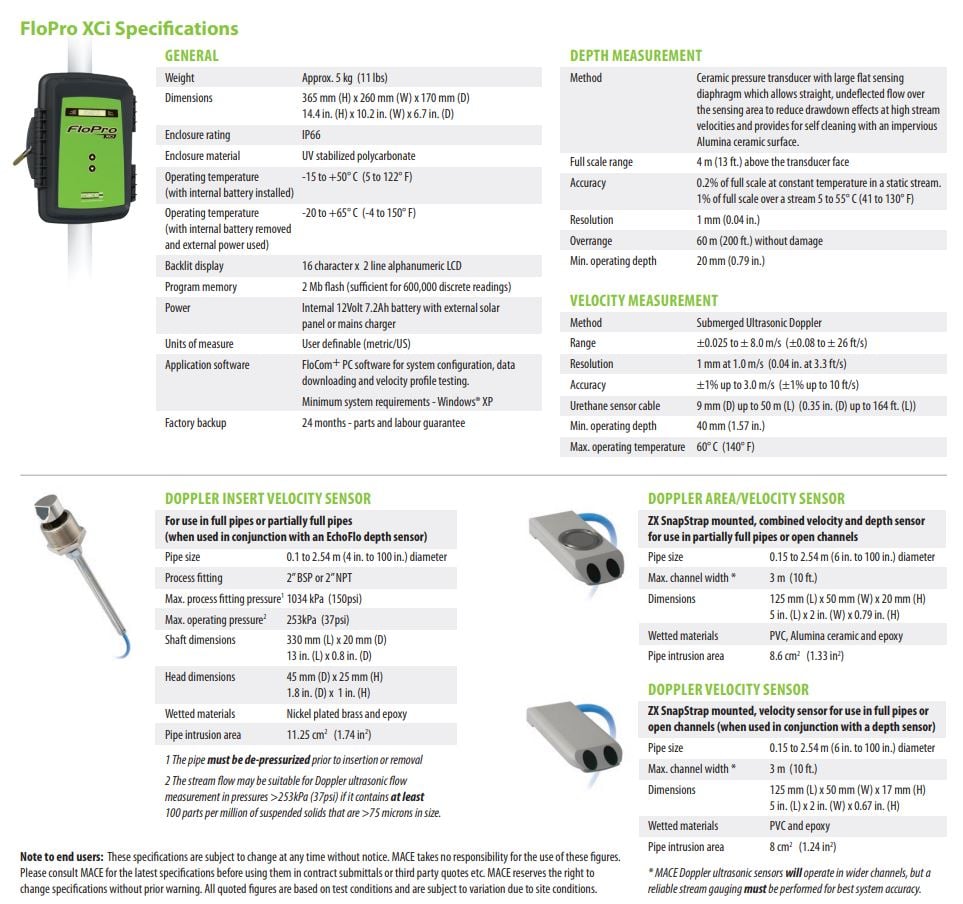

Specification
