Mace HVflo XCI Portable Area Velocity Flow Meter
Portable area velocity flow meter
Sutiable for open channel and partial full Pipes
Battery powered - 180 Days of logging at 5 minute intervals
Data logging and Telemetry options
MASP Technology for advanced signal processing
HVFlo XCi utilises doppler ultrasonic velocity sensors utilizing the MACE Advanced Signal Processing (MASP) technology. This technology allows the sensor to “see” across the entire stream profile, providing a true average velocity. MASP technology allows HVFlo XCi to achieve superior results from a very wide range of flow conditions. The technologyensures that even during full pipe, surcharge, or reverse flow conditions, HVFlo XCi will provide accurate, repeatable results every time. The HVFlo XCi also offer the option to add a WebComm card to give remote access to your data via GSM/3G cell networks. WebComm can also be configured to provide alarms to an unlimited number of personnel within an organisation.
Key Features of the HVFlo XCi Include -
♦ Large data storage - typically 2 years @ 5 minute logging
♦ 180 day battery life, logging @ 5 minute intervals
♦ Rechargeable Battery or Solar Power options
♦ Remotely access data - Webcomm card option, free subscription
♦ IP68 Protection
♦ Easily configure with MACE FloCom+ Software
♦ True average velocity measurement with MASP Technology
Easily configure with MACE FloCom+ software
♦ Free configuration and diagnostic software
♦ Powerful, easy to use Windows® interface
♦ Painless point ‘n’ click channel calibration
♦ No proprietary coding knowledge required
Flume & weir equations built-in
Native support for:
♦ Rectangular weirs
♦ V-notch weirs
♦ Parshall flumes
♦ Replogle, Palmer-Bowlus flumes
♦ Lookup table for other rated structures
♦ Multiple instances of each flume/weir
Access your data remotely with MACE WebComm
Low tariff SIM card provided by us or use your own compatible card. No Web subscription, free access.
♦ MACE WebComm card for GSM/3G gives remote access to your data
♦ Card is powered by and housed in the FloPro XCi
♦ Data is pushed from your FloPro XCi device to the MACE Data Server where it is available for retrieval on your PC or smartphone
♦ SMS/Email alert subscription service available
FloSeries3 Cards for XCi devices
Add-on cards for flow metering, flow monitoring and data logging
XCi – Multiple cards for multiple sensor applications. The XCi platform is expandable and future proof, only add cards as and when you need them.
The XCi (multiple card interface) developed by MACE for the FloPro, AgriFlo and HydroMace allows the user to connect just about any sensor. Users can install any combination of the MACE FloSeries3 cards shown below, in the five available card slots of an XCi device. Choose the right card/s for your application to tailor the device to your exact monitoring requirements.

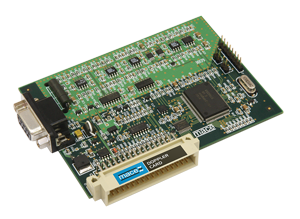

The FloSeries3 Doppler card provides the input for connecting MACE Doppler ultrasonic velocity sensors.
Each MACE Doppler ultrasonic velocity sensor is terminated with a 9-pin d-connector that plugs in to the Doppler card. The sensor cable is securely attached to the card by tightening the thumb screws.
> Download cards flyer (PDF)
MACE Doppler ultrasonic insert velocity sensor

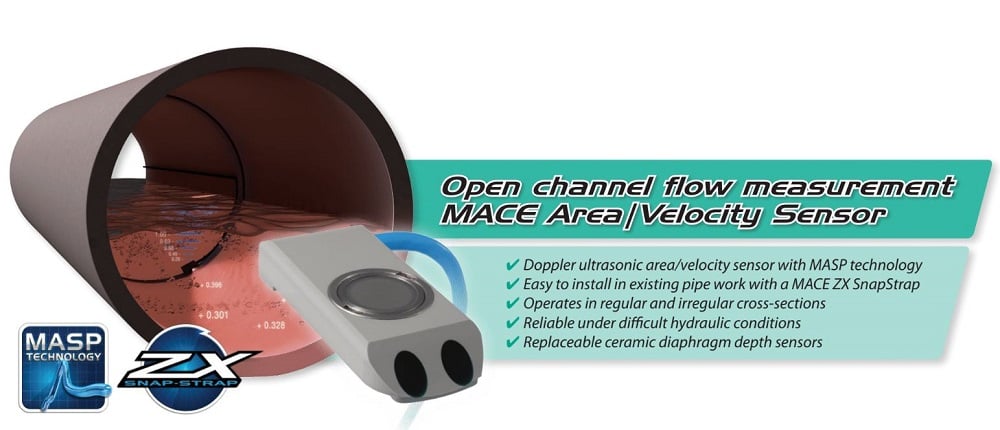

MACE Doppler ultrasonic area/velocity sensor
MACE Doppler ultrasonic velocity sensor

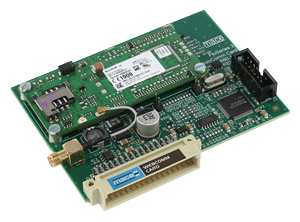

The MACE WebComm card provides all MACE FloSeries3 devices (FloPro XCi, AgriFlo XCi and HydroMace XCi) the ability to automatically upload internal logged data to the web-based MACE Data Server via mobile telephone networks.
The MACE Data Server is integrated with the www.macemeters.com and www.maceusa.com websites, and allows easy access for retrieval of field data. Unlike “conventional” data services, MACE will provide this data server free of charge to its’ customers (subject to MACE SLA).
> Download cards flyer (PDF)
