Mace HydroMace XCI

SKU: 850-367
Datalogging Telemetry platform
Can be configured with up to 5 input cards
Options for SDI-12, Analog and Digital inputs
Can be used with flow, water quality and weather sensors
Mains, battery and solar powered options
Access your data remotely with WebComm Free Internet Cloud Portal
  • Option Card 1
  • Option Card 2
  • Option Card 3
  • Option Card 4
  • Option Card 5
  • Communications Cable
  • $1337.31
  • $1604.78 inc VAT
Qty:

Description

  • SKU
    850-367

Mace HydroMace XCI
Datalogging Telemetry platform
Can be configured with up to 5 input cards
Options for SDI-12, Analog and Digital inputs
Can be used with flow, water quality and weather sensors
Mains, battery and solar powered options

The HydroMace XCi is a data logger / telemetry platform which can be used with many environmental sensor. The HydroMace XCi to monitor inputs as diverse as: Flumes & weirs, water quality sensors & rainfall gauges, drinking water flows (leak detection) and weather stations.


Key Features of the Hydromace XCI include -

♦ Multiple cards for multiple sensor applications
♦ Ready-to-go straight out of the box
♦ Remotely access data
♦ Easily configure with MACE FloCom+ Software
♦ Integration of many environmental sensors

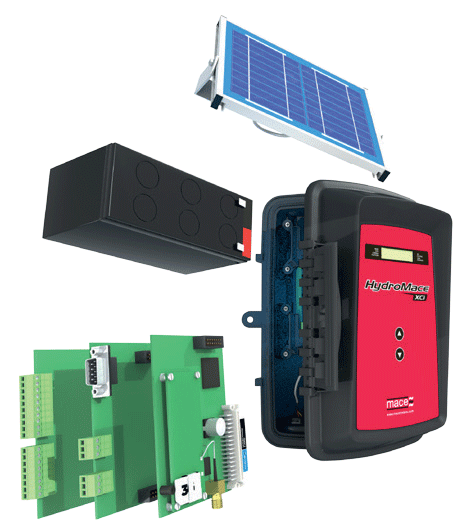

Ready-to-Go straight out of the box

The MACE HydroMace XCi system includes:

♦ Data logger
♦ Battery
♦ LCD display
♦ Solar regulator
♦ Multiple cards (application dependent)



Easily configure with MACE FloCom+ software

♦ Free configuration and diagnostic software
♦ Powerful, easy to use Windows® interface
♦ Painless point ‘n’ click channel calibration
♦ No proprietary coding knowledge required

Access your data remotely with MACE WebComm

Low tariff SIM card provided by us or use your own compatible card. No Web subscription, free access.

♦ MACE WebComm card for GSM/3G gives remote access to your data
♦ Card is powered by and housed in the FloPro XCi
♦ Data is pushed from your FloPro XCi device to the MACE Data Server where it is available for retrieval on your PC or smartphone
♦ SMS/Email alert subscription service available

SDI-12 sensor interface

♦ Installing an SDI-12 Master Card in the HydroMace XCi will give the ability to attach a wide range of SDI-12 sensors and peripherals:
♦ Plug ‘n’ play environmental sensors
♦ Water quality multi-sonde
♦ pH, DO, EC water quality sensors
♦ Weather sensors
♦ Support up to 10 sensors per SDI-12 card
♦ Powerful SDI-12 setup utility
♦ SDI-12 version 1.3 compliant

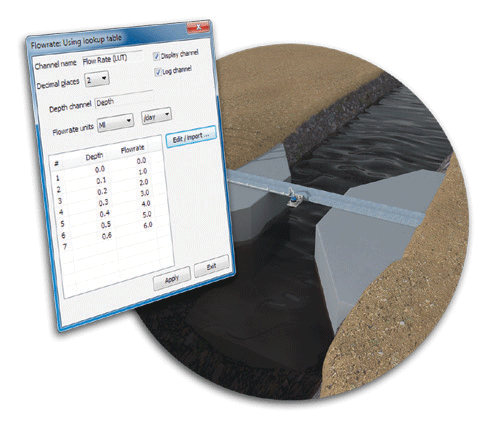

Flume & weir equations built-in

Native support for:

♦ Rectangular weirs
♦ V-notch weirs
♦ Parshall flumes
♦ Replogle, Palmer-Bowlus flumes
♦ Lookup table for other rated structures
♦ Multiple instances of each flume/weir



All this in one lockable, ruggedized, weatherproof enclosure. No more hunting around for bits and pieces. In most cases you can be up and monitoring in just a couple of hours. With the installation of a solar panel kit and WebComm card the HydroMace XCi is perfectly setup for monitoring and reporting data from remote locations.


FloSeries3 Cards for XCi devices

Add-on cards for flow metering, flow monitoring and data logging

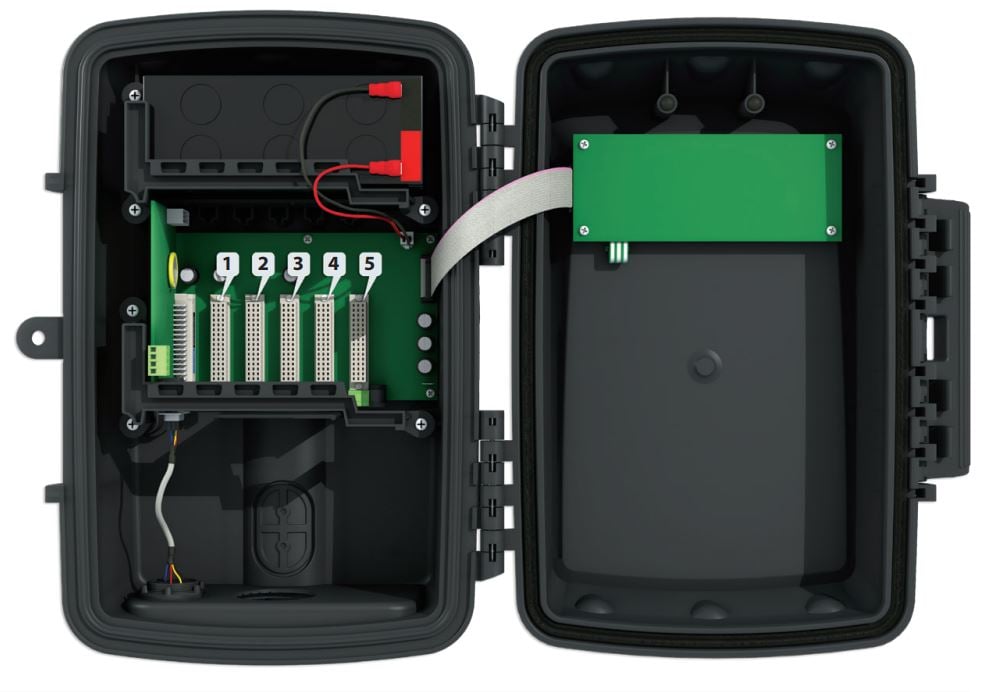

XCi – Multiple cards for multiple sensor applications. The XCi platform is expandable and future proof, only add cards as and when you need them.

The XCi (multiple card interface) developed by MACE for the FloPro, AgriFlo and HydroMace allows the user to connect just about any sensor. Users can install any combination of the MACE FloSeries3 cards shown below, in the five available card slots of an XCi device. Choose the right card/s for your application to tailor the device to your exact monitoring requirements.

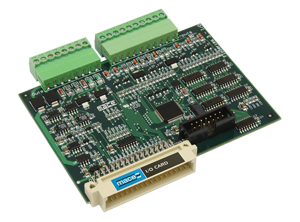

 I/O (input/output) card

The FloSeries3 I/O card supports seven sensor inputs and four control outputs including 4-20mA, voltage and digital.

The card also supplies 12V to power your add-on sensors.

> Download cards flyer (PDF)

Compatible sensors:

MACE EchoFlo ultrasonic depth sensor (eg. storage, fuel tank, channel level)
Water quality sensors (eg. pH,DO/EC)
Weather sensors (eg. rainfall, wind speed & direction)
Engine management (eg. temperature, pressure, RPM)
Water Quality sampler

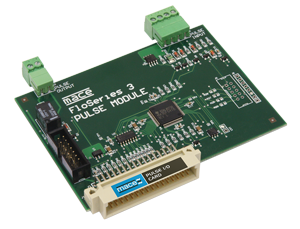

Pulse I/O card

The FloSeries3 Pulse I/O card powers (+5VDC or + 12VDC) a single pulsing flow sensor and provides a pulse output.

This allows an XCi device the ability to sense pulses from non-MACE flow sensors

> Download cards flyer (PDF)

Compatible sensors:

Insertion Flow Meters
Full bore magmeters

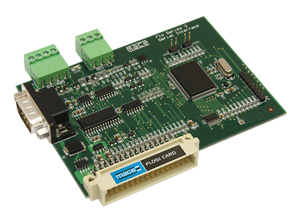

FloSI card

The FloSerie3 FloSI card provides an SDI-12 or ModBus output to interface an XCi device to SCADA systems.

> Download cards flyer (PDF)

SCADA systems
3rd party data loggers

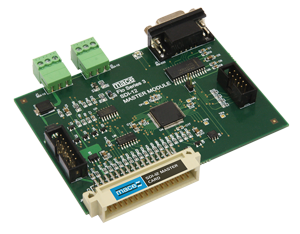

SDI-12 Master card

The FloSeries3 SDI-12 Master card provides an XCi device with the ability to control and log SDI-12 sensors.

> Download cards flyer (PDF)

Compatible sensors:

Multi-parameter water quality probe (Sonde)
Level sensors (eg. storage, fuel tank, channel level)
Water quality sensors (eg. pH,DO/EC)
Weather sensors (eg. rainfall, wind speed & direction)


WebComm card

The MACE WebComm card provides all MACE FloSeries3 devices (FloPro XCi, AgriFlo XCi and HydroMace XCi) the ability to automatically upload internal logged data to the web-based MACE Data Server via mobile telephone networks.

The MACE Data Server is integrated with the www.macemeters.com and www.maceusa.com websites, and allows easy access for retrieval of field data. Unlike “conventional” data services, MACE will provide this data server free of charge to its’ customers (subject to MACE SLA).

> Download cards flyer (PDF)
