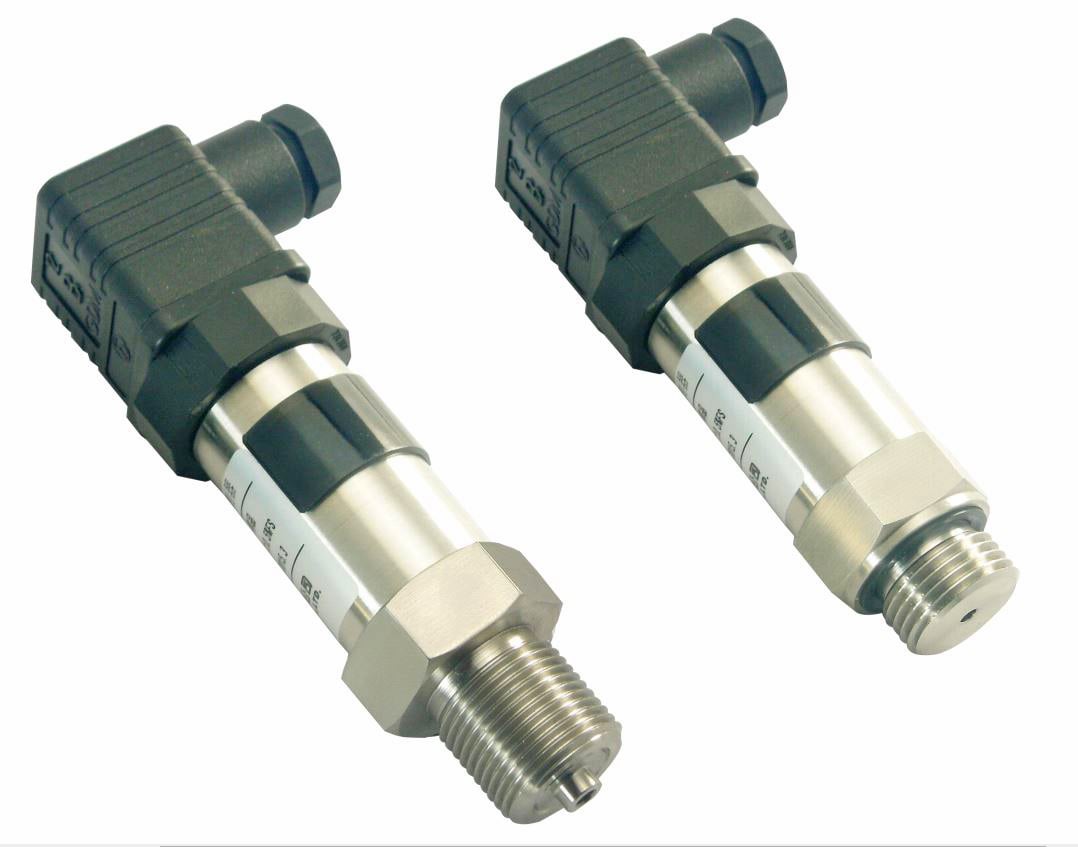

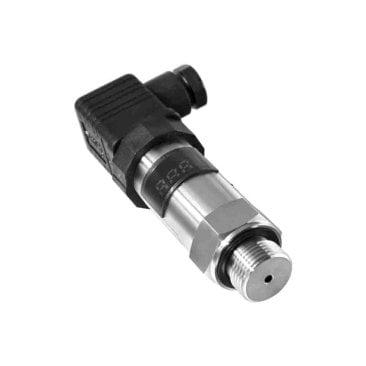

MPM4891 Pressure Transducer with built-in Display 4-20mA Output (2-wire)

SKU: MPM4891
Stainless Steel Pressure Transmitter with LED Display
Bar Gauge Pressure +/-0.5% F.S Acc
OperationTemp -20 to +75℃
4-20mA Output (2-wire) 11-28V DC
1/2" BSP Male thread, Viton Seal (See options)
Elec Connection : Hirschman plug
  • Pressure Range
  • £117.00
  • £140.40 inc VAT
Qty:

Description

  • SKU
    MPM4891

MPM4891 Industrial Pressure Transducer with 3 digit LED Display, 4-20mA Output (2-wire)

Pressure Range available:-0bar...400bar
Pressure Type:Gauge/Absolute/Sealed Gauge
Over-pressure:1.5 times FS
Accuracy:0.5% FS
OperationTemp.:-20~+75℃
PowerSupply:11~28VDC
Output Signal:4~20mA DC(2-wire)
Process Connection: G1/2, G1/4,NPT 1/4 male etc
Electrical Connection:Hirschman plug
Diaphragm Material: S.S.316L, see options
Housing Material: SS1Cr18Ni9Ti (304 SS) see options

The MPM4891 is a low cost industrial pressure gauge and transmitter designed for general purpose pressure measurement. This sensor is rugged and durable, providing accurate measurement even under harsh conditions.



Specification

    MPM4891 Industrial Pressure Transducer with 3 digit LED Display, 4-20mA Output (2-wire)

    Pressure Range available:-0bar...400bar
    Pressure Type:Gauge/Absolute/Sealed Gauge
    Over-pressure:1.5 times FS
    Accuracy:0.5% FS
    OperationTemp.:-20~+75℃
    PowerSupply:11~28VDC
    Output Signal:4~20mA DC(2-wire)
    Process Connection: G1/2, G1/4,NPT 1/4 male etc
    Electrical Connection:Hirschman plug
    Diaphragm Material: S.S.316L, see options
    Housing Material: SS1Cr18Ni9Ti (304 SS) see options
