MQM - Metreg Gas Quantometer Flow Meter :: DN50, G65

SKU: MQM-G65-DN50-PN16

Nominal Size: DN50
Meter Size: G65
Connections: Wafer Design
Max Operating Pressure: 20 Bar Max (Dependent on connections)
Measuring range: 10 - 100 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3

  • Pulse Output
  • Oil Pump
  • Mechanical Index
  • Calibration
  • Thermowell
  • $1428.59
  • $1714.30 inc VAT
Qty:

Description

  • SKU
    MQM-G65-DN50-PN16


MQM - Metreg Gas Quantometer Flow Meter :: DN50, G65
Approvals according to:
PED (PED2014/68/EU), ATEX Ex-Zone 1
Nominal Size: DN50
Meter Size: G65
Max Operating Pressure: 20 Bar Max (Dependent on connections)
Measuring range: 10 - 100 m3/h
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3 (See Options)

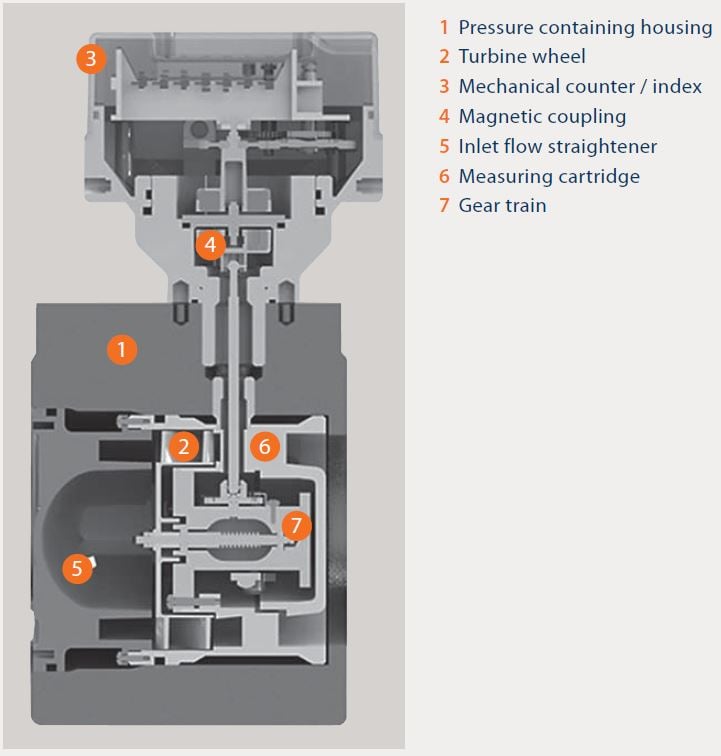

The MQM Quantometer is a volume flow meter. The flow of the gas to be measured causes the turbine rotor to rotate. The gas flow is narrowed on an annular cross section, is accelerated and directed onto the smooth-running Aluminum rotor. The number of rotations is proportional to the measured gas volume; the frequency of rotations is proportional to the actual gas flow. The rotation of the rotor is connected to a speed-reducing gear train and transmitted via a magnetic coupling from the gas pressurized area to the adjustable 8 digit roller counter in the atmospheric environment.

The MQM registers the operating volume using an eight-digit mechanical counter. Via pulses the operating volume can be transferred to an electronic volume corrector and converted to normal or standard conditions.

Specification

    MQM - Metreg Gas Quantometer Flow Meter :: DN50, G65
    Approvals according to:
    PED (PED2014/68/EU), ATEX Ex-Zone 1
    Nominal Size: DN50
    Meter Size: G65
    Max Operating Pressure: 20 Bar Max (Dependent on connections)
    Measuring range: 10 - 100 m3/h
    Meter housing: Aluminium
    Turbine wheel: Aluminium
    Index head: Composite, 8-digit
    Sensor Included: 1xLF (Reed) Typ 10 Imp/m3 (See Options)



    Key features

    • Meter size G 10 to G 1000
    • Flow rates from 16 to 1600 m3/h
    • Nominal sizes from DN 25 (1“ ) to DN 150 (6“ )
    • Pressure class PN 10/16 and ANSI Class 150
    • Rangeability 20:1 or higher depending on the operation pressure
    • Meter body made of anodized high strength Aluminum
    • Maintenance free based on permanent lubrication of the ball bearings
    • Manual lubrication of the ball bearings by means of oil pump as option
    • Index head standard made of engineered polymer material, optional made of Aluminum
    • Rotating index head (355 °)
    • Recommended straight inlet pipe ≥ 3DN and outlet pipe ≥ 2DN
    • Horizontal and vertical mounting position
    • Approval according to PED (PED 97/23/EG)
