Piusi Viscomat 70 Oil Transfer Pump :: 230vAC, 25L/min
ZoomCreated with Sketch.

Piusi Viscomat 70 Oil Transfer Pump :: 230vAC, 25L/min

SKU: 334900
Piusi Viscomat 70 Oil Pump
230vAC, 25L/min 6 bar,
1" BSP, up to 500cSt
  • $546.66
  • $656.00 inc VAT
Qty:

Description

  • Weight
    14.1000 kg
  • SKU
    334900

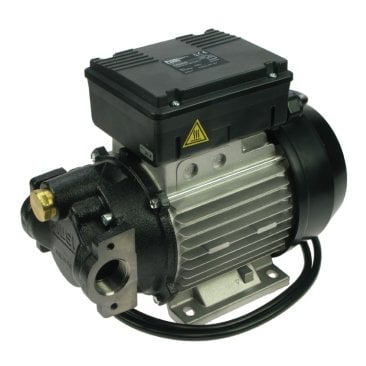

Piusi Viscomat 70 Oil Pump

230vAC, 25L/min 6 bar,
1" BSP, up to 500cSt

Electric vane pump for pumping fluids up to a maximum viscosity of 500cSt.
Continuous operation, with elevated suction, up to 6 bar pressure.
Integral adjustable bypass within the pump body.
Sintered steel rotor withe resin vanes


Specification


    • Quiet operation
    • Built in by-pass
    • High suction capacity
    • Compact design
    • Up to 500cSt viscosity
    • Maximum fluid temperature 70°C
    • Max 25L/min flow rate
    • Up to 6 Bar Pressure
    • Continuous duty rated
    • IP55 rated
    • BSP Female inlet and outlet
    • Die cast aluminium body
    • Viton seals
    • Self ventilating
    • 230vAC 50Hz
    • Maximum suction height of 2m, or 4m if a non-return valve is fitted.
