Piusi Viscomat oil transfer pump :: Gear type, 230vAC, 12 bar

SKU: 304

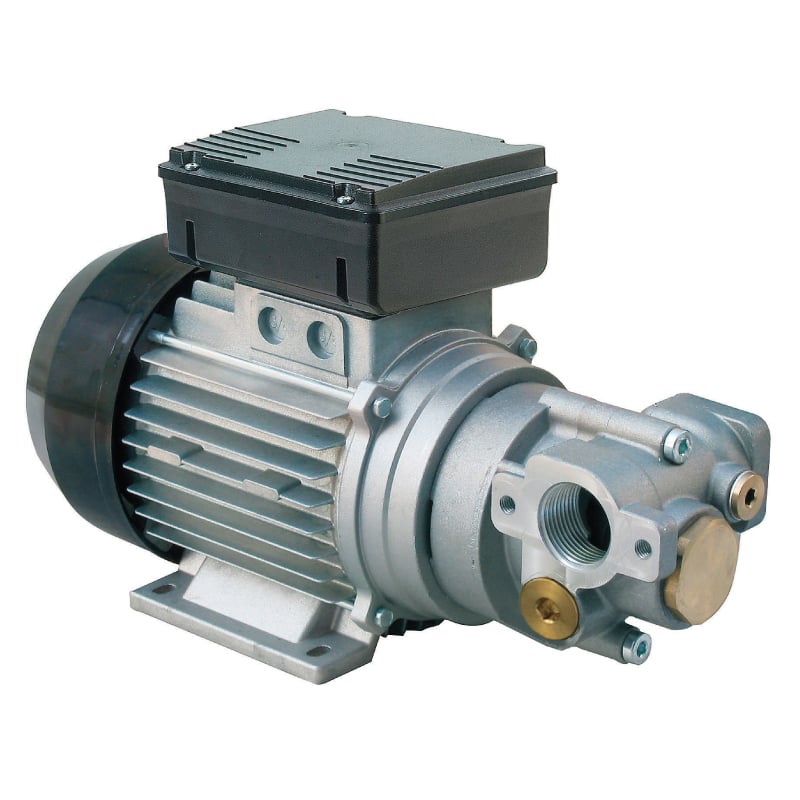

Piusi Viscomat oil transfer pump
Gear type, up to 2000cSt
9-14L/min, 1" BSP
230vAC, 12 bar
  • Flow Rate
  • £256.19
  • £307.43 inc VAT
Qty:

Description

  • Weight
    9.0000 kg
  • SKU
    304

Piusi Viscomat oil transfer pump

Gear type, up to 2000cSt
9-14L/min, 1" BSP
230vAC, 12 bar

The viscomat gear pump range is an effective solution for various oil and lubricant pumping requirements.



Specification


    • Self-priming
    • Built in Bypass valve
    • Continuous duty rated
    • IP55 protection
    • Maximum oil temperature 70°C
    • Flow rate 9-14L/min depending on the model (see options)
    • 1" BSP female inlet & outlet
    • Maximum suction height of 2m, or 4m if used with a non-return valve.
    • 12 bar pressure

Downloads
