Low Cost Submersible Level transmitter


The housing is made from 304 stainless steel as standard (See options). Every device is temperature compensated and individually calibrated. Supplied with a traceable serial number and calibration certificate as standard. PE Cable as standard with PU and PTFE options on request.

Products: 1–3 of 3
Show:20
Sort by:Recommended

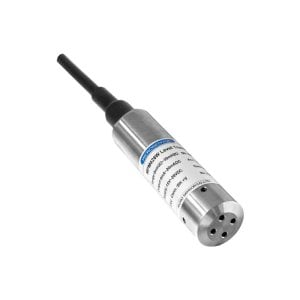

  • Submersible Level Sensor, Vented Cable, 4-20mA, 0-200 mWG (See ranges)
    Submersible Level Sensor, Vented Cable, 4-20mA, 0-200 mWG (See ranges)
    SKU: MPM426W

    Submersible Level Sensor
    0-200 mWG (See ranges)
    Stainless Steel Construction/ Viton Seals
    Accuracy(LIN.+HYS.+REP.): ± 0.25%FS (typ.)
    Power Supply: 15-28V DC
    Output Signal: 4-20mA / 1-5V / 0-10V DC
    Cable Material: PVC or Polyurethane
    Operation Temperature: -10 to +80℃
    Housing Protection: IP68
    Housing Material: SS 1Cr18Ni9Ti (304)
    Diaphragm Material: SS 316L
    Certificates: CE, CCS, CNEX, RoHS

    £198.00
    £237.60 inc VAT

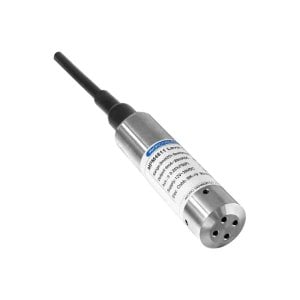

  • Submersible Level and Temperature Sensor, Vented Cable, 4-20mA, 0-200 mWG (See ranges)
    Submersible Level and Temperature Sensor, Vented Cable, 4-20mA, 0-200 mWG (See ranges)
    SKU: MPM4811

    Submersible Level and Temperature Sensor
    0-200 mWG (See ranges)
    Stainless Steel Construction/ Viton Seals
    Accuracy: ±0.5%FS (level); ±2℃(temperature);
    Power Supply: 12-30V DC
    Output Signal: 4-20mA (level) + 4-20mA (temperature)
    Cable Material: PVC or Polyurethane
    Operation Temperature: -10 to +70℃
    Housing Protection: IP68
    Housing Material: SS 1Cr18Ni9Ti (304)
    Diaphragm Material: SS 316L
    Certificates: CE, RoHS

    £250.00
    £300.00 inc VAT
  • MS200 Vented junction box for Submersible Level Sensors
    MS200 Vented junction box for Submersible Level Sensors
    SKU: MS200-JB

    MS200 Atmospheric pressure vented junction box
    c/w DIN Rail mount and wall Mounting lugs
    Designed for Submersible Level Sensors with
    vented cables

    £63.75
    £76.50 inc VAT
