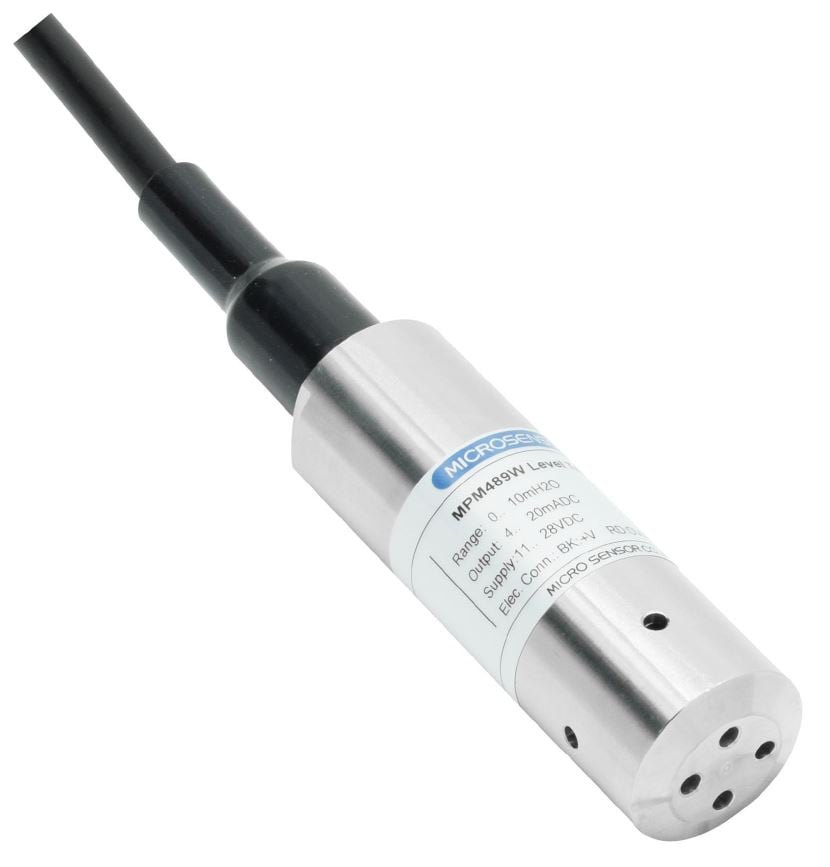

ATEX Submersible Level Sensor, Vented Cable, 4-20mA

ATEX Submersible Level Sensor, Vented Cable, 4-20mA

SKU: MPM489W

ATEX Submersible Level Sensor


Stainless Steel Construction
IP68 Protection
Ranges between 0-100 mWG (see drop down)
+/- 0.5% Accuracy F.S
Vented Cable
4-20mA (2 wire) 11-28V DC
Application temp range: -10℃~70℃
Application temp range: -10℃~60℃(Ex ia)

  • Sensor Range
  • Cable Length
  • £245.00
  • £294.00 inc VAT


Description

ATEX Submersible Level Sensor


Stainless Steel Construction
IP68 Protection
Ranges between 0-100 mWG (see drop down)
+/- 0.5% Accuracy F.S
Vented Cable
4-20mA (2 wire) 11-28V DC
Application temp range: -10℃~70℃
Application temp range: -10℃~60℃(Ex ia)

Certificates:CE,ATEX,DNV,CCS,CNEX,RoHS

See Data Sheet for alternative sensor ranges, units, accuracy, voltage, materials etc
PE cable as standard, PUR cable is an option- please call

Housed within a stainless steel housing, this submersible level transmitter is the ideal product for reliable and repeatable hydrostatic level measurement. Every device is temperature compensated and calibrated, supplied with a traceable serial number and calibration certificate.



Specification

    ATEX Submersible Level Sensor


    Stainless Steel Construction
    IP68 Protection
    0-10 mWG
    +/- 0.5% Accuracy F.S
    Vented Cable
    4-20mA (2 wire) 11-28V DC
    Application temp range: -10℃~70℃
    Application temp range: -10℃~60℃(Ex ia)

    Certificates:CE,ATEX,DNV,CCS,CNEX,RoHS

    Construction Material

    Housing: stainless steel 1Cr18Ni9Ti O-ring: Viton Rubber, Casing: NBR

    Cable: φ7.5mm polyethylene cable,  Diaphragm: stainless steel 316L

    See Data Sheet for alternative sensor ranges, units, accuracy, voltage, sensor and cable materials etc

    Applications:

    Well Level Measurement
    Sewage Treament Works
    Canals & Rivers
    Sumps
    Open Water: Reservoirs & Lakes
    Irrigation Pond monitoring
    Below Ground Water Tanks

Downloads
