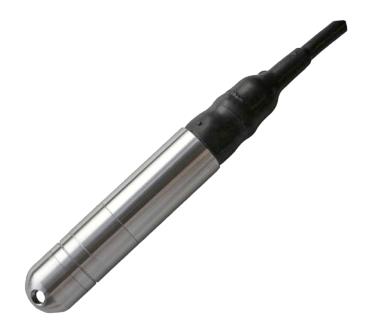

SDI-12 Submersible Hydrostatic level transmitter - Ceramic sensor :: S12C

SDI-12 Submersible Hydrostatic level transmitter - Ceramic sensor :: S12C

SKU: S12C
SDI-12 Hydrostatic Submersible level transmitter
Ceramic sensor :: Model S12C
10 - 100 mWG - See options
Level & Temperature Output as standard
Choice of materials.range, connections
  • Pressure Datum
  • Pressure Range
  • Electrical Connection
  • Housing Material
  • Cable Length (enter in mtrs)
  • Specials Code
  • £487.18
  • £584.62 inc VAT


Description


SDI-12 Hydrostatic Submersible level transmitter
Ceramic sensor :: Model S12C
Level & Temperature Output as standard
Choice of materials.range, connections

The SD-12 capable S12C hydrostatic level transmitter has a piezo-resisitive ceramic pressure sensor. The ceramic sensor is suitable for permanent submersion in fresh water, seawater, brackish and saline applications.The housing is made from stainless steel as standard with the option of high grade Duplex stainless steel or Marine Bronze materials.  Every device is temperature compensated and individulay calibrated and supplied with a traceable serial number and calibration certificate as standard.The onboard electronics incorporate a microcontroller based electronics circuit, this means that there are no adjusting pots and therefore the electronics are extremely stable.  Every device is compensated and calibrated to a thermal error band of <±0.1% over -5 to +45°C.

As well as the level measurement this device outputs the temperature value also.

Specification


    Specifications:


    •Minimum level range

    10mWG

    • Maximum level range

    100mWG

    • Reference

    Gauge, Sealed Gauge or Absolute

    • Output

    SDI-12 for level and temperature

    • Supply Voltage

    6 - 40V dc

    • Accuracy

    ≤±0.25% FSO BFSL, ≤±0.1% optional

    • Sensor Type

    Ceramic Piezo-resistive

    • Process Connection

    Self flushing nose cone, G1/4" when removed

    • Electrical Connection

    Vented cable and strain relief

    • IP Rating

    IP68 Fully submersible

    • Cable sheath material

    PVC, PUR, FEP, TPE

    • Diaphragm Material

    Ceramic Al2O3 96 %

    • Process Connection Material

    stainless steel 1.4404 (316L)

    • Temperature Range

    -20 to +60°C non freezing

    • Optional Extra's

    Cable sheath, cable length, housing material, calibrated range
