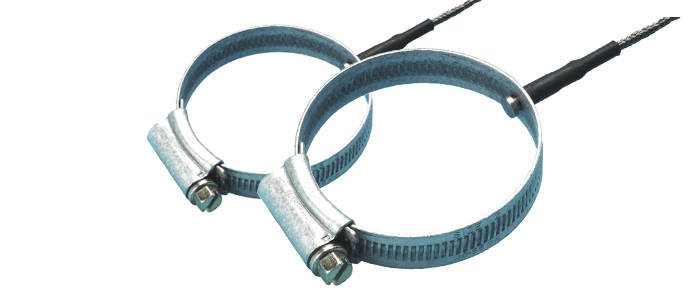

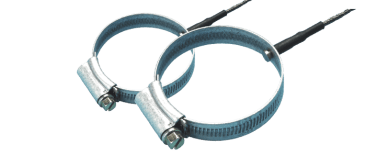

RTD Sensor (Pair) - PT100, Adjustable Band Clamp
SKU: PT100 ClampPair of PT100 sensors with adjustable band clamps
40mm to 400mm pipe diameter adjustment
5 Metre Stainless Steel Braided cable
40mm to 400mm pipe diameter adjustment
5 Metre Stainless Steel Braided cable
Description
Pair of PT100 sensors with adjustable band clamps
40mm to 400mm pipe diameter adjustment
40mm to 400mm pipe diameter adjustment
For clamp-on pipe temperature measurement.
• Sold in matched pairs
• 3 wire configuration.
• 5m long teflon coated cable with stainless steel braid
• Class A
Specification
PT 100 sensor with adjustable band 40mm to 400mm
For pipe temperature measurement.
(PT100 sensor is actually fitted to the adjustable band clamp so that it touches the pipe wall when tightened)
(PT100 sensor is actually fitted to the adjustable band clamp so that it touches the pipe wall when tightened)
• Sold in matched pairs
• 3 wire configuration
• Supplied with 5m long cable
• Class A
• Stainless Steel braided coated Teflon cable.
• Operating Range -75°C to +350°C
For accurate temperature measurement it is recommended that the sensor head is insulated during / following fitting.
Heat Sink compound can be applied or pipe lagging should be replaced to ensure that the surface temperature
of the pipe wall remains unaffected by ambient conditions.
of the pipe wall remains unaffected by ambient conditions.
**** Other sizes available ****
