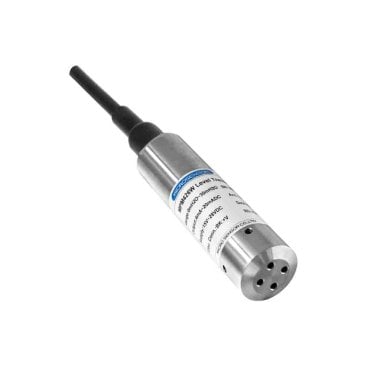

Submersible Level Sensor, Vented Cable, 4-20mA, 0-200 mWG (See ranges)
  • Submersible Level Sensor, Vented Cable, 4-20mA, 0-200 mWG (See ranges)
  • Submersible Level Sensor, Vented Cable, 4-20mA, 0-200 mWG (See ranges)

Submersible Level Sensor, Vented Cable, 4-20mA, 0-200 mWG (See ranges)

SKU: MPM426W

Submersible Level Sensor
0-200 mWG (See ranges)
Stainless Steel Construction/ Viton Seals
Accuracy(LIN.+HYS.+REP.): ± 0.25%FS (typ.)
Power Supply: 15-28V DC
Output Signal: 4-20mA / 1-5V / 0-10V DC
Cable Material: PVC or Polyurethane
Operation Temperature: -10 to +80℃
Housing Protection: IP68
Housing Material: SS 1Cr18Ni9Ti (304)
Diaphragm Material: SS 316L
Certificates: CE, CCS, CNEX, RoHS

  • Sensor Range
  • Cable Length
  • £198.00
  • £237.60 inc VAT


Description



Submersible Level Sensor
0-200 mWG (See ranges)

Stainless Steel Construction / Viton Seals - See options
Accuracy(LIN.+HYS.+REP.): ± 0.25%FS (typ.)
Power Supply: 15-28V DC
Output Signal: 4-20mA / 1-5V / 0-10V DC
Cable Material: PVC or Polyurethane
Operation Temperature: -10 to +80℃
Housing Protection: IP68
Housing Material: SS 1Cr18Ni9Ti (304)
Diaphragm Material: SS 316L

Certificates: CE, CCS, CNEX, RoHS


See Data Sheet for alternative sensor ranges, units, accuracy, voltage, materials etc
PE cable as standard, PUR cable is an option- please call

Housed within a stainless steel housing, this submersible level transmitter is the ideal product for reliable and repeatable hydrostatic level measurement. Every device is temperature compensated and calibrated, supplied with a traceable serial number and calibration certificate.


Specification

    Submersible Level Sensor
    0-200 mWG (See ranges)

    Stainless Steel Construction / Viton Seals - See options
    Accuracy(LIN.+HYS.+REP.): ± 0.25%FS (typ.)
    Power Supply: 15-28V DC
    Output Signal: 4-20mA / 1-5V / 0-10V DC
    Cable Material: PVC or Polyurethane
    Operation Temperature: -10 to +80℃
    Housing Protection: IP68
    Housing Material: SS 1Cr18Ni9Ti (304)
    Diaphragm Material: SS 316L

    Certificates: CE, CCS, CNEX, RoHS

    Construction Material

    Housing: stainless steel 1Cr18Ni9Ti O-ring: Viton Rubber, Casing: NBR

    Cable: φ7.5mm polyethylene cable,  Diaphragm: stainless steel 316L

    See Data Sheet for alternative sensor ranges, units, accuracy, voltage, sensor and cable materials etc

    Applications:

    Well Level Measurement
    Sewage Treament Works
    Canals & Rivers
    Sumps
    Open Water: Reservoirs & Lakes
    Irrigation Pond monitoring
    Below Ground Water Tanks
